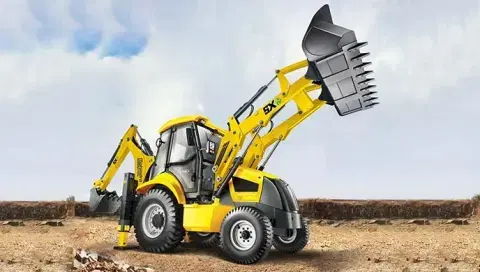

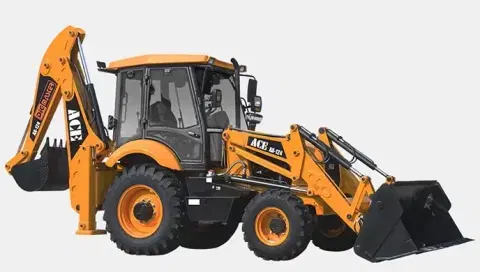

ACE AX-124 NS vs Mahindra Earthmaster SX IV Comparison
Hide Common Features
General
Sub Category Backhoe Loader Backhoe Loader Engine
Model KIRLOSKAR make (Bs III) VNEF 3.5 L Turbocharged Intercooled Displacement 3532 cc Gross Power 74 Hp 74 Hp Maximum Torque 400 NM 345 NM Compliant CEV BS-IV BS IV Hydraulic System
System Type Open Centre: 25 MPa Pump type Fixed displacement, Gear Pump, Pump Flow 118 IPM 117 L/Min System Relief Pressure 210 Bar Power train
Transmission make and model Four Speed 4 Forward, 4 Reverse Steering
Type Hydrostatic steering for reliability and better control Hydraulic Power Steering Loader General Dimension
Dump Height 890 mm 2708 mm Load Over Height 3300 mm 3253 mm Reach At Ground 1350 mm Max Reach At Full Height 1115 mm Dump Angle 45 ° Bucket Capacity Std 1 Cum 1.1 Cum Loader Bucket capacity 1 Cum 1.1 Cum Max. reach at full height-bucket dumped 1220 mm Bucket Breakout Force 6243 Kg Loader Arm Breakout Force 5594 Kg Max Pay Load 1900 Kg Backhoe Loader Dimension
Maxd Dig Depth 4250 mm 4959 mm Reach ground level to Swing Center 5794 mm Reach at full height to slew center 2774 mm Max Working Height 5470 mm 6043 mm Max Load Over Height 4131 mm Max. lift capacity 1900 Kg 3428 Kg Backhoe Bucket capacity 0.24 Cum 2.6 Cum Bucket Rotation 185 deg Overall Dimension & Weight
Max Operating Weight 7500 Kg 7584 Kg Wheelbase 2220 mm Minimum Ground Clearance 300 mm Width Over Bucket 2380 MM Track Width Rear 1600 MM Track Width Front 1840 MM Service Capacities
Engine Oil 11 Ltr 13.7 Ltr Rear Axle Front: Drive (In case of 4 WD and Steer Axle), Rear: Rigid axle with Carraro planetary drive. 17.10 Ltr transmission Oil Capacitysystem 17 Ltr 19.20 Ltr Fuel Tank 150 Ltr 140 Ltr Coolant 17 Ltr Hydraulic oil - System 80 Ltr 100 Ltr Axle
Rear Rigid axle with CARRARO planetary drive Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft. Front Drive & Steer Axle, centrally pivoted Centrally pivoted, non-driven unbalanced type axle, with total oscillation of 16C, with remote greasing facility for the main pin. Brakes
Brakes service Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control Hydraulically actuated, self adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation. Brakes Parking Mechanically actuated disc brakes for parking Hand operated mechanically actuated caliper type brake Tyre
Standard tyre front 9.00 - 16-16 PR standard tyre rear 16.90 - 28 - 12 PR Electrical System
Battery 12 V
