New Holland 3230 TX 2WD vs New Holland 3230 TX Super Comparison

  • New Holland 3230 TX 2WD

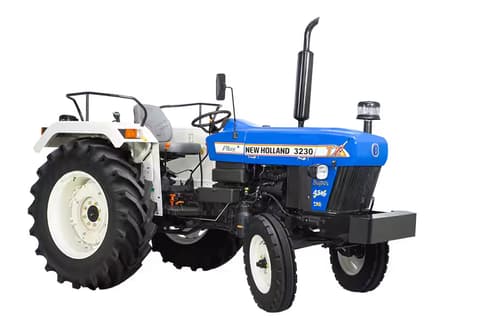

    New Holland 3230 TX 2WD

    5.0

    Price on Request*

    New Holland 3230 TX Super

    New Holland 3230 TX Super

    5.0

    Price on Request*

Hide Common Features

  • Engine

    No. Of Cylinder3 3
    Power45 45
    Capacity (cc)2500 CC 2500 CC
    Engine Rated RPM2000 RPM 2200 RPM
    Cooling Type Water Cooled
    Air FilterOil Bath with Pre-Cleaner Oil Bath Type with Pre-Cleaner
    Torque160.7 160.7
    Fuel Pump Inline

  • Power Take Off (PTO) & Steering

    PTO Power38 41
    PTO RPM540 & 540 E 540S, 540E

  • Transmission

    Clutch TypeSingle / Dual clutch Single Clutch/Double Clutch with IPTO lever*
    Gear Box8 Forward + 2/8 Reverse 8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
    Battery75 Ah 75 Ah
    Alternator35 Amp 35 Amp
    Forward Speed2.39-29.51 kmph 2.5 – 30.81 kmph
    Reverse Speed3.11-11.30 kmph 3.11 – 11.30 kmph

  • Hydraulics & Brakes

    BrakesOil immersed Brakes Oil Immersed Multi Disc Brake
    Tuning Radius with Brakes2800 MM 2800 MM
    Lifting Capacity1800 Kg 1800 Kg
    3 point LinkageHigh precision Automatic Depth and Draft Control, Mixed Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve.

  • Dimension & Capacity

    Fuel Tank Capacity46 litre 46 litre
    Total Weight1810 KG 1873 KG
    Wheel Base1920 MM 1900 MM
    Overall Length3415 MM 3330 MM
    Overall Width1700 MM 1790 MM
    Ground Clearance390 MM 395 MM

  • Wheels & Tyres

    Wheel Drive2 WD 2 WD
    Front Tyre Size6.0 X 16/ 6.50 X 16 6.00 x 16 /6.5 x 16
    Read Tyre Size13.6 X 28 13.6 X 28

  • Others

    Warranty6000 Hours / 6 Year 6000 Hours or 6 Year
    Accessories Tools, Bumper, Top Link, Ballast Weight, Canopy, Drawbar, Hitch
    Options Synchro Shuttle 8F+8R, Potato Special Axle 48", Remote Valve, Paddy Special - Double Metal Face Sealing
