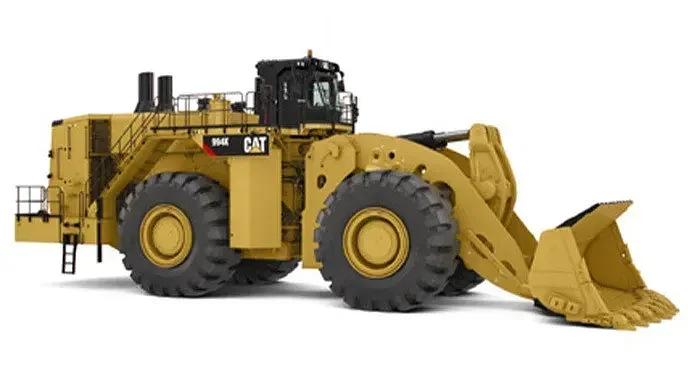

The CAT 994K is a robust wheeled loader designed for heavy construction and material handling, boasting an impressive 1739 horsepower engine and a substantial operating weight of 242,605 kg. Its fuel tank capacity of 3445 liters ensures prolonged operation, while the bucket capacity ranging from 19.1 to 24.5 m³ enhances efficiency across diverse applications. With a maximum forward speed of 21.9 km/h and a sophisticated hydraulic system, the CAT 994K delivers unmatched power and flexibility, making it an invaluable asset in demanding construction environments.
Read more
Price on Request*
*Prices are subjected to change
EMI ₹ 20,362 For 5 YearsEMI Calculator
Key Features of CAT 994K
Specifications of CAT 994K
General
Sub Category
Wheeled Loader
Engine
Model
Cat® 3516E
Max Power (hp)
1739 Hp
Max Torque (N-m)
11591 Nm
Bore (mm)
170 MM
Stroke (mm)
215 MM
Displacement (L)
78.1
Hydraulic System
Implement Maximum Flow
2047 L/min
SERVICE REFILL CAPACITIES
Fuel Tank
3445 L
Cooling System
520 L
Crankcase
288 L
Transmission
416 L
Hydraulic Tank
1022 L
Differentials and Final Drives Front
833 L
Differentials and Final Drives Rear
757 L
Dimensions
Rack Back @ Ground (deg)
39.7 mm
Height to Top of Hood (mm)
5682 mm
Height to Top of Exhaust Pipe (mm)
7067 mm
Height to Top of ROPS (mm)
7119 mm
Ground Clearance (mm)
6167 mm
B-Pin Height (mm)
8790 mm
Wheelbase (mm)
6800 mm
Rack Back @ Carry (deg)
47.7 mm
Weight
Tipping Load-Full Turn (kg)
120292 kg
Operating Weight (kg)
242605 kg
Transmission
Max. Forward Speed (kmph)
21.9 Kmph
Max. Backward Speed (kmph)
24 Kmph
Hydraulic Cycle Time
Total Cycle Time
23.5 seconds
CAT 994K Brochure
Download the brochure in just one click to view CAT 994K price, specs and features of all the variants.
CAT 994K images
CAT 994K User Reviews & Rating
This product has not been reviewed yet. Your opinion could help others
Your questions, answered
Can not find what you are looking for?
Ask our experts
What is the engine power of the CAT 994K?
The CAT 994K is equipped with an engine that generates up to 1739 horsepower.
What is the operating weight of the CAT 994K?
The operating weight of the CAT 994K is 242,605 kg.
What is the fuel tank capacity of the CAT 994K?
The fuel tank capacity of the CAT 994K is 3445 liters.
What is the bucket capacity range of the CAT 994K?
The bucket capacity of the CAT 994K ranges from 19.1 to 24.5 m³.
What are the maximum forward and backward speeds of the CAT 994K?
The CAT 994K has a maximum forward speed of 21.9 km/h and a maximum backward speed of 24 km/h.
What is the ground clearance of the CAT 994K?
The ground clearance of the CAT 994K is 6167 mm.
What is the total cycle time for the hydraulic system of the CAT 994K?
The total cycle time for the hydraulic system of the CAT 994K is 23.5 seconds.
