SANY SY35U

Key Features of SANY SY35U

Specifications of SANY SY35U

• General
  • Sub Category
    Excavator

• Engine
  • Displacement
    1.642 L
  • Model
    Yanmar 3TNV88
  • Engine Power
    28 Hp
  • Power ISO 14396
    0

• Hydraulic System
  • Main system Maximum Flow
    88 Lpm

• Weights Operating
  • Weight
    3780 Kg
  • Operating Weight
    3780 Kg

• SERVICE REFILL CAPACITIES
  • Tank Capacity
    50 L
  • weights hydraulic tank
    40 L
  • Hydraulic System
    0
  • Weights hydraulic system including tank
    40 L
  • Weights engine oil
    6.7 L

• Dimensions
  • Track Gauge
    1420 mm
  • Dimensions Transport Width
    1720 mm
  • Tail Swing Radius
    2475 mm
  • Counterweight Clearance
    590 mm
  • Ground Clearance
    295 mm
  • Track Length
    2155 mm

• WORKING RANGES & FORCES
  • Maximum Digging Depth
    3105 MM
  • Maximum vertical wall digging depth
    2700 mm
  • Lifting Capacity
    1767 Kg
  • Bucket Capacity
    0.12 Cum

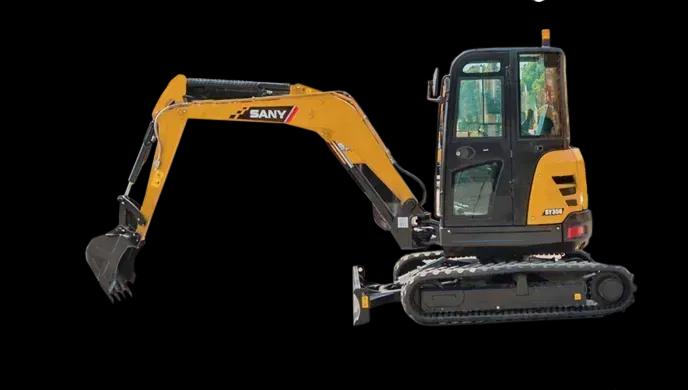

SANY SY35U images
