Eicher 480 4WD

Key Features of Eicher 480 4WD

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  2500 CC
• PTO Power

  38.25
• Fuel Tank Capacity

  45 litre
• Lifting Capacity

  1650 kg
• Wheel Drive

  4 WD

Specifications of Eicher 480 4WD

• Engine
  • Capacity (cc)
    2500 CC
  • Cooling Type
    SIMPSON WATER COOLED
  • Fuel Pump
    Inline
  • No. Of Cylinder
    3
  • Power
    45

• Power Take Off (PTO) & Steering
  • PTO RPM
    540 RPM @ 1944 ERPM
  • PTO Power
    38.25

• Transmission
  • Battery
    12 V 75 Ah
  • Forward Speed
    32.31 kmph
  • Clutch Type
    Dual Clutch
  • Gear Box
    8 Forward + 2 Reverse

• Hydraulics & Brakes
  • Lifting Capacity
    1650 kg
  • Brakes
    Multi disc oil immersed brakes
  • 3 point Linkage
    Draft, position and response control Links fitted with CAT-II (Combi Ball)

• Dimension & Capacity
  • Total Weight
    2190 KG
  • Wheel Base
    1965 MM
  • Fuel Tank Capacity
    45 litre
  • Overall Width
    1795 MM
  • Overall Length
    3745 MM

• Wheels & Tyres
  • Wheel Drive
    4 WD

• Others
  • Warranty
    2000 Hour / 2 Year
  • Accessories
    Tipping trailer kit, company fitted drawbar, top link

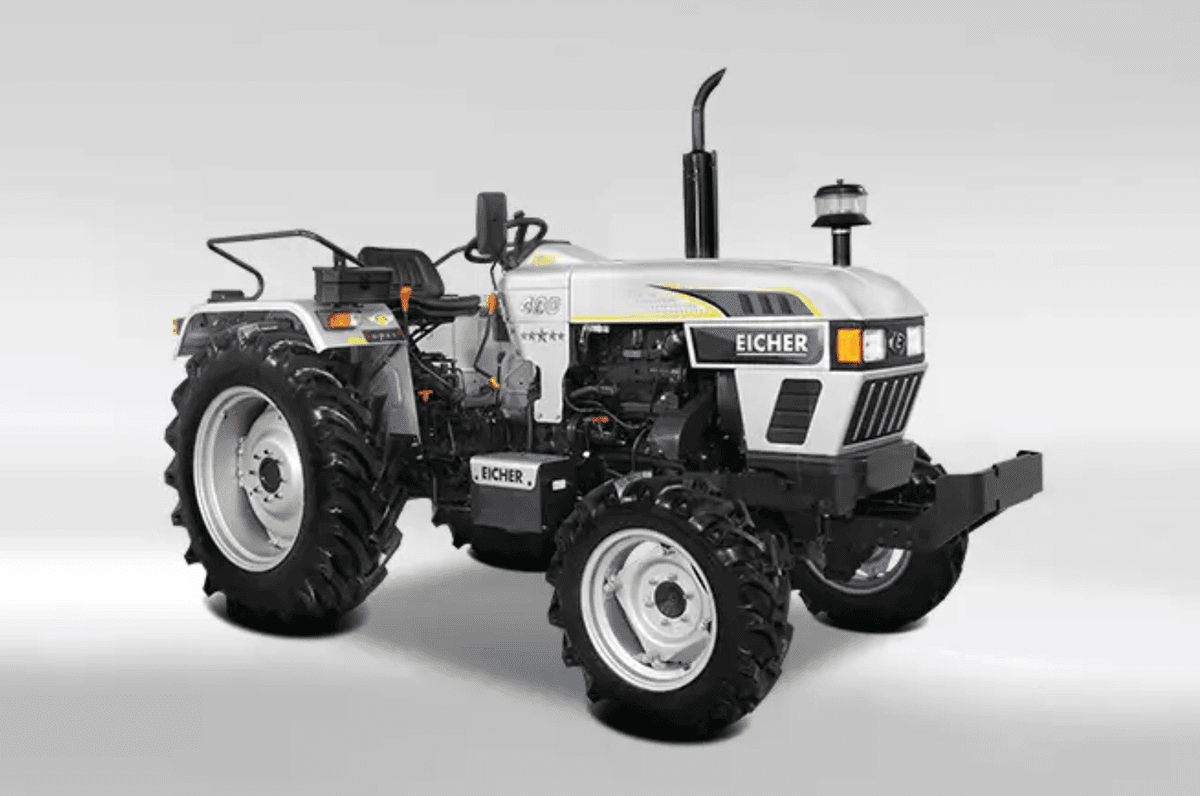

Eicher 480 4WD images
