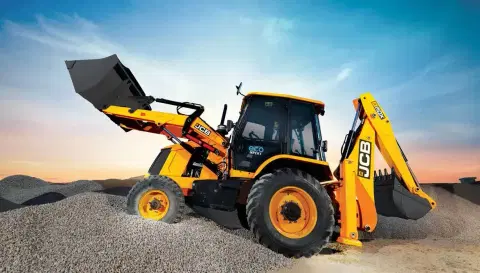

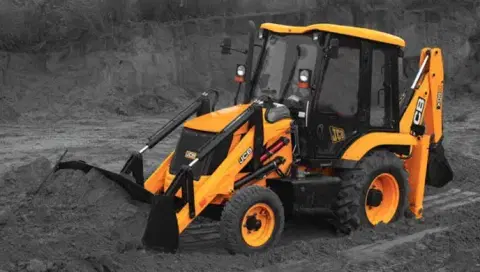

JCB 2DX vs JCB 3DX Comparison
Hide Common Features
General
Sub Category Backhoe Loader Backhoe Loader Engine
Model KOEL 4R810 JCB 448 Displacement 3.2 cc 4.8 cc Gross Power 36.4 kW (49 hp) 36 kW (49 hp) @ 2000 RPM Maximum Torque 203 NM 240 NM Compliant BSIII diesel engine Hydraulic System
Pump type Gear, double pump Pump Flow 70.4 lpm @ 2200 rpm 114 Lpm Power train
Transmission make and model The JCB. SS 700 svncbroshuttle transmission. It consistsof a 4-speed, fully Synchromesh, smooth shift gearbox with integral torque convertor and electrically operated reversing shuttle Steering
Type Full power, front wheel hydrostatic power steering with power track road and manual capability in the event of engine or hydraulic power failure. Power track steering System Pressure 1810 p.s.i (125 bar) 160 bar Turning Circle Diameter Otside Bucket 11600 mm Turning circle Diameter Outside Bucket Not Braked 8640 mm Loader General Dimension
Dump Height 2300 mm 2740 mm Load Over Height 2740 mm 3320 mm Hinge Pin Height 3000 mm 3540 mm Hinge Pin Forward Reach 370 mm 250 mm Reach At Ground 1300 mm 1420 mm Max Reach At Full Height 1150 mm Dump Angle 44 ° 38 ° Bucket Capacity Std 0.6 Cum Rollback At Ground 46 Degree 45 Degree Backhoe Loader Dimension
Maxd Dig Depth 3020 mm 4770 mm Reach ground level to Swing Center 5440 mm Reach Ground level to rear wheel center 5140 mm 6720 mm Reach at full height to slew center 3930 mm 2740 mm Max Working Height 3880 mm 5970 mm Max Load Over Height 2830 mm 4180 mm dipper Tear Out Force 3010 kgf Max. lift capacity 1490 Kg Backhoe Bucket capacity 0.18 Cum Bucket Rotation 185 deg Overall Dimension & Weight
Max Operating Weight 5220 Kg 7510 Kg Transport Length 5500 mm 5900 mm Wheelbase 2080 mm 2170 mm Minimum Ground Clearance 330 mm 310 mm Height to top of cabin 2070 mm 2870 mm Width Over Bucket 1912 MM 2350 MM Track Width Rear 1420 MM 1730 mm Track Width Front 1620 MM 1860 MM Service Capacities
Engine Oil 8 Ltr 15 Ltr Rear Axle 10 Ltr 20 Ltr Hydraulic Oil Replacement 92 Ltr transmission Oil Capacitysystem 16 Ltr 17.5 Ltr Fuel Tank 60 Ltr 128 Ltr Coolant 13.5 Ltr 16.5 Ltr Hydraulic oil - System 60 Ltr 110 Ltr Axle
Rear Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box. Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short prop shaft from gear box Front 2WD steer axle, centrally pivoted, with oscillation angle of 16°. Steer axle, centrally pivoted, with oscillation angle of 16 Brakes
Brakes service Hydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked togeth JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated Brakes Parking Hand operated, disc brakes on rear axle input disc. Tyre
Standard tyre front 7.5 x 16 -16 PR 9 x 16 - 16 PR standard tyre rear 12 x 24 - 20 PR, 14.9 x 24 - 12 PR 16.9 x 28 - 12 PR
