JCB 2DX

Key Features of JCB 2DX

Specifications of JCB 2DX

• General
  • Sub Category
    Backhoe Loader

• Engine
  • Model
    KOEL 4R810
  • Displacement
    3.2 cc
  • Gross Power
    36.4 kW (49 hp)
  • Maximum Torque
    203 NM
  • Compliant
    BSIII diesel engine

• Hydraulic System
  • Pump type
    Gear, double pump
  • Pump Flow
    70.4 lpm @ 2200 rpm

• Power train
  • Transmission make and model
    The JCB. SS 700 svncbroshuttle transmission. It consistsof a 4-speed, fully Synchromesh, smooth shift gearbox with integral torque convertor and electrically operated reversing shuttle

• Steering
  • Type
    Full power, front wheel hydrostatic power steering with power track road and manual capability in the event of engine or hydraulic power failure.
  • System Pressure
    1810 p.s.i (125 bar)

• Loader General Dimension
  • Dump Height
    2300 mm
  • Load Over Height
    2740 mm
  • Hinge Pin Height
    3000 mm
  • Hinge Pin Forward Reach
    370 mm
  • Reach At Ground
    1300 mm
  • Dump Angle
    44 °
  • Bucket Capacity Std
    0.6 Cum
  • Rollback At Ground
    46 Degree

• Backhoe Loader Dimension
  • Maxd Dig Depth
    3020 mm
  • Reach Ground level to rear wheel center
    5140 mm
  • Reach at full height to slew center
    3930 mm
  • Max Working Height
    3880 mm
  • Max Load Over Height
    2830 mm
  • Max. lift capacity
    1490 Kg
  • Backhoe Bucket capacity
    0.18 Cum

• Overall Dimension & Weight
  • Max Operating Weight
    5220 Kg
  • Transport Length
    5500 mm
  • Wheelbase
    2080 mm
  • Minimum Ground Clearance
    330 mm
  • Height to top of cabin
    2070 mm
  • Width Over Bucket
    1912 MM
  • Track Width Rear
    1420 MM
  • Track Width Front
    1620 MM

• Service Capacities
  • Engine Oil
    8 Ltr
  • Rear Axle
    10 Ltr
  • transmission Oil Capacitysystem
    16 Ltr
  • Fuel Tank
    60 Ltr
  • Coolant
    13.5 Ltr
  • Hydraulic oil - System
    60 Ltr

• Axle
  • Rear
    Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box.
  • Front
    2WD steer axle, centrally pivoted, with oscillation angle of 16°.

• Brakes
  • Brakes service
    Hydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked togeth

• Tyre
  • Standard tyre front
    7.5 x 16 -16 PR
  • standard tyre rear
    12 x 24 - 20 PR, 14.9 x 24 - 12 PR

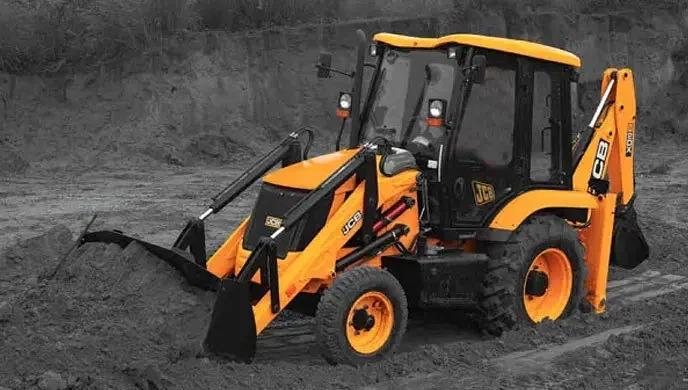

JCB 2DX images
