ACE ALN 300

Key Features of ACE ALN 300

Specifications of ACE ALN 300

• General
  • Sub Category
    Wheeled Loader

• Engine
  • Model
    Cummins 6BT5.9-C125 developing Direct Injection, turbo charged, water cooled Diesel engine
  • Max Power (hp)
    123 Hp
  • Max Torque (N-m)
    540 Nm
  • Bore (mm)
    0
  • Stroke (mm)
    0

• Hydraulic System
  • Implement Maximum Operating Pressure
    0
  • Implement Maximum Flow
    189 lpm
  • Steering System Pump Type
    Highly effective, Center articulated frame steering with co-axis flow for immediate response and system pressure 10 Mpa.

• SERVICE REFILL CAPACITIES
  • Fuel Tank
    168 L
  • Transmission
    32 Ltr
  • Hydraulic Tank
    120 L
  • Differentials and Final Drives Front
    4 Ltr
  • Differentials and Final Drives Rear
    8 Ltr
  • Cooling System
    25 Ltr

• Dimensions
  • Bucket Capacity
    1.7 Cum

• Weight
  • Operating Weight (kg)
    9970 kg

• Transmission
  • No. of Gears
    4 wheel drive, power shift, constant mesh transmission with 4 forward and 2 reverse speeds. String
  • Max. Forward Speed (kmph)
    40 Kmph
  • Max. Backward Speed (kmph)
    29.5 Kmph

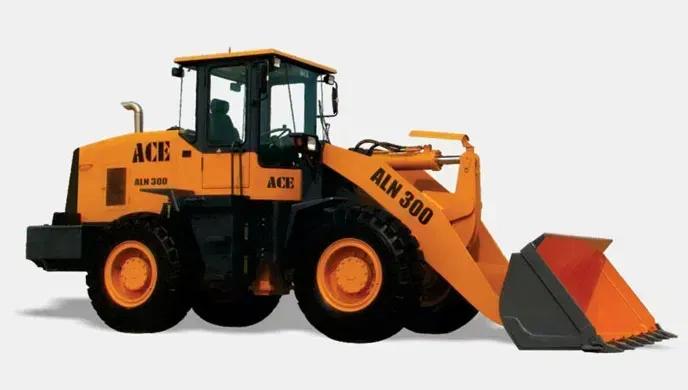

ACE ALN 300 images
