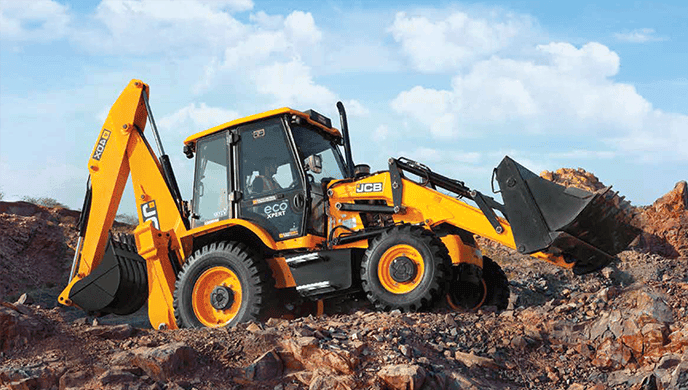

JCB 4DX

Key Features of JCB 4DX

Specifications of JCB 4DX

• General
  • Sub Category
    Backhoe Loader

• Engine
  • Model
    JCB 444
  • Displacement
    4.4 cc
  • Gross Power
    55kW (74hp) @ 2200 rpm
  • Maximum Torque
    400 NM
  • Compliant
    CEV Stage lV Engine

• Hydraulic System
  • Pump Flow
    154 Lpm

• Steering
  • Type
    Power track steering
  • System Pressure
    2320 p.s.i. (160 bar)
  • Turning Circle Diameter Otside Bucket
    10200 mm
  • Turning circle Diameter Outside Bucket Not Braked
    11700 mm

• Loader General Dimension
  • Dump Height
    2930 mm
  • Load Over Height
    3370 mm
  • Hinge Pin Height
    3640 mm
  • Reach At Ground
    1600 mm
  • Max Reach At Full Height
    1240 mm
  • Dump Angle
    41 °
  • Bucket Capacity Std
    1.2 Cum
  • Rollback At Ground
    43 Degree

• Backhoe Loader Dimension
  • Maxd Dig Depth
    5360 mm
  • Reach ground level to Swing Center
    6380 mm
  • Reach Ground level to rear wheel center
    7570 mm
  • Reach at full height to slew center
    2180 mm
  • Max Working Height
    6250 mm
  • Max Load Over Height
    3960 mm
  • Bucket Breakout Force
    6716
  • Bucket Rotation
    185 deg

• Overall Dimension & Weight
  • Max Operating Weight
    8470 Kg
  • Transport Length
    6350 mm
  • Wheelbase
    2340 mm
  • Minimum Ground Clearance
    280 mm
  • Height to top of cabin
    2870 mm
  • Width Over Bucket
    2440 MM
  • Track Width Rear
    1730 mm
  • Track Width Front
    1910 MM

• Service Capacities
  • Engine Oil
    15 Ltr
  • Rear Axle
    20 Ltr
  • transmission Oil Capacitysystem
    17.5 Ltr
  • Fuel Tank
    128 Ltr
  • Coolant
    20.5 Ltr
  • Hydraulic oil - System
    115 Ltr

• Axle
  • Rear
    Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box
  • Front
    Steer axle, centrally pivoted, with oscillation angle of 16

• Brakes
  • Brakes service
    JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, requiring no maintenance.Through indep
  • Brakes Parking
    Hand operated, disc brakes on rear axle input disc.

• Tyre
  • Standard tyre front
    9 x16 -1 6PR
  • standard tyre rear
    16.9 x 28 -12PR
