New Holland 3230 TX Super 4WD vs New Holland 4510 Comparison

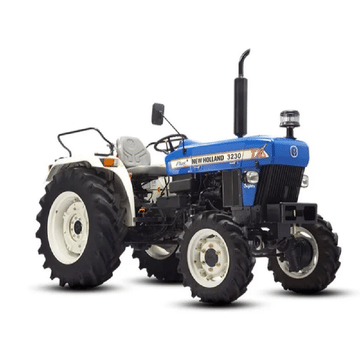

  • New Holland 3230 TX Super 4WD

    New Holland 3230 TX Super 4WD

    5.0

    Price on Request*

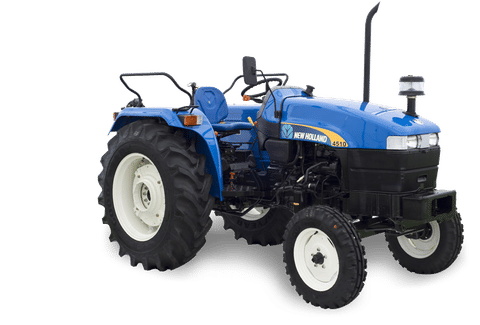

    New Holland 4510

    New Holland 4510

    5.0

    Price on Request*

Hide Common Features

  • Engine

    No. Of Cylinder3 3
    Power45 42
    Capacity (cc)2500 CC 2500 CC
    Engine Rated RPM2200 RPM 2000 RPM
    Cooling Type Water Cooled
    Air FilterOil Bath Type with Pre-Cleaner Oil bath type
    Fuel Pump Inline

  • Power Take Off (PTO) & Steering

    PTO Power41 37.5
    PTO RPMEptraa PTO, Reverse PTO & GSPTO 540

  • Transmission

    Clutch TypeDouble Clutch with IPTO lever* Single / Double clutch
    Gear Box8 Forward+2 Reverse / 8 Forward+8 Reverse 8 Forward + 2 Reverse
    Battery75Ah 12 V 75 Ah
    Alternator35 Amp 14 V 23 A
    Forward Speed2.5-30.81 kmph 2.87 x 31.87 kmph
    Reverse Speed2.39-29.51 kmph 3.52 x 12.79 kmph

  • Hydraulics & Brakes

    BrakesOil Immersed Multi Disc Brake Oil Immersed Multi Disc Brake
    Tuning Radius with Brakes 2930 MM
    Lifting Capacity1800 Kg 1500 Kg
    3 point Linkage Draft Control, Position Control, Top Link Sensing, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve.

  • Dimension & Capacity

    Fuel Tank Capacity46 litre 62 litre
    Total Weight2150 KG 1810 KG
    Wheel Base2000 MM 1920 MM
    Overall Length3370 MM 3415 MM
    Overall Width1790 MM 1700 MM
    Ground Clearance360 MM 380 MM

  • Wheels & Tyres

    Wheel Drive4 WD 2 WD
    Front Tyre Size 6.00 x 16
    Read Tyre Size 13.6 X 28

  • Others

    Warranty6000 Hours / 6 Year 6000 Hours or 6 Year
    Accessories TOOLS, BUMPER, TOP LINK, CANOPY, HITCH, DRAWBAR
    Options HI-Lug Tyre
