New Holland 4510

Key Features of New Holland 4510

• No. Of Cylinder

  3
• Power

  42
• Capacity (cc)

  2500 CC
• PTO Power

  37.5
• Fuel Tank Capacity

  62 litre
• Lifting Capacity

  1500 Kg
• Wheel Drive

  2 WD

Specifications of New Holland 4510

• Engine
  • No. Of Cylinder
    3
  • Power
    42
  • Capacity (cc)
    2500 CC
  • Engine Rated RPM
    2000 RPM
  • Cooling Type
    Water Cooled
  • Air Filter
    Oil bath type
  • Fuel Pump
    Inline

• Power Take Off (PTO) & Steering
  • PTO Power
    37.5
  • PTO RPM
    540

• Transmission
  • Clutch Type
    Single / Double clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    12 V 75 Ah
  • Alternator
    14 V 23 A
  • Forward Speed
    2.87 x 31.87 kmph
  • Reverse Speed
    3.52 x 12.79 kmph

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Multi Disc Brake
  • Tuning Radius with Brakes
    2930 MM
  • Lifting Capacity
    1500 Kg
  • 3 point Linkage
    Draft Control, Position Control, Top Link Sensing, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve.

• Dimension & Capacity
  • Fuel Tank Capacity
    62 litre
  • Total Weight
    1810 KG
  • Wheel Base
    1920 MM
  • Overall Length
    3415 MM
  • Overall Width
    1700 MM
  • Ground Clearance
    380 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28

• Others
  • Warranty
    6000 Hours or 6 Year
  • Accessories
    TOOLS, BUMPER, TOP LINK, CANOPY, HITCH, DRAWBAR

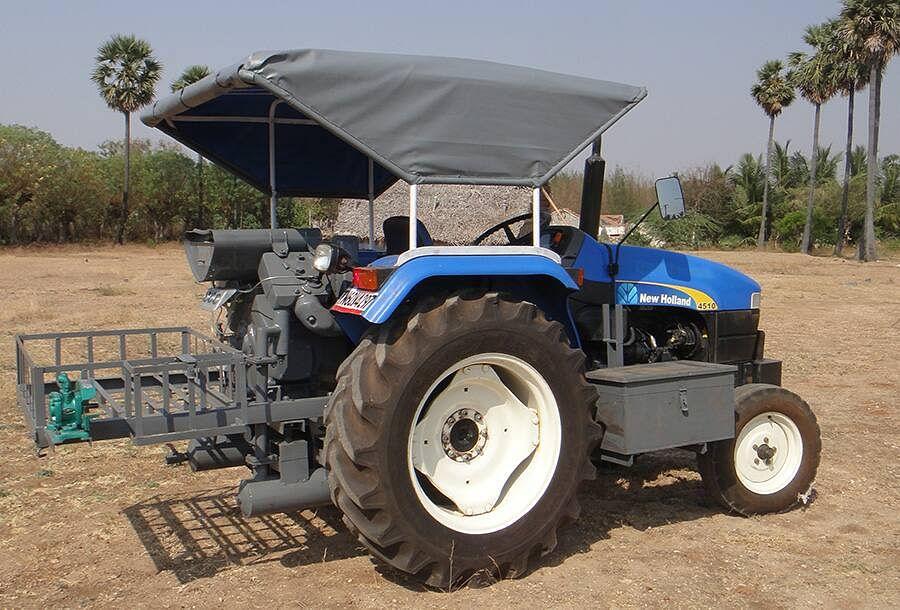

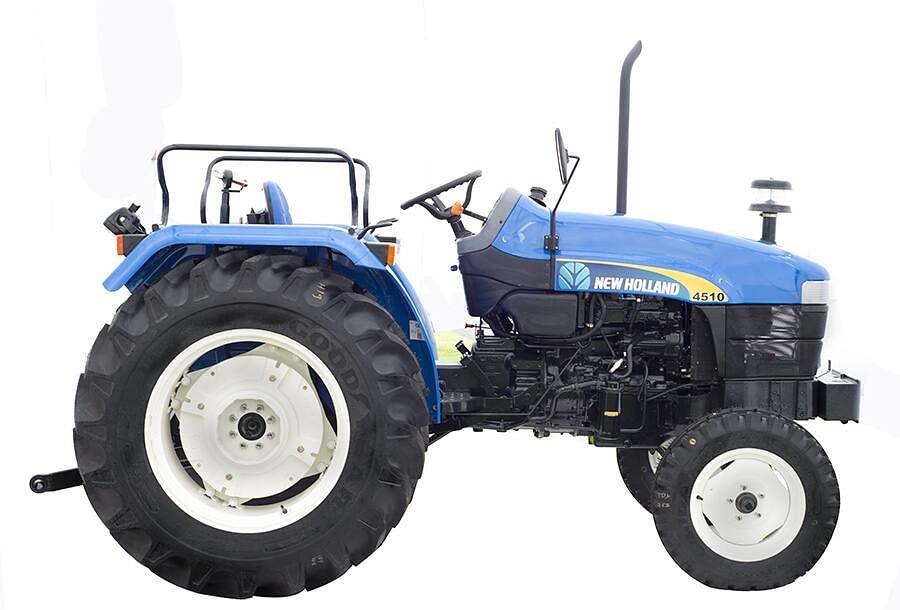

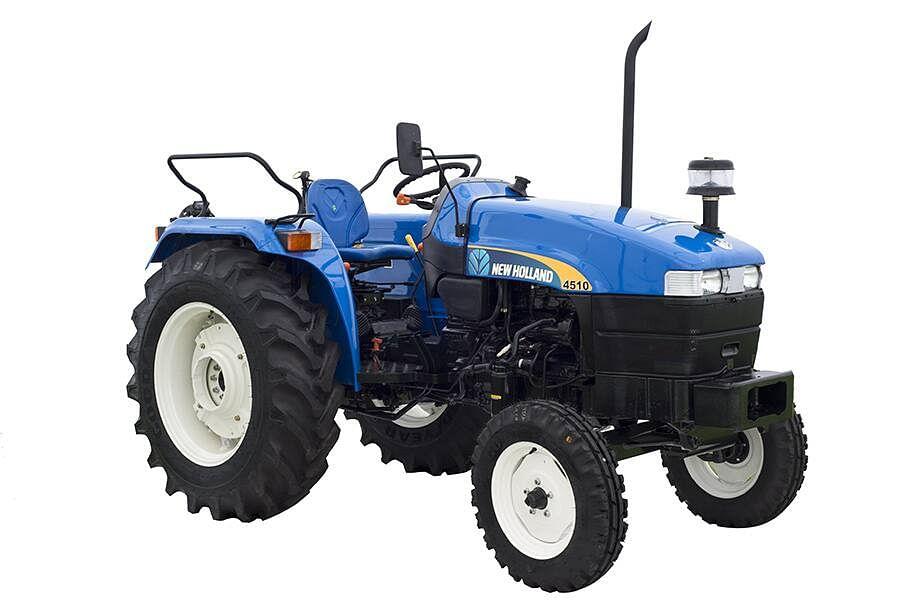

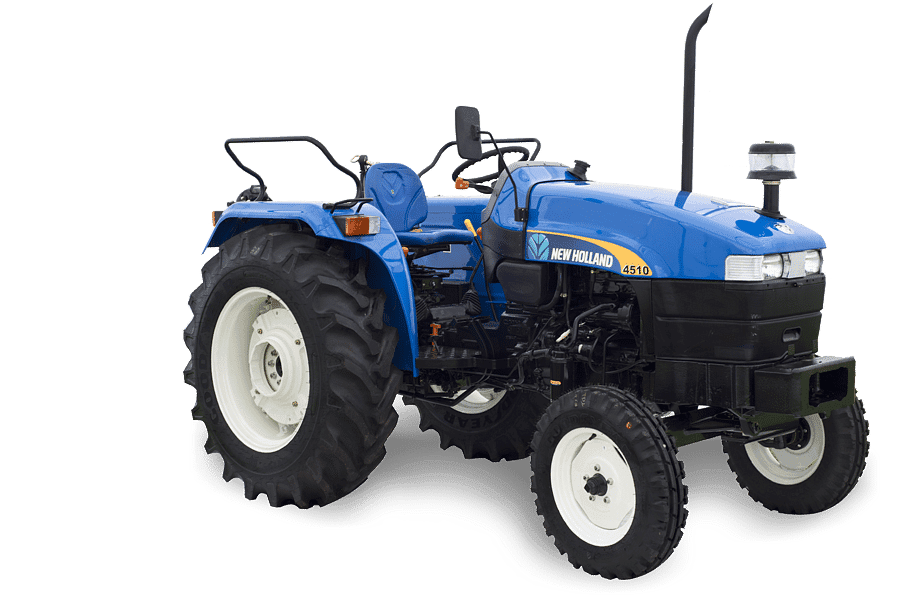

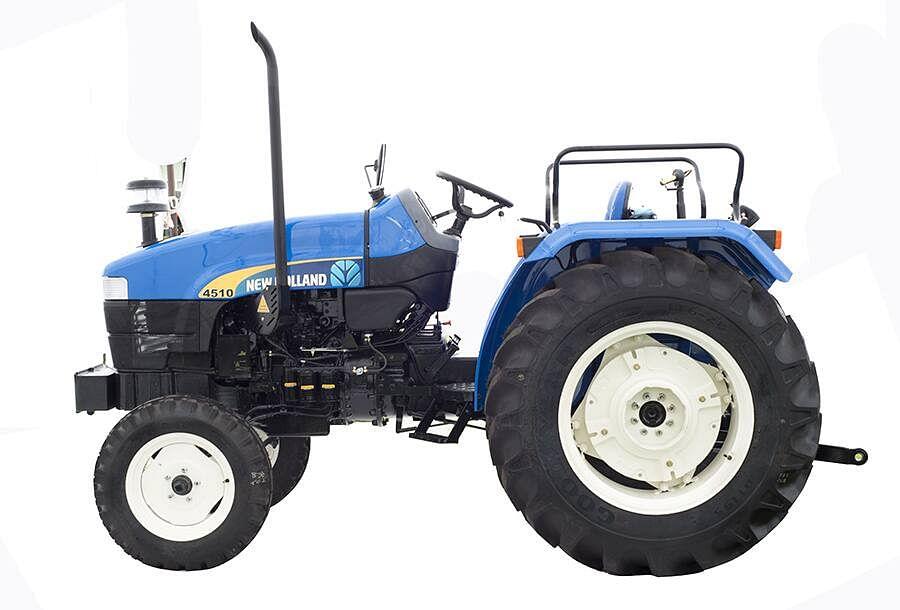

New Holland 4510 images
