Mahindra 475 DI

Key Features of Mahindra 475 DI

• No. Of Cylinder

  4
• Power

  42
• Capacity (cc)

  2730 CC
• PTO Power

  38
• Fuel Tank Capacity

  48 litre
• Lifting Capacity

  1500 Kg
• Wheel Drive

  2 WD

Specifications of Mahindra 475 DI

• Engine
  • No. Of Cylinder
    4
  • Power
    42
  • Cooling Type
    Water Cooled
  • Fuel Pump
    Inline
  • Air Filter
    Dry Type
  • Engine Rated RPM
    1900 RPM
  • Capacity (cc)
    2730 CC

• Power Take Off (PTO) & Steering
  • PTO Power
    38
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Alternator
    12 V 36 A
  • Battery
    12 V 75 Ah
  • Clutch Type
    Dry Type Single / Dual (Optional)
  • Forward Speed
    2.74 - 30.48 kmph
  • Reverse Speed
    4.16 - 12.42 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    1500 Kg
  • 3 point Linkage
    High precision
  • Brakes
    Dry Disc Brakes / Oil Immersed
  • Tuning Radius with Brakes
    3500 MM

• Dimension & Capacity
  • Total Weight
    1950 KG
  • Overall Length
    3260 MM
  • Wheel Base
    1945 MM
  • Ground Clearance
    350 MM
  • Fuel Tank Capacity
    48 litre
  • Overall Width
    1625 MM

• Wheels & Tyres
  • Read Tyre Size
    12.4 x 28 / 13.6 x 28
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD

• Others
  • Warranty
    2000 Hours Or 2 Year
  • Accessories
    Top Link, Tools

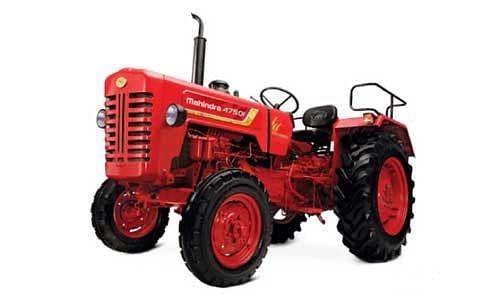

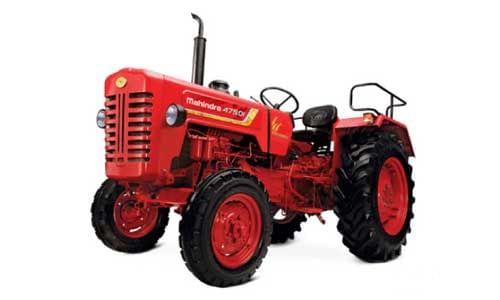

Mahindra 475 DI images
