Eicher 380

Key Features of Eicher 380

• No. Of Cylinder

  3
• Power

  40
• Capacity (cc)

  2500 CC
• PTO Power

  34
• Fuel Tank Capacity

  45 litre
• Lifting Capacity

  1650 kg
• Wheel Drive

  2 WD

Specifications of Eicher 380

• Engine
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Capacity (cc)
    2500 CC
  • Fuel Pump
    Inline
  • Power
    40
  • Air Filter
    Oil bath type
  • Engine Rated RPM
    2150 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    34
  • PTO RPM
    540

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Alternator
    12 V 36 A
  • Battery
    12 V 75 Ah
  • Clutch Type
    Single/Dual clutch
  • Forward Speed
    30.8 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    Draft Position And Response Control Links
  • Tuning Radius with Brakes
    3250 MM
  • Lifting Capacity
    1650 kg
  • Brakes
    Dry Disc / Oil Immersed Brakes (optional)

• Dimension & Capacity
  • Total Weight
    1930 KG
  • Overall Width
    1700 MM
  • Wheel Base
    1910 MM
  • Fuel Tank Capacity
    45 litre
  • Ground Clearance
    390 MM
  • Overall Length
    3475 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD
  • Read Tyre Size
    12.4 x 28 / 13.6 x 28

• Others
  • Warranty
    2000 Hour or 2 Year
  • Accessories
    TOOLS, BUMPER, TOP LINK

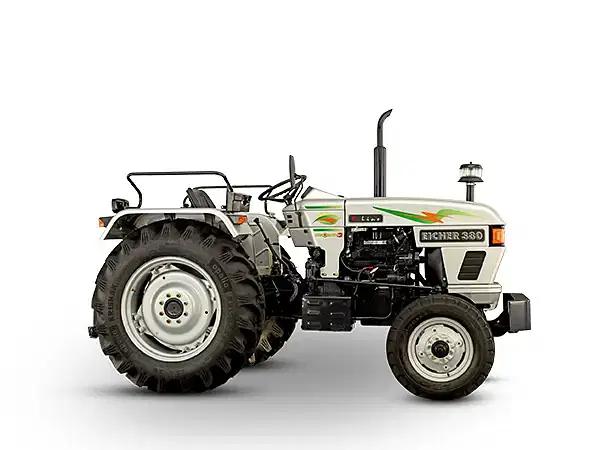

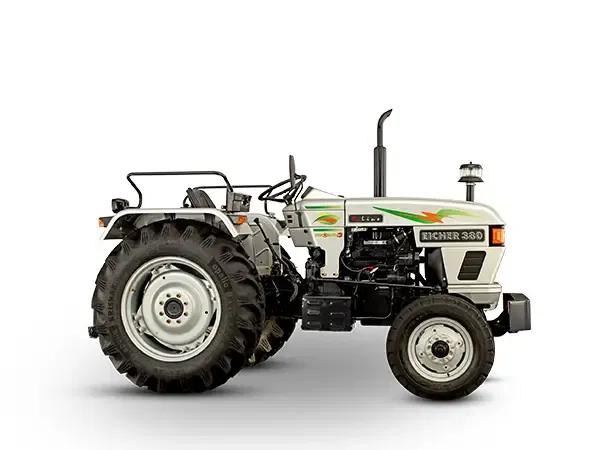

Eicher 380 images
