John Deere 5050 D

Key Features of John Deere 5050 D

• No. Of Cylinder

  3
• Power

  50
• PTO Power

  42.5
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1600 kg
• Wheel Drive

  2 WD

Specifications of John Deere 5050 D

• Engine
  • No. Of Cylinder
    3
  • Power
    50
  • Engine Rated RPM
    2100 RPM
  • Cooling Type
    Coolant Cooled With Overflow Reservoir
  • Air Filter
    Dry Type, Dual Element

• Power Take Off (PTO) & Steering
  • PTO Power
    42.5
  • PTO RPM
    540@1600/2100 ERPM

• Transmission
  • Clutch Type
    Single / Dual clutch
  • Gear Box
    8 Forward + 4 Reverse/ 12 Forward + 4 Reverse
  • Battery
    12 V 88 Ah
  • Alternator
    12 V 40 Amp
  • Forward Speed
    2.97 - 32.44 kmph
  • Reverse Speed
    3.89 - 14.10 kmph

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brakes
  • Tuning Radius with Brakes
    2900 MM
  • Lifting Capacity
    1600 kg
  • 3 point Linkage
    Automatic Depth And Draft Control

• Dimension & Capacity
  • Fuel Tank Capacity
    60 litre
  • Total Weight
    1870 KG
  • Wheel Base
    1970 MM
  • Overall Length
    3430 MM
  • Overall Width
    1830 MM
  • Ground Clearance
    430 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 x 16 / 7.50 x 16
  • Read Tyre Size
    14.9 x 28 / 16.9 x 28

• Others
  • Warranty
    5000 Hours/ 5 Year
  • Accessories
    Ballast Weight, Canopy, Drawbar, Hitch

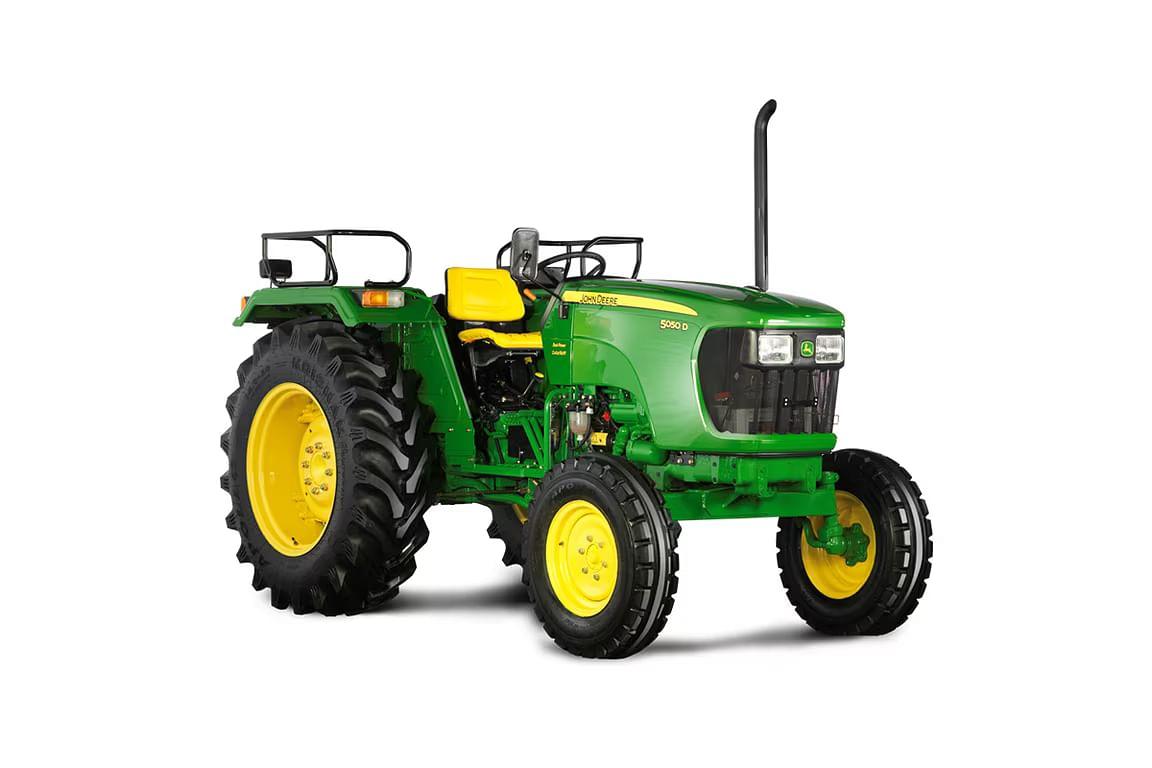

John Deere 5050 D images
