Eicher 485

Key Features of Eicher 485

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  2945 CC
• PTO Power

  38.3
• Fuel Tank Capacity

  45 litre
• Lifting Capacity

  1650 kg
• Wheel Drive

  2 WD

Specifications of Eicher 485

• Engine
  • Cooling Type
    Air Cooled
  • Air Filter
    Oil bath type
  • No. Of Cylinder
    3
  • Fuel Pump
    Inline
  • Power
    45
  • Engine Rated RPM
    2150 RPM
  • Capacity (cc)
    2945 CC

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    38.3

• Transmission
  • Battery
    12 V 75 Ah
  • Alternator
    12 V 36 A
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single/Dual clutch
  • Forward Speed
    32.3 kmph

• Hydraulics & Brakes
  • Tuning Radius with Brakes
    3200 MM
  • 3 point Linkage
    Draft Position And Response Control Links
  • Brakes
    Dry Disc Brakes / Oil Immersed Brakes (OPTIONAL)
  • Lifting Capacity
    1650 kg

• Dimension & Capacity
  • Total Weight
    2140 KG
  • Ground Clearance
    385 MM
  • Overall Width
    1785 MM
  • Fuel Tank Capacity
    45 litre
  • Wheel Base
    2005 MM
  • Overall Length
    3690 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Read Tyre Size
    13.6 x 28 / 14.9 x 28
  • Front Tyre Size
    6.00 x 16

• Others
  • Warranty
    2 Year
  • Accessories
    TOOLS, BUMPER, TOP LINK

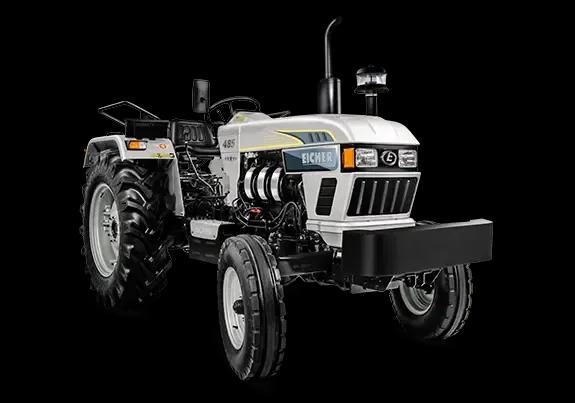

Eicher 485 images
