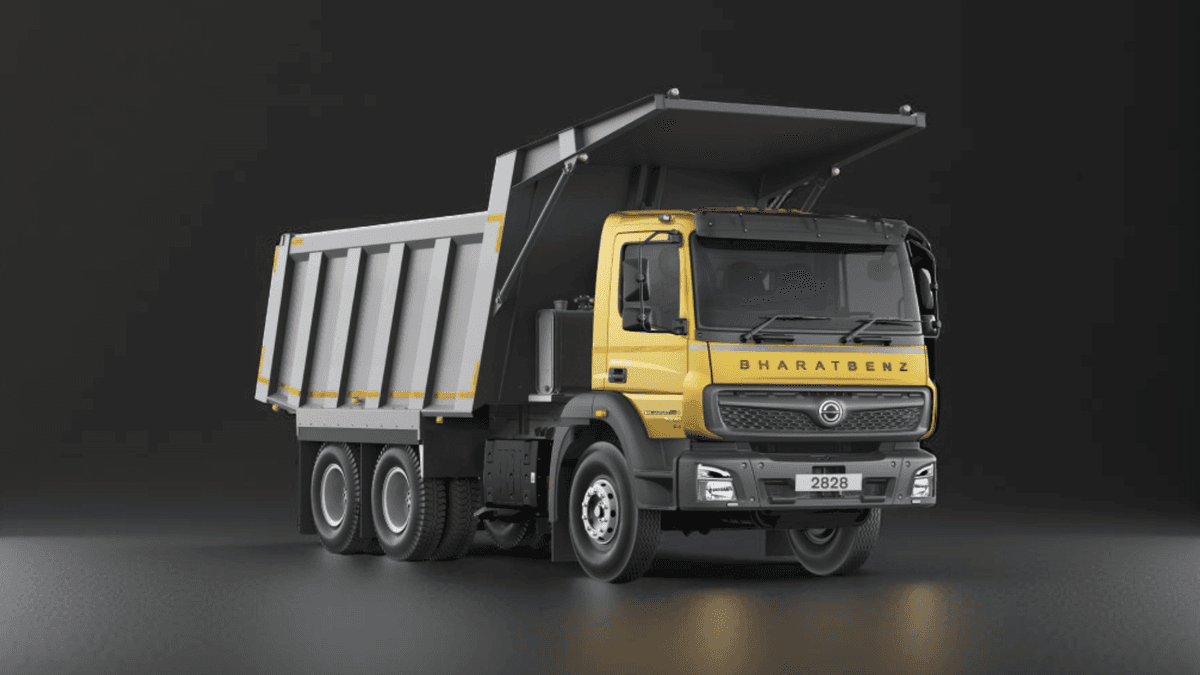

BharatBenz 2828CH

Key Features of BharatBenz 2828CH

Specifications of BharatBenz 2828CH

• Performance
  • Fuel Tank (Litres)
    215/200 Ltr
  • Engine
    OM 926
  • Fuel Type
    Diesel
  • Emission Norms
    BS-VI-OBD-2
  • Max Torque
    1100 Nm
  • Mileage
    2.75-3.75 kmpl
  • Max Speed (km/h)
    60
  • Engine Cylinders
    6
  • Turning Radius (mm)
    16200
  • Battery Capacity
    120Ah
  • Product Type
    L5N (High Speed Goods Carrier)
  • Carrier Type
    Goods Carrier
  • Max Power
    210 kW
  • Engine Displacement (cc)
    7200 cc
  • Mileage City
    2-3
  • Gradeability (%)
    60.8 %

• Dimension
  • Overall Length (mm)
    7185
  • Overall Width (mm)
    2490
  • Overall Height (mm)
    2995
  • Ground Clearance (mm)
    331
  • Wheelbase (mm)
    4275
  • Axle Configuration
    6x4
  • Size (Cu. M)
    16

• Transmission & Loading Capacity
  • Transmission
    Manual
  • Payload (Kgs)
    16100 Kgs
  • GVW / GCW (Kgs)
    27600 kg
  • Kerb Weight (Kgs)
    11500
  • Gear Box
    G 131, 9F+1R, Mechanical, Synchromesh Gears
  • Power Steering
    Yes
  • Clutch
    430, 4.5 mm Single dry plate hydraulic control

• Features
  • Steering
    Hydraulic Power assisted
  • A/C
    No
  • Cruise Control
    No
  • Navigation System
    No
  • Telematics
    Yes
  • Tiltable Steering
    Tilt and telescopic
  • Arm-rest
    No
  • Seat Type
    Standard
  • Driver Information Display
    Yes
  • Adjustable Driver Seat
    6 way adjustable
  • Seating Capacity
    D+1
  • Tubeless Tyres
    No
  • Seat Belts
    Yes
  • Hill Hold
    No

• Brakes & Suspension
  • Brakes
    Pneumatic foot operated dual line brakes
  • Front Suspension
    Parabolic type leaf spring with 2 hydraulic shock absorbers
  • Rear Suspension
    Bogie Suspension
  • ABS
    Yes
  • Parking Brakes
    Pneumatically operated hand control valve
  • Front Axle
    IF 7.0
  • Rear Axle
    MT 610 Hub Reduction

• Body Option & Cabin Type
  • Chassis Type
    Chassis with Cabin
  • Body Option
    Box body
  • Cabin Type
    Day Cabin
  • Tiltable Cabin
    Yes

• Tyres
  • Number of Tyre
    10
  • Rear Tyre
    11x20-Mining
  • Front Tyre
    11x20-Mining

• Others
  • Chassis
    Yes
  • Battery(Volts)
    24V
  • Fog Lights
    No
