BharatBenz 4228R

No reviews yet

Write a Review

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of BharatBenz 4228R

Engine
OM926
Power
280
GVW
42000 KG
Payload Capacity
29890 KG

Specifications of BharatBenz 4228R

Performance
- Power
  280
- Max Speed
  80 KMPH
- Engine Norm
  BS-6 Phase 2
- GVW
  42000 KG
- Max Torque
  1100 Nm
- Engine
  OM926
- Engine Cylinders
  6
- Fuel Tank
  310 Ltrs.
- Gradeability
  29 (%)
- Payload Capacity
  29890 KG
Dimensions
- Wheelbase
  6575 MM
- Minimum Turning Radius
  24000 MM
- Width
  2490 MM
- Ground Clearance
  222 MM
- Height
  2939 MM
- Load Body Size
  28 ft
- Length
  11790 MM
Brakes Suspension
- Brakes
  Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brakes
  Pneumatically Operated Hand Control Valve
- Front Axle
  IF 7.0
- Abs
  Yes
- Rear Axle
  RA1 IR440-11 & RA2 IT-10
- Front Suspension
  Parabolic, Type Leaf Spring with 2 Hydraulic Shock Absorbers with anti -roll bar
- Rear Suspension
  Balancer type semi-elliptical leaf spring
Clutch Transmission
- Gearbox
  G 131, 9 Forward + 1 Reverse
- Steering
  Power Steering
- Power Steering
  Yes
- Clutch
  Single Dry Plate,Hydraulic Control 395mm
- Transmission
  Mechanical, Synchromesh
Body Cabin
- Body Option
  Deck Body
- Cabin Type
  Mid Cabin
- Tiltable Cabin
  Yes
- Seating Capacity
  Driver + 2 Passenger
- Tiltable Steering
  Yes
- Chassis Type
  Chassis with Cabin
- Arm Rest
  No
Tyre
- Tubeless Tyre
  Yes
- Front Tyre
  Radial Tyres (Rib & Lug Pattern - 295/90R20) Tubeless Tyres (All Wheel Pattern - 295/80R22.5)
- Rear Tyre
  Radial Tyres (Rib & Lug Pattern - 295/90R20) Tubeless Tyres (All Wheel Pattern - 295/80R22.5)
Others
- Battery
  24V
- Cruise Control
  Yes
- Driver Info Display
  Yes
- Adjustable Driver Seat
  Yes
- Navigation System
  No
- Telematics
  No
- Air Condition
  No
- Seat Belts
  Yes
- Seat Type
  Standard
- Hill Hold
  No
- Fog Lights
  No

BharatBenz 4228R Brochure

Download the brochure in just one click to view BharatBenz 4228R price, specs and features of all the variants.

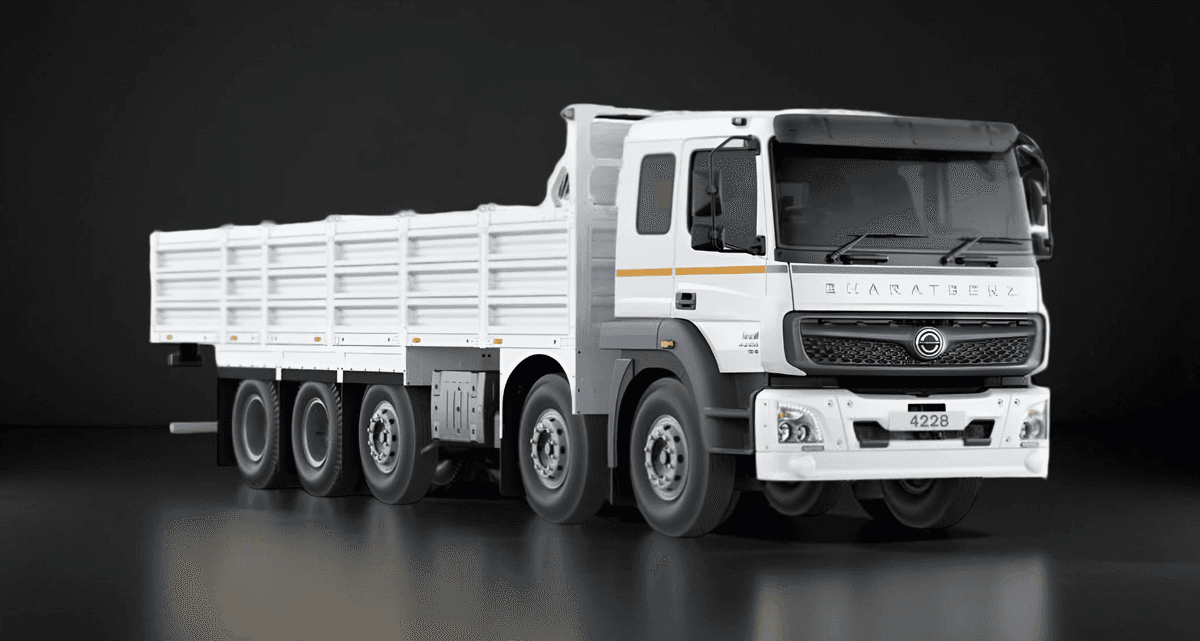

BharatBenz 4228R images
