Tata 912 LPK

Key Features of Tata 912 LPK

• Engine

  3.3NG BS6 Engine In line water cooled direct Injection diesel engine with intercooler
• Power

  125
• GVW

  9600 KG

Specifications of Tata 912 LPK

• Performance
  • Max Speed
    80 KMPH
  • Gradeability
    40 (%)
  • Fuel Tank
    90 Ltrs.
  • Engine Norm
    BS-6 Phase 2
  • Power
    125
  • Engine Cylinders
    4
  • Max Torque
    390 Nm
  • GVW
    9600 KG
  • Engine
    3.3NG BS6 Engine In line water cooled direct Injection diesel engine with intercooler

• Dimensions
  • Length
    3573 MM
  • Width
    2134 MM
  • Wheelbase
    2775 MM
  • Minimum Turning Radius
    5100 MM
  • Height
    670 MM
  • Load Body Size
    5 CuM- UBT
  • Ground Clearance
    211 MM

• Brakes Suspension
  • Front Suspension
    Semi elliptical Leaf spring
  • Rear Suspension
    Semi elliptical Leaf spring
  • Parking Brakes
    Yes
  • Abs
    Yes
  • Brakes
    Dual Circuit Full Air S Cam Brakes With Auto Slack Adjuster (Drum - Drum)
  • Rear Axle
    TATA RA 1068HD Fully Floating Benjo Axle (RAR - 4.857)

• Clutch Transmission
  • Transmission
    Synchromesh
  • Power Steering
    Yes
  • Gearbox
    GBS-40 5 Forward + 1 Reverse(with Cable shift)
  • Steering
    Tilt & Telescopic Power Steering (Dia - 426)
  • Clutch
    Single Plate Dry Friction Type, 310 mm

• Body Cabin
  • Body Option
    Deck Body
  • Tiltable Steering
    Yes
  • Cabin Type
    Day Cabin
  • Arm Rest
    No
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    8.25 x 16 -16
  • Rear Tyre
    8.25 x 16 -16

• Others
  • Battery
    12 V - 100 Ah
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes

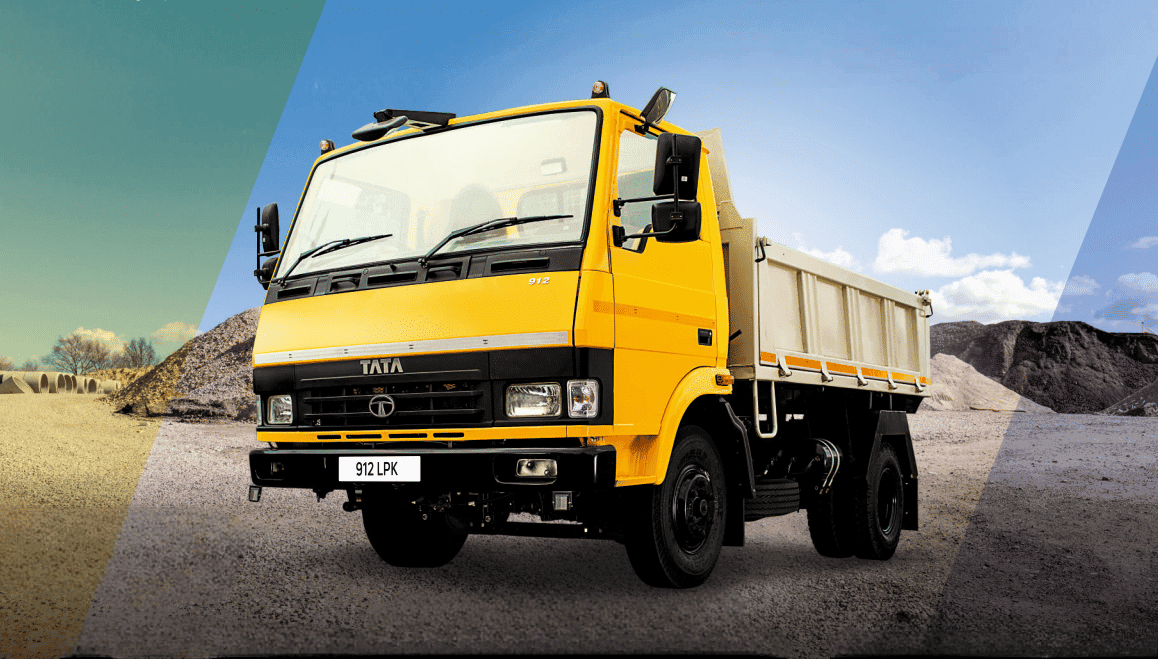

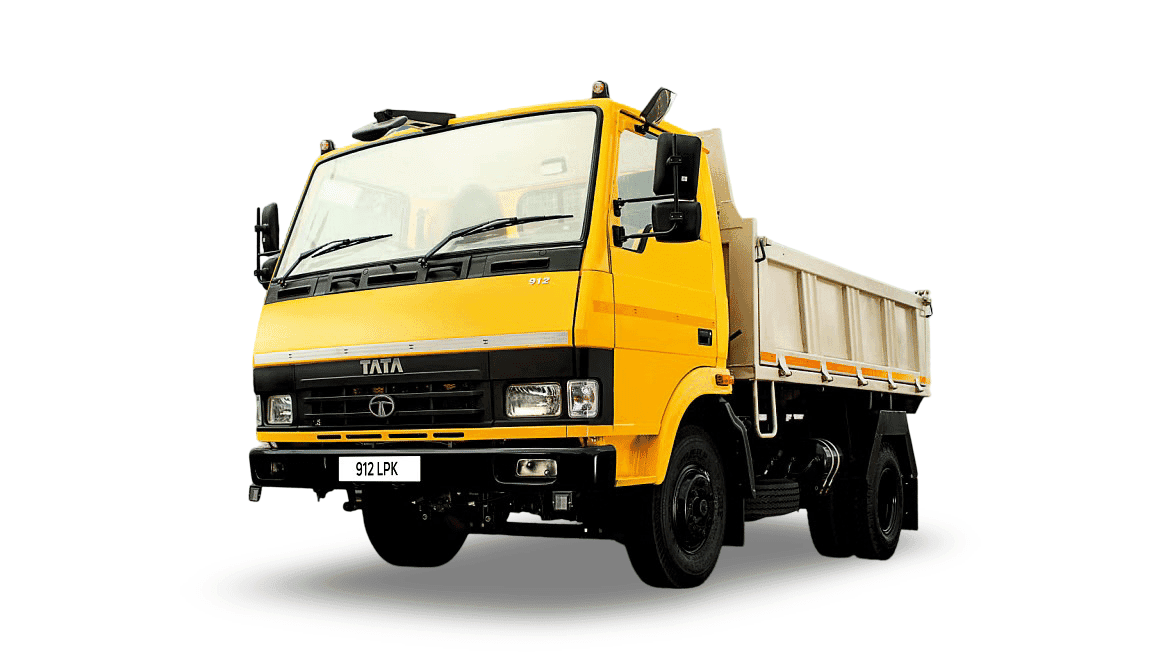

Tata 912 LPK images
