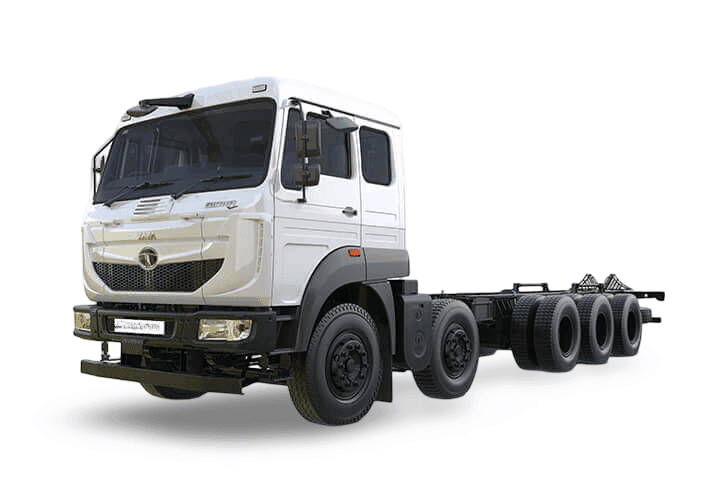

Tata LPT 4825

Key Features of Tata LPT 4825

Specifications of Tata LPT 4825

• Performance
  • Fuel Tank (Litres)
    365 Ltr
  • Engine
    Cummins ISBe 6.7L
  • Fuel Type
    Diesel
  • Emission Norms
    BS VI
  • Max Torque
    950 Nm
  • Mileage
    3.5 kmpl
  • Max Speed (km/h)
    80
  • Engine Cylinders
    6
  • Turning Radius (mm)
    23700
  • Battery Capacity
    120 Ah
  • Product Type
    L5N (High Speed Goods Carrier)
  • Carrier Type
    Goods Carrier
  • Max Power
    249 hp
  • Engine Displacement (cc)
    6700 cc

• Dimension
  • Overall Width (mm)
    2500
  • Ground Clearance (mm)
    250
  • Wheelbase (mm)
    6800
  • Axle Configuration
    10x2
  • Loading Length {mm}
    9144

• Transmission & Loading Capacity
  • Transmission
    Manual
  • Payload (Kgs)
    38000 Kgs
  • GVW / GCW (Kgs)
    47500 kg
  • Kerb Weight (Kgs)
    9500
  • Gear Box
    9 Forward + 1 Reverse
  • Power Steering
    Yes
  • Clutch
    430 mm dia push type single plate dry friction organic lining

• Features
  • Steering
    Power Steering
  • A/C
    No
  • Cruise Control
    No
  • Navigation System
    No
  • Telematics
    No
  • Tiltable Steering
    No
  • Arm-rest
    No
  • Seat Type
    Standard
  • Driver Information Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Seating Capacity
    D+1
  • Tubeless Tyres
    Optional
  • Seat Belts
    Yes
  • Hill Hold
    No

• Brakes & Suspension
  • Brakes
    Air Brake
  • Front Suspension
    Parabolic Leaf Spring
  • Rear Suspension
    Semi elliptic leaf spring with Bell crank mechanism
  • ABS
    No
  • Parking Brakes
    Yes
  • Front Axle
    TATA heavy duty 7T reverse elliot type
  • Rear Axle
    TATA Single reduction RA110HD

• Body Option & Cabin Type
  • Chassis Type
    Chassis with Face Cowl
  • Body Option
    Customizable body
  • Cabin Type
    Day Cabin
  • Tiltable Cabin
    No

• Tyres
  • Number of Tyre
    16
  • Rear Tyre
    295/90R20
  • Front Tyre
    295/90R20

• Others
  • Chassis
    Yes
  • Battery(Volts)
    12 V
  • Fog Lights
    No
