Tata T.16 Ultra

Key Features of Tata T.16 Ultra

Specifications of Tata T.16 Ultra

• Performance
  • Fuel Tank (Litres)
    160 Ltr
  • Engine
    3.3l NG BS-VI, 4 Cylinder in line water cooled direct injection diesel engine with intercooler
  • Fuel Type
    Diesel
  • Emission Norms
    BS-VI, Phase 2
  • Max Torque
    475 Nm
  • Mileage
    6.5 kmpl
  • Max Speed (km/h)
    80
  • Engine Cylinders
    4
  • Turning Radius (mm)
    17500
  • Battery Capacity
    100 Ah
  • Product Type
    L5N (High Speed Goods Carrier)
  • Carrier Type
    Goods Carrier
  • Max Power
    117.7 kW
  • Engine Displacement (cc)
    3300 cc
  • Mileage City
    5.5-6.5
  • Mileage Highway
    6-7
  • Gradeability (%)
    26 %

• Dimension
  • Overall Length (mm)
    8950
  • Overall Width (mm)
    2440
  • Overall Height (mm)
    3100
  • Ground Clearance (mm)
    235
  • Wheelbase (mm)
    4920
  • Axle Configuration
    4x2
  • Loading Length {mm}
    6800
  • Loading Width {mm}
    2286
  • Loading Height {mm}
    1835

• Transmission & Loading Capacity
  • Transmission
    Manual
  • Payload (Kgs)
    11000 Kgs
  • GVW / GCW (Kgs)
    16140 kg
  • Gear Box
    G550 (6F+1R), Cable Shift Mechanism
  • Power Steering
    Yes
  • Clutch
    330 mm dia, Single plate dry friction type

• Features
  • Steering
    Power Steering
  • A/C
    Optional
  • Cruise Control
    Yes
  • Navigation System
    No
  • Telematics
    Yes
  • Tiltable Steering
    Tilt & Telescopic
  • Arm-rest
    Yes
  • Seat Type
    Standard
  • Driver Information Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Seating Capacity
    D+2
  • Tubeless Tyres
    No
  • Seat Belts
    Yes
  • Hill Hold
    No

• Brakes & Suspension
  • Brakes
    Dual Circuit Full Air S Cam Brakes with auto Slack adjuster Drum Brakes
  • Front Suspension
    Parabolic leaf spring, hydraulic double acting Telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf spring with Aux springs
  • ABS
    Yes
  • Parking Brakes
    Graduated valve controlled spring brake chamber integral with Rear Brake
  • Rear Axle
    TATA RA108R Single reduction hypoid gears,fully floating benjo axle (RAR-6.42)

• Body Option & Cabin Type
  • Chassis Type
    Chassis with Cabin
  • Body Option
    Box body
  • Cabin Type
    Ultra Day Cabin
  • Tiltable Cabin
    Hydraulically tiltable

• Tyres
  • Number of Tyre
    6
  • Rear Tyre
    9 R 20 - 16PR CRR Radial
  • Front Tyre
    9 R 20 - 16PR CRR Radial

• Others
  • Chassis
    Yes
  • Battery(Volts)
    12 V
  • Fog Lights
    Provision

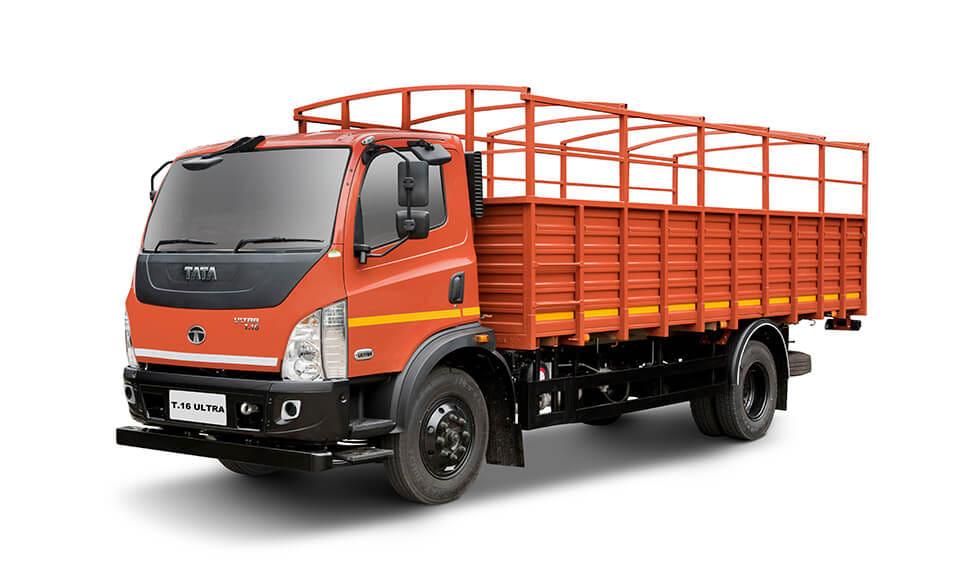

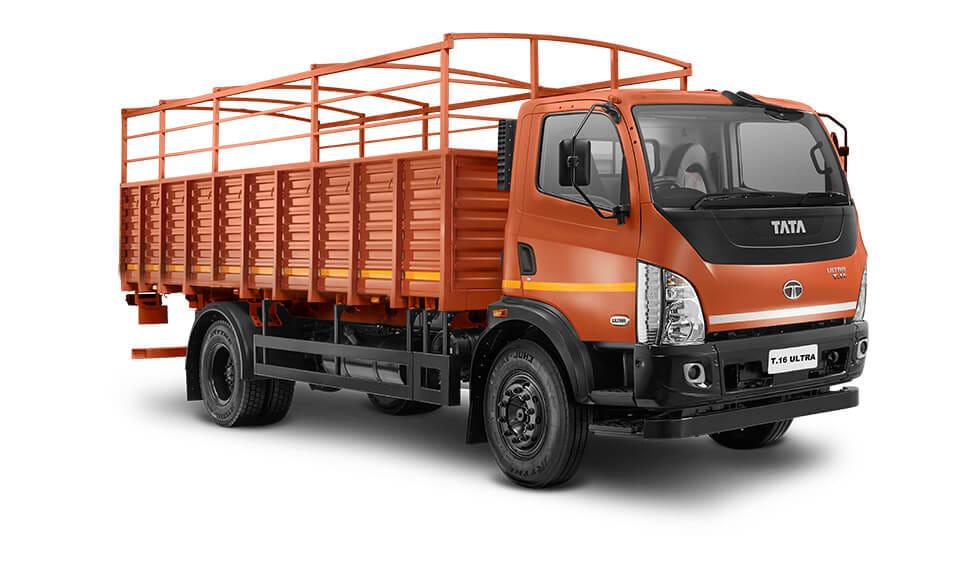

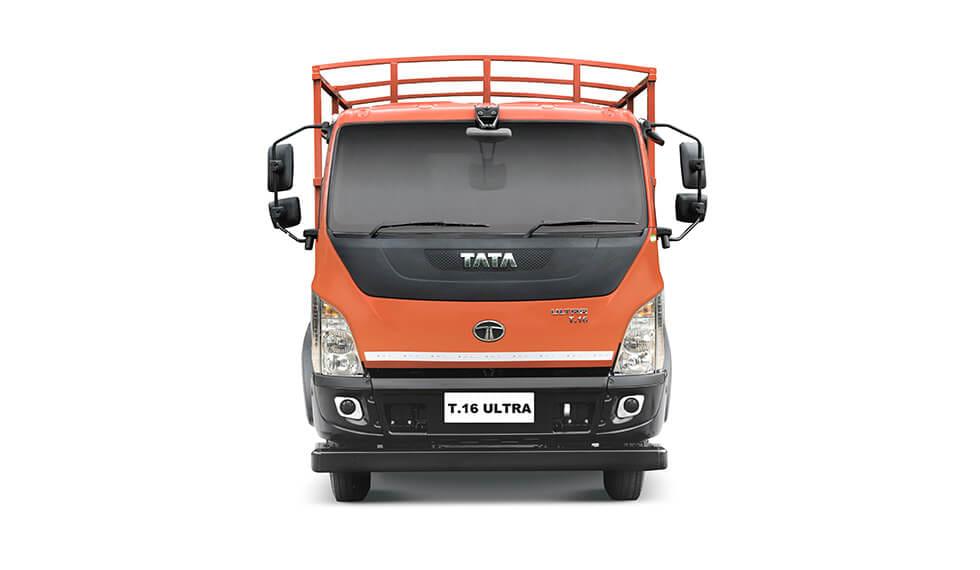

Tata T.16 Ultra images
