Tata T.18 Ultra SL

Key Features of Tata T.18 Ultra SL

Specifications of Tata T.18 Ultra SL

• Performance
  • Fuel Tank (Litres)
    250 Ltr
  • Engine
    5L New Generation
  • Fuel Type
    Diesel
  • Emission Norms
    BS-VI
  • Max Torque
    700 Nm
  • Mileage
    6 kmpl
  • Max Speed (km/h)
    80
  • Engine Cylinders
    4
  • Turning Radius (mm)
    11500
  • Battery Capacity
    100 Ah
  • Product Type
    L5N (High Speed Goods Carrier)
  • Carrier Type
    Goods Carrier
  • Max Power
    180 hp
  • Engine Displacement (cc)
    5000 cc
  • Mileage City
    5.5-6.5
  • Mileage Highway
    6-7
  • Gradeability (%)
    24.6 %

• Dimension
  • Overall Length (mm)
    8680
  • Overall Width (mm)
    2440
  • Overall Height (mm)
    3160
  • Ground Clearance (mm)
    228
  • Wheelbase (mm)
    4920
  • Axle Configuration
    4x2
  • Loading Length {mm}
    6170
  • Loading Width {mm}
    2285
  • Loading Height {mm}
    1830

• Transmission & Loading Capacity
  • Transmission
    Manual
  • Payload (Kgs)
    11500 Kgs
  • GVW / GCW (Kgs)
    17600 kg
  • Kerb Weight (Kgs)
    6589
  • Gear Box
    6 Forward + 1 Reverse
  • Power Steering
    Yes
  • Clutch
    352 mm dia

• Features
  • Steering
    Power Steering
  • A/C
    No
  • Cruise Control
    No
  • Navigation System
    No
  • Telematics
    No
  • Tiltable Steering
    Yes
  • Arm-rest
    No
  • Seat Type
    Standard
  • Driver Information Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Seating Capacity
    D+2
  • Tubeless Tyres
    No
  • Seat Belts
    No
  • Hill Hold
    No

• Brakes & Suspension
  • Brakes
    Air Brakes
  • Front Suspension
    Parabolic suspension
  • Rear Suspension
    Semi Elliptical Leaf Spring
  • ABS
    No
  • Parking Brakes
    Yes
  • Front Axle
    parabolic leaf spring front axle
  • Rear Axle
    Banjo Type Axle

• Body Option & Cabin Type
  • Chassis Type
    Chassis with Cabin
  • Body Option
    Box body
  • Cabin Type
    Day and Sleeper Cabin
  • Tiltable Cabin
    Yes

• Tyres
  • Number of Tyre
    6
  • Rear Tyre
    295/90R20
  • Front Tyre
    295/90R20

• Others
  • Chassis
    Yes
  • Battery(Volts)
    24 V
  • Fog Lights
    No
  • Loading Platform Area(Sq.ft)
    400

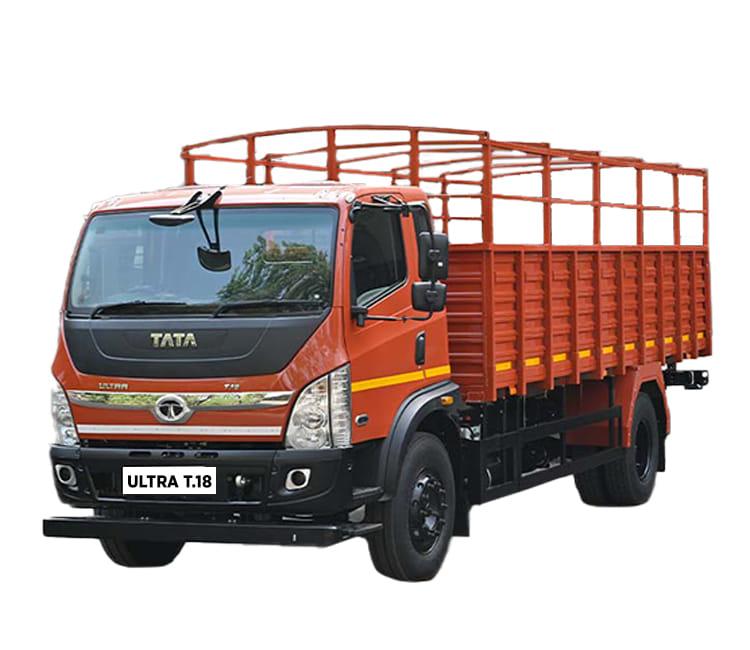

Tata T.18 Ultra SL images
