BharatBenz 3526R

Key Features of BharatBenz 3526R

• Engine

  6D26 BSVI OBD-II
• Power

  250
• GVW

  35000 KG

Specifications of BharatBenz 3526R

• Performance
  • Engine
    6D26 BSVI OBD-II
  • Gradeability
    20.5 (%)
  • Power
    250
  • Engine Cylinders
    6
  • Max Torque
    950 Nm
  • Max Speed
    80 KMPH
  • Fuel Tank
    380/355 Ltrs.
  • GVW
    35000 KG

• Dimensions
  • Length
    10490 MM
  • Width
    2490 MM
  • Height
    2960 MM
  • Wheelbase
    6375 MM
  • Ground Clearance
    210 MM
  • Minimum Turning Radius
    10800 MM
  • Load Body Size
    32.2 ft

• Brakes Suspension
  • Brakes
    Pneumatic - Dual line drum brakes with ABS
  • Front Axle
    IF 7.0 (Forged - Reverse Elliot)
  • Rear Axle
    RS440 (Single reduction fully floating)
  • Front Suspension
    Parabolic leaf spring
  • Rear Suspension
    Balancer type

• Clutch Transmission
  • Clutch
    Single dry plate - Organic
  • Gearbox
    G85, 6S + 1R
  • Steering
    Tilt & Telescopic
  • Transmission
    Manual - Synchromesh with OD

• Body Cabin
  • Chassis Type
    Chassis with Cabin
  • Cabin Type
    Sleeper Cabin

• Tyre
  • Front Tyre
    295/90R20, 295/80R22.5 (Optional)
  • Rear Tyre
    295/90R20, 295/80R22.5 (Optional)

• Others
  • Battery
    24V/120 AH

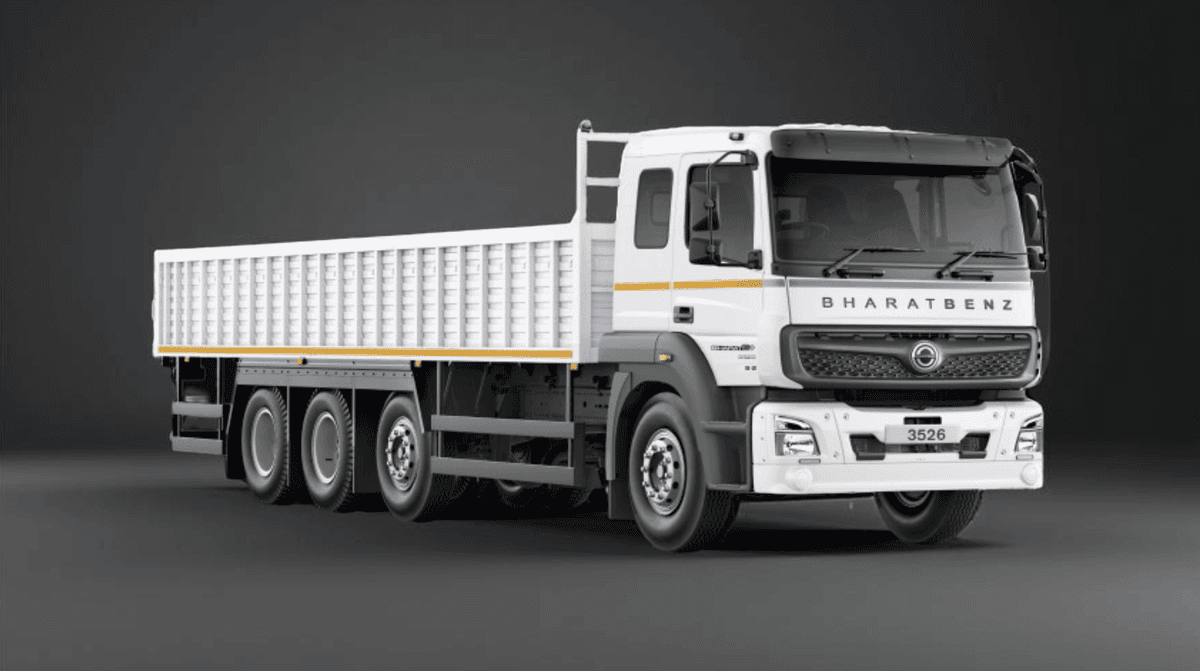

BharatBenz 3526R images
