ESCORTS F20

Key Features of ESCORTS F20

Specifications of ESCORTS F20

• General
  • Sub Category
    Crane

• Engine
  • Rated Power
    101 HP
  • Type
    Model E 483 TCIC

• Transmission
  • Max Speed
    40 Kmph
  • Turning Radius
    1500 Meter
  • Drive
    2
  • Clutch
    Single,dry type friction clutch plate
  • Creep speed
    1.3 kmph

• Steering
  • Turning Radius
    1500 Meter
  • Type
    Full power orbitrol with twin hydraulic double acting rams 40 Deg.articulation on either side

• Overall Dimension
  • Height
    3.3 Meter
  • Length
    10900 mm

• Capacities
  • Max Lifting Capacity
    20 Ton

• Brakes
  • Front Wheel
    Fully air operated Brakes on front Wheel
  • Brakes Rear Wheel
    pneumatically assisted hydraulic Brakes on rear Wheel
  • Parking
    Air operated ,spring actuated ,fail safe brakes on front and rear wheels.

• Tyre
  • Front
    8 nos.-12 x24-20 PLY
  • Rear
    8 nos.-12 x24-20 PLY

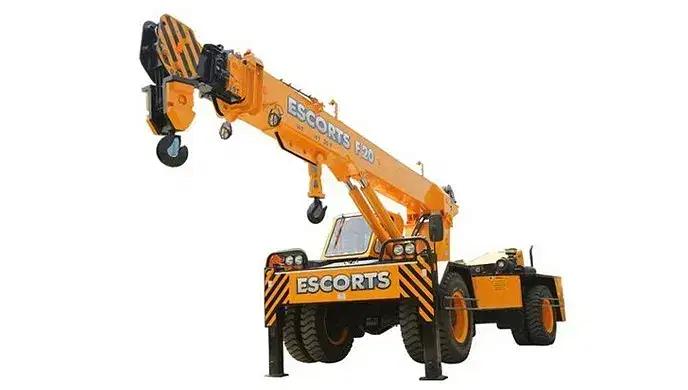

ESCORTS F20 images
