The Volvo EC140D is a robust excavator designed for superior excavation and demolition tasks. Equipped with a powerful 105 HP engine, it offers impressive performance with a lifting capacity of 3500 Kg and a maximum digging depth of 5530 MM. Its 15870 Kg operating weight and 0.66 cubic meter bucket capacity make it ideal for handling various construction materials. The 250 L fuel tank and efficient hydraulic system ensure extended operation time and precise control, making it a cost-effective choice for any construction project.
Read more
Price on Request*
*Prices are subjected to change
EMI ₹ 20,362 For 5 YearsEMI Calculator
Key Features of Volvo EC140D
Specifications of Volvo EC140D
General
Sub Category
Excavator
Engine
Power ISO 14396
0
Model
EC140D
Bore
100 mm
Stroke
120 mm
Displacement
3.77 L
Engine Power
105 Hp
Hydraulic System
Main system Maximum Flow
118 Lpm
Weights Operating
Weight
15870 Kg
Operating Weight
15870 Kg
SERVICE REFILL CAPACITIES
Tank Capacity
250 L
Weights service refill
22.3 L
Weights engine oil
13.2 L
Weights hydraulic system including tank
230 L
weights hydraulic tank
85 L
Hydraulic System
230 L
Dimensions
Tail Swing Radius
2200 mm
Counterweight Clearance
2170 mm
Ground Clearance
600 mm
Track Length
3760 mm
Track Gauge
1990 mm
WORKING RANGES & FORCES
Maximum Digging Depth
5530 MM
Bucket Capacity
0.66 Cum
Lifting Capacity
3500 Kg
Volvo EC140D Brochure
Download the brochure in just one click to view Volvo EC140D price, specs and features of all the variants.

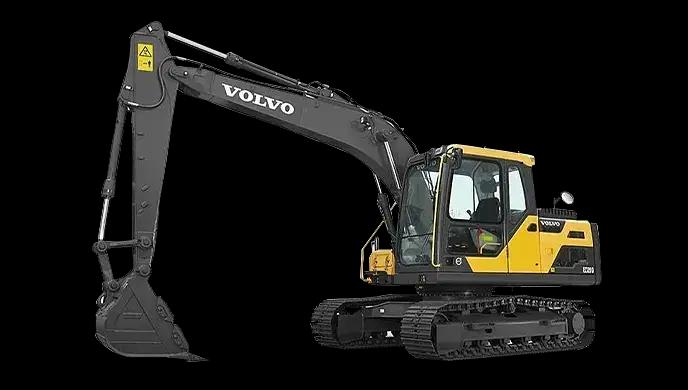

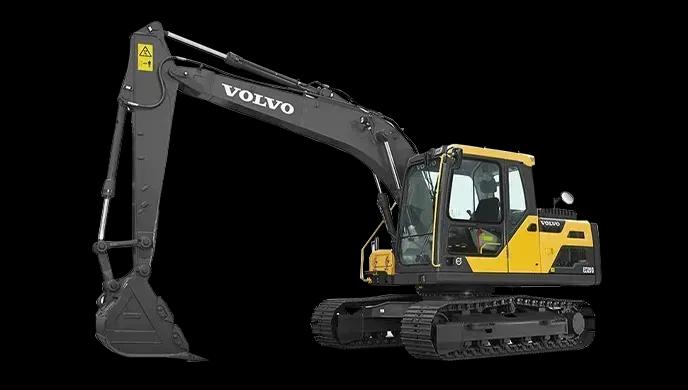

Volvo EC140D images
Volvo EC140D User Reviews & Rating
This product has not been reviewed yet. Your opinion could help others
Your questions, answered
Can not find what you are looking for?
Ask our experts
What is the engine power of the Volvo EC140D?
The Volvo EC140D is powered by a 105 HP engine.
What is the maximum digging depth of the Volvo EC140D?
The maximum digging depth of the Volvo EC140D is 5530 MM.
What is the bucket capacity of the Volvo EC140D?
The bucket capacity of the Volvo EC140D is 0.66 cubic meters.
How much can the Volvo EC140D lift?
The Volvo EC140D has a lifting capacity of 3500 Kg.
What is the operating weight of the Volvo EC140D?
The operating weight of the Volvo EC140D is 15870 Kg.
What is the fuel tank capacity of the Volvo EC140D?
The fuel tank capacity of the Volvo EC140D is 250 liters.
What is the hydraulic system capacity of the Volvo EC140D?
The hydraulic system of the Volvo EC140D has a maximum flow of 118 Lpm.
