ACE DI 550 NG 4WD

Key Features of ACE DI 550 NG 4WD

• No. Of Cylinder

  3
• Power

  50
• Capacity (cc)

  3065 CC
• PTO Power

  42.5
• Fuel Tank Capacity

  57 litre
• Lifting Capacity

  1200 / 1800 Kg
• Wheel Drive

  4 WD

Specifications of ACE DI 550 NG 4WD

• Engine
  • Power
    50
  • No. Of Cylinder
    3
  • Air Filter
    Dry Air Cleaner
  • Capacity (cc)
    3065 CC
  • Cooling Type
    Water Cooled
  • Engine Rated RPM
    2100 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    42.5
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Dual Clutch
  • Battery
    12 V 88 Ah
  • Alternator
    12 V 42 Amp
  • Forward Speed
    2.50 - 32.5 kmph
  • Reverse Speed
    3.80 - 13.7 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    1200 / 1800 Kg
  • Brakes
    Oil immersed Brakes
  • Tuning Radius with Brakes
    4380 - 4850 MM
  • 3 point Linkage
    ADDC, Live Hydraulic with Mix Mode

• Dimension & Capacity
  • Fuel Tank Capacity
    57 litre
  • Wheel Base
    1960 MM
  • Overall Width
    1835 MM
  • Ground Clearance
    370 MM
  • Total Weight
    2110 KG
  • Overall Length
    3790 MM

• Wheels & Tyres
  • Wheel Drive
    4 WD
  • Front Tyre Size
    8 x 18
  • Read Tyre Size
    14.9 x 28 , 12 PR

• Others
  • Warranty
    2000 Hour / 2 Year

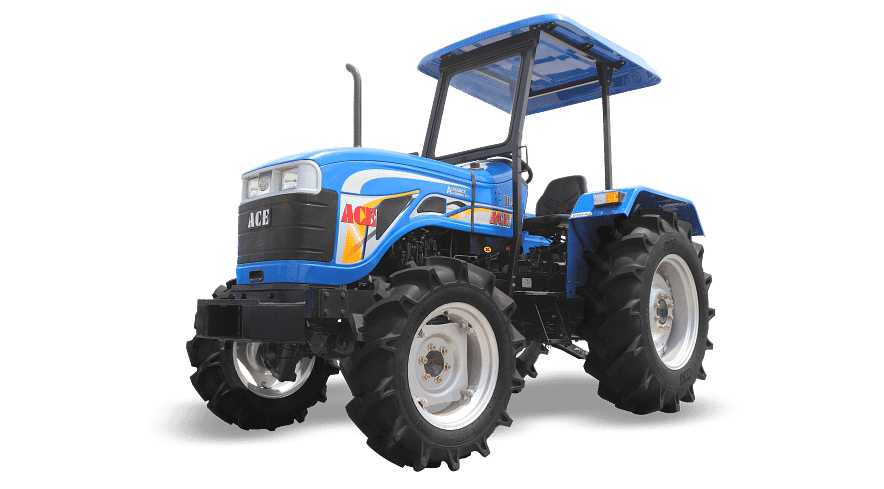

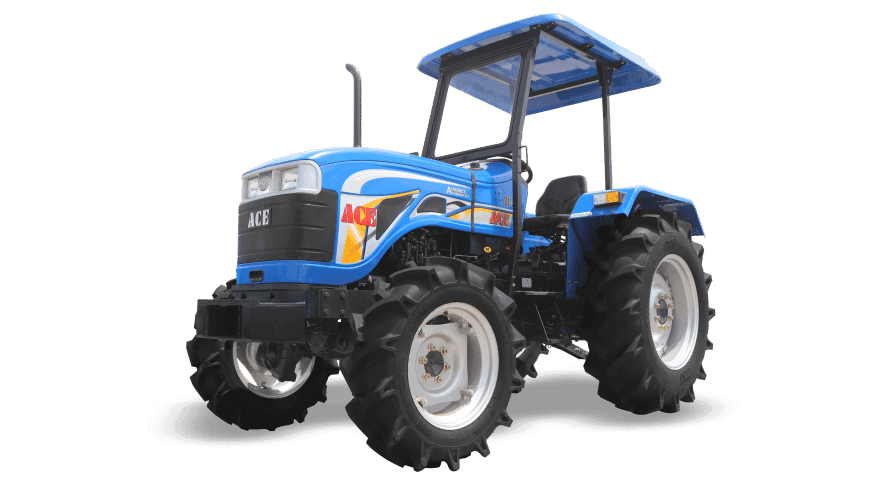

ACE DI 550 NG 4WD images
