Eicher 480

Key Features of Eicher 480

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  2500 CC
• PTO Power

  35.7
• Fuel Tank Capacity

  45 litre
• Lifting Capacity

  1650 kg
• Wheel Drive

  2 WD

Specifications of Eicher 480

• Engine
  • No. Of Cylinder
    3
  • Fuel Pump
    Inline
  • Power
    45
  • Capacity (cc)
    2500 CC
  • Cooling Type
    Water Cooled
  • Engine Rated RPM
    2150 RPM
  • Air Filter
    Oil bath type

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    35.7

• Transmission
  • Alternator
    12 V 36 A
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single/Dual clutch
  • Battery
    12 V 75 Ah
  • Forward Speed
    32.3 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    Draft Position And Response Control Links
  • Brakes
    Dry Disc Brakes / Oil Immersed Brakes (OPTIONAL)
  • Lifting Capacity
    1650 kg
  • Tuning Radius with Brakes
    3000 MM

• Dimension & Capacity
  • Ground Clearance
    360 MM
  • Overall Width
    1700 MM
  • Wheel Base
    1910 MM
  • Fuel Tank Capacity
    45 litre
  • Total Weight
    2042 KG
  • Overall Length
    3475 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 x 28 / 14.9 x 28
  • Wheel Drive
    2 WD

• Others
  • Accessories
    Tool, Toplink, Canopy, Hook, Bumper, Drawbar
  • Warranty
    2 Year

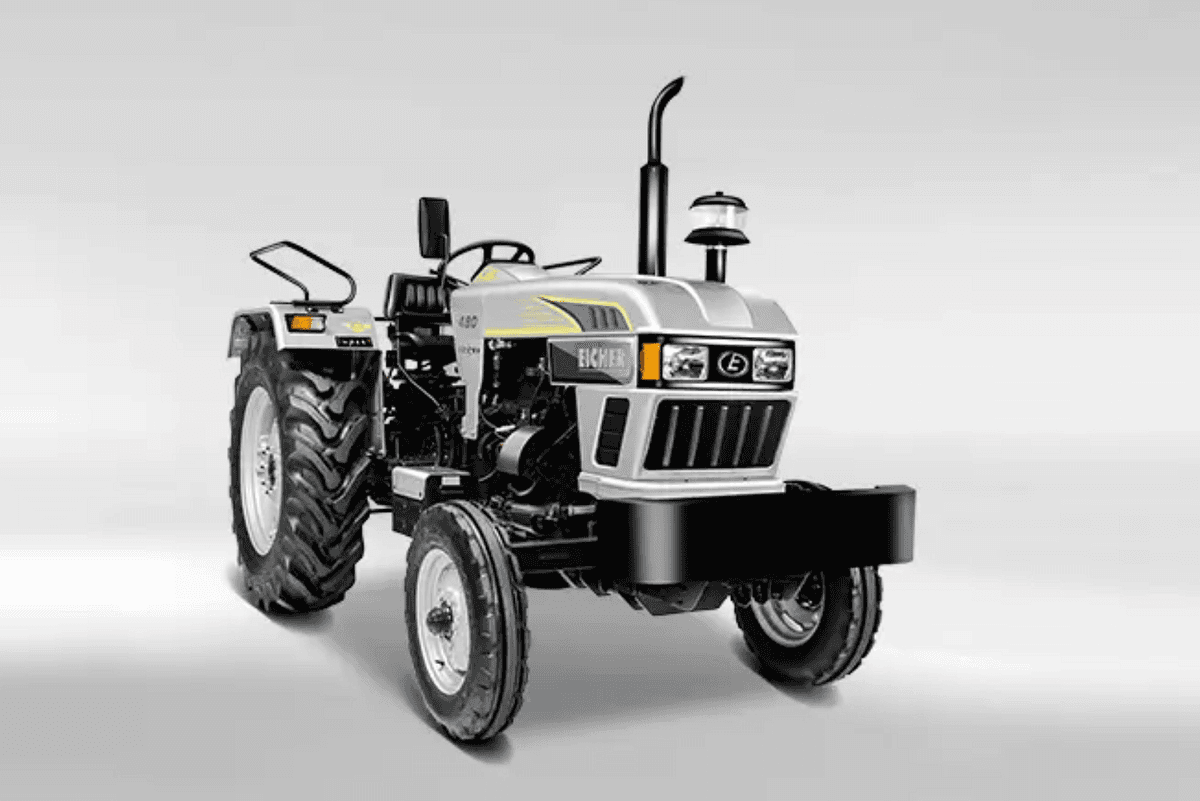

Eicher 480 images
