New Holland 3037 TX

Key Features of New Holland 3037 TX

• No. Of Cylinder

  3
• Power

  39
• Capacity (cc)

  2500 CC
• PTO Power

  35
• Fuel Tank Capacity

  46 litre
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of New Holland 3037 TX

• Engine
  • Air Filter
    Oil Bath Type with Pre-Cleaner
  • Power
    39
  • Capacity (cc)
    2500 CC
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2000 RPM
  • Torque
    149.6

• Power Take Off (PTO) & Steering
  • PTO Power
    35
  • PTO RPM
    540S, 540E

• Transmission
  • Battery
    88 Ah
  • Alternator
    35 Amp
  • Gear Box
    8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
  • Forward Speed
    2.54- 28.16 kmph
  • Reverse Speed
    3.11- 9.22 kmph
  • Clutch Type
    Single/ Double clutch

• Hydraulics & Brakes
  • Lifting Capacity
    1800 Kg
  • 3 point Linkage
    ADDC
  • Brakes
    Oil Immersed Multi Disc Brake
  • Tuning Radius with Brakes
    2810 MM

• Dimension & Capacity
  • Wheel Base
    2045 MM
  • Overall Length
    3390 MM
  • Ground Clearance
    395 MM
  • Fuel Tank Capacity
    46 litre
  • Total Weight
    1815 KG
  • Overall Width
    2070 MM

• Wheels & Tyres
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.50 x 16

• Others
  • Warranty
    6000 Hours or 6 Year
  • Accessories
    Tools, Bumper, Top Link, Canopy, Hitch, Drawbar, Ballast Weight
  • Options
    55kg FWC

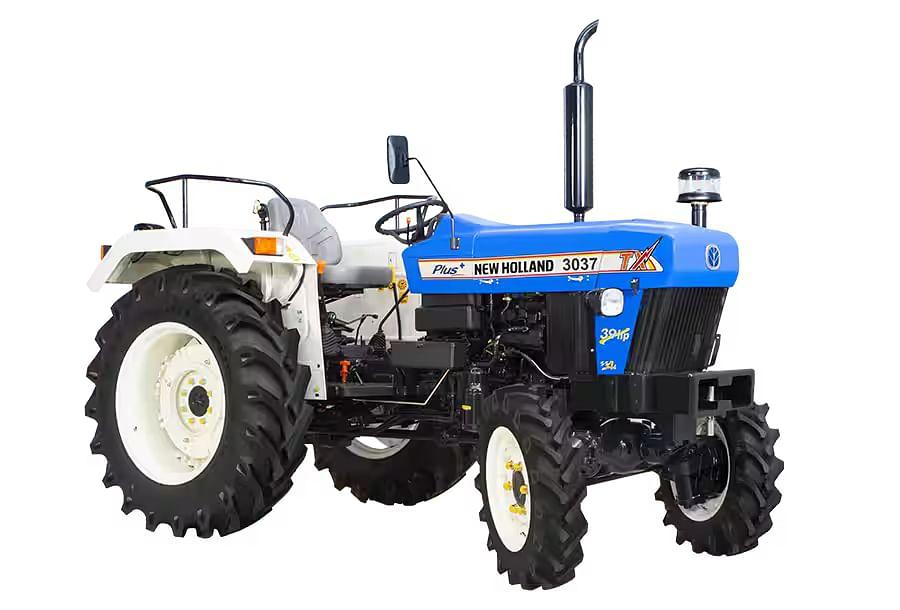

New Holland 3037 TX images
