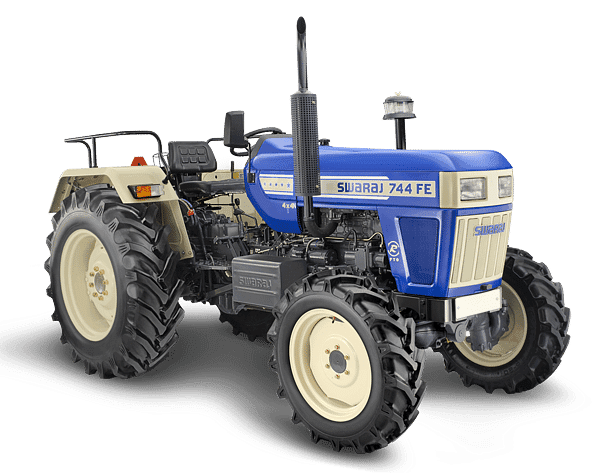

Swaraj 744 FE 4WD

Key Features of Swaraj 744 FE 4WD

• No. Of Cylinder

  3
• Power

  48
• Capacity (cc)

  3136 CC
• PTO Power

  40.3
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1700 kg
• Wheel Drive

  4 WD

Specifications of Swaraj 744 FE 4WD

• Engine
  • Capacity (cc)
    3136 CC
  • Torque
    192
  • Cooling Type
    Water Cooled
  • Air Filter
    3 Stage wet Air Cleaner
  • Power
    48
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2000 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    40.3
  • PTO RPM
    540 @ 1650

• Transmission
  • Clutch Type
    Independent PTO Clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    3.1 - 29.2 kmph
  • Reverse Speed
    4.3 - 14.3 kmph

• Hydraulics & Brakes
  • Brakes
    Multi Plate Oil Immersed Brakes
  • Lifting Capacity
    1700 kg
  • 3 point Linkage
    DCV

• Dimension & Capacity
  • Fuel Tank Capacity
    55 litre
  • Wheel Base
    2085 MM
  • Overall Width
    1830 MM
  • Overall Length
    3475 MM
  • Total Weight
    2345 KG

• Wheels & Tyres
  • Read Tyre Size
    14.9 X 28 / 13.6 X 28
  • Wheel Drive
    4 WD
  • Front Tyre Size
    9.50 X 20 / 8.00 X 18

• Others
  • Warranty
    2000 hr / 2 Year
