Swaraj 963 FE

Key Features of Swaraj 963 FE

• No. Of Cylinder

  3
• Power

  60
• Capacity (cc)

  3478 CC
• PTO Power

  53.6
• Lifting Capacity

  2200 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 963 FE

• Engine
  • Air Filter
    Dry Type
  • Cooling Type
    Water Cooled
  • Engine Rated RPM
    2100 RPM
  • Power
    60
  • No. Of Cylinder
    3
  • Capacity (cc)
    3478 CC

• Power Take Off (PTO) & Steering
  • PTO RPM
    540, 540E
  • PTO Power
    53.6

• Transmission
  • Alternator
    starter motor
  • Battery
    12 V 100 AH
  • Clutch Type
    Mechanically actuated double clutch (independent PTO)
  • Gear Box
    12 Forward + 2 Reverse
  • Forward Speed
    0.90 - 31.70 kmph
  • Reverse Speed
    2.8 - 10.6 kmph

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brakes
  • Lifting Capacity
    2200 Kg
  • 3 point Linkage
    Live Hydraulics, Category-2 with fixed type lower links

• Dimension & Capacity
  • Overall Width
    1930 MM
  • Total Weight
    2650 KG
  • Wheel Base
    2210 MM
  • Ground Clearance
    425 MM
  • Overall Length
    3730 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50 x 16
  • Read Tyre Size
    16.9 X 28

• Others
  • Warranty
    2000 Hour or 2 Year

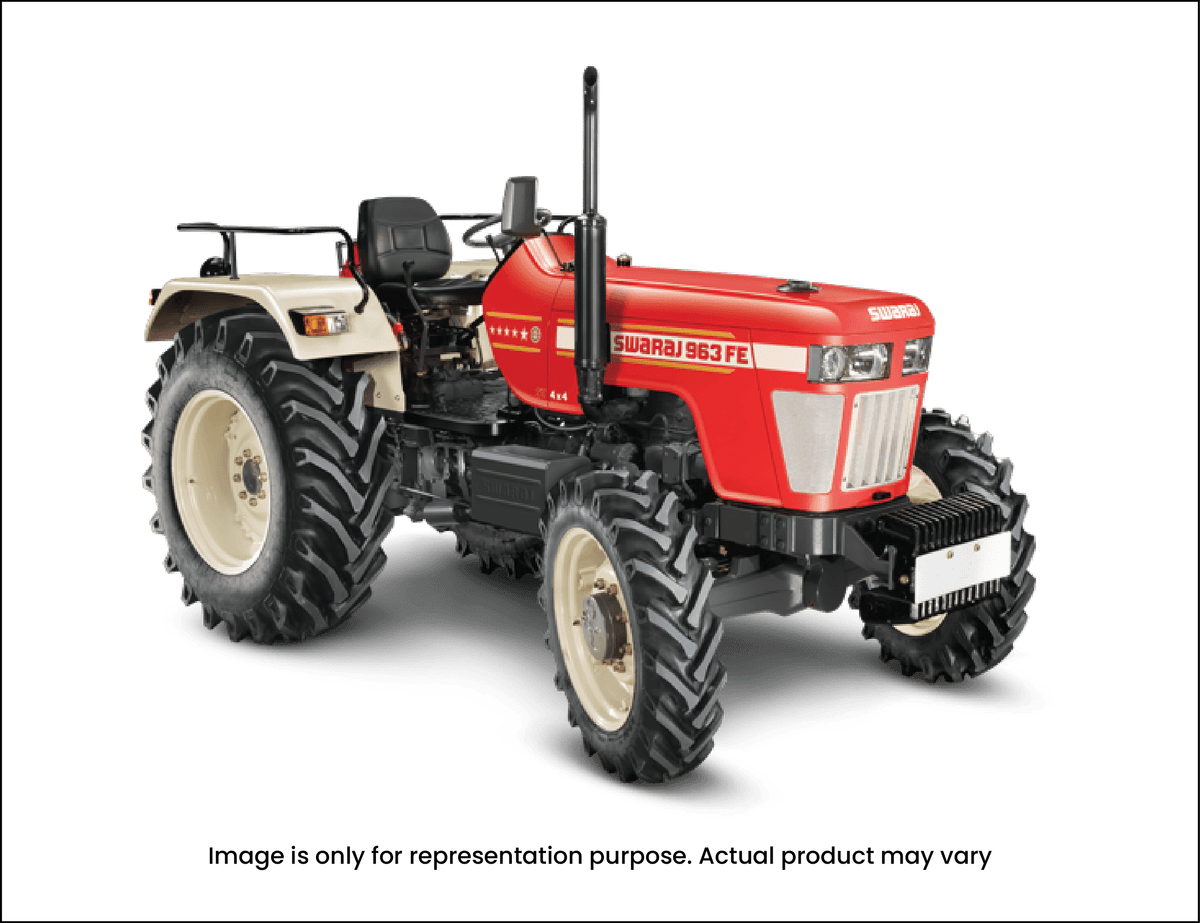

Swaraj 963 FE images
