Swaraj 969 FE

Key Features of Swaraj 969 FE

• No. Of Cylinder

  3
• Power

  65
• Capacity (cc)

  3478 CC
• PTO Power

  54
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  2200 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 969 FE

• Engine
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2000 RPM
  • Power
    65
  • Air Filter
    Dry Type
  • Cooling Type
    Water Cooled
  • Capacity (cc)
    3478 CC
  • Torque
    262

• Power Take Off (PTO) & Steering
  • PTO RPM
    540 & 540 E
  • PTO Power
    54

• Transmission
  • Gear Box
    12 Forward + 3 Reverse
  • Clutch Type
    Double Clutch
  • Battery
    12 V 100 AH
  • Forward Speed
    0.9 - 33.0 kmph
  • Reverse Speed
    2.0 - 24.0 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • 3 point Linkage
    CAT-2
  • Lifting Capacity
    2200 Kg
  • Brakes
    Oil Immersed Type Disk Brakes

• Dimension & Capacity
  • Wheel Base
    2210 MM
  • Total Weight
    2690 KG
  • Fuel Tank Capacity
    60 litre
  • Overall Length
    3705 MM
  • Overall Width
    1915 MM
  • Ground Clearance
    367 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50 x 16
  • Read Tyre Size
    16.9 X 28

• Others
  • Warranty
    2000 Hours / 2 Year

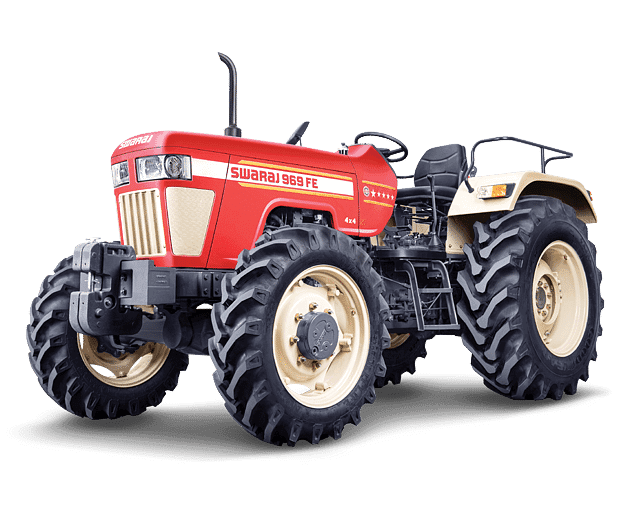

Swaraj 969 FE images
