BharatBenz 1217RE

Key Features of BharatBenz 1217RE

Specifications of BharatBenz 1217RE

• Performance
  • Fuel Tank (Litres)
    215/200 Ltr
  • Engine
    4D34i
  • Fuel Type
    Diesel
  • Emission Norms
    BS VI - OBD-2
  • Max Torque
    520 Nm
  • Mileage
    6-8 kmpl
  • Max Speed (km/h)
    70
  • Engine Cylinders
    4
  • Turning Radius (mm)
    14800
  • Battery Capacity
    75/100 Ah
  • Product Type
    L5N (High Speed Goods Carrier)
  • Carrier Type
    Goods Carrier
  • Max Power
    125 kW
  • Engine Displacement (cc)
    3900 cc
  • Gradeability (%)
    39.2/27 %

• Dimension
  • Overall Length (mm)
    7075
  • Overall Width (mm)
    2420
  • Overall Height (mm)
    2500
  • Ground Clearance (mm)
    245
  • Wheelbase (mm)
    3760
  • Axle Configuration
    4x2

• Transmission & Loading Capacity
  • Transmission
    Manual
  • Payload (Kgs)
    8000 Kgs
  • GVW / GCW (Kgs)
    13000 kg
  • Kerb Weight (Kgs)
    11990
  • Gear Box
    Improved G85, 6F+1R, Mechanical, Synchromesh Gears
  • Power Steering
    Yes
  • Clutch
    362 mm dia, Single Dry Plate, Hydraulic Actuated

• Features
  • Steering
    Hydraulic Power assisted
  • A/C
    No
  • Cruise Control
    No
  • Navigation System
    No
  • Telematics
    Yes
  • Tiltable Steering
    Yes
  • Arm-rest
    Yes
  • Seat Type
    Standard
  • Driver Information Display
    Yes
  • Adjustable Driver Seat
    No
  • Seating Capacity
    D+1
  • Tubeless Tyres
    No
  • Seat Belts
    Yes
  • Hill Hold
    No

• Brakes & Suspension
  • Brakes
    Pneumatic, Foot Operated, Dual Line Drum Brakes
  • Front Suspension
    Multileaf spring
  • Rear Suspension
    Multileaf spring
  • ABS
    Yes
  • Parking Brakes
    Spring Actuated with Hand Brake Valve
  • Front Axle
    IF 5
  • Rear Axle
    Dana S 145

• Body Option & Cabin Type
  • Chassis Type
    Chassis with Cabin
  • Body Option
    Customizable body
  • Cabin Type
    Day Cabin
  • Tiltable Cabin
    Yes

• Tyres
  • Number of Tyre
    6
  • Rear Tyre
    8.25R20, Radial
  • Front Tyre
    8.25R20, Radial

• Others
  • Chassis
    Yes
  • Battery(Volts)
    24 V
  • Fog Lights
    Yes

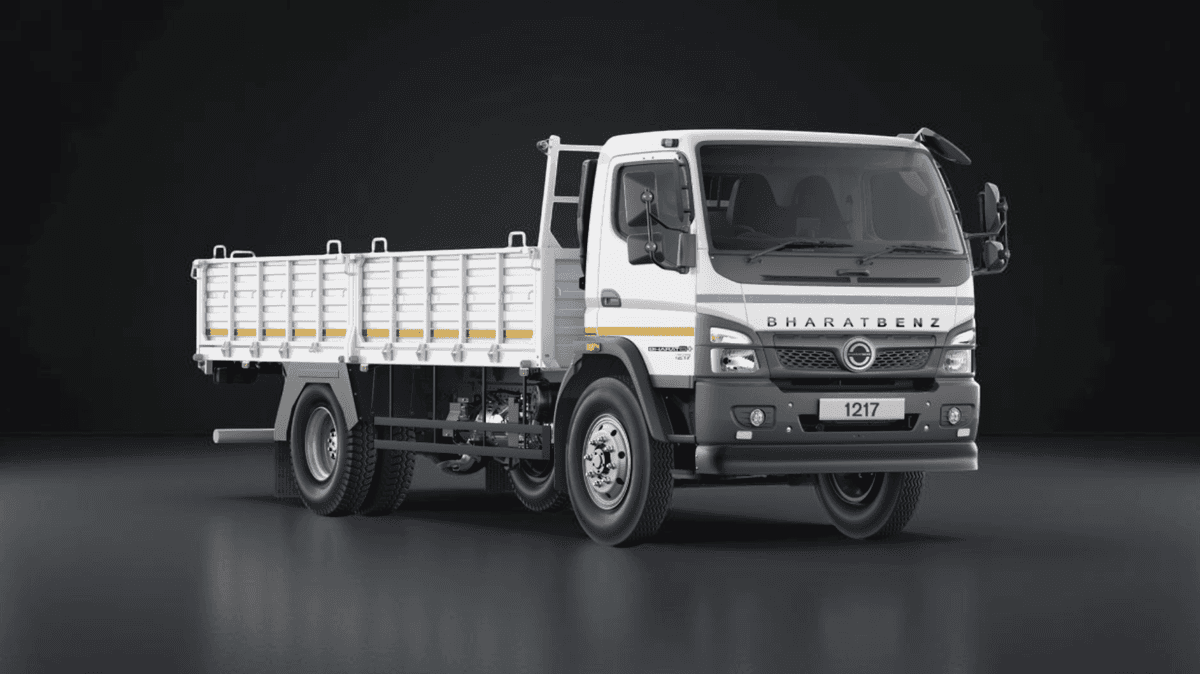

BharatBenz 1217RE images
