BharatBenz 3123R

Key Features of BharatBenz 3123R

• Engine

  OM 926
• Power

  240
• GVW

  31000 KG

Specifications of BharatBenz 3123R

• Performance
  • Engine
    OM 926
  • Engine Norm
    BS-6 Phase 2
  • Gradeability
    22 (%)
  • Power
    240
  • Engine Cylinders
    6
  • Max Torque
    850 Nm
  • Max Speed
    80 KMPH
  • Fuel Tank
    380 Ltrs.
  • GVW
    31000 KG

• Dimensions
  • Length
    9885 MM
  • Width
    2490 MM
  • Height
    2930 MM
  • Wheelbase
    5100 MM
  • Ground Clearance
    170 MM
  • Minimum Turning Radius
    21300 MM
  • Load Body Size
    25 ft

• Brakes Suspension
  • Brakes
    Pneumatic, Foot Operated, Dual Line with ABS
  • Parking Brakes
    Pneumatically Operated Hand Control Valve
  • Front Suspension
    Parabolic leaf spring
  • Rear Suspension
    Semi elliptic

• Clutch Transmission
  • Clutch
    395mm dia, Single dry plate, hydraulic control
  • Gearbox
    Improved G85, 6 Forward + 1 Reverse
  • Steering
    Hydraulic Power Assisted
  • Power Steering
    Yes

• Tyre
  • Front Tyre
    295/90R20
  • Rear Tyre
    295/90R20

• Others
  • Seat Belts
    Yes
  • Battery
    24V 120Ah

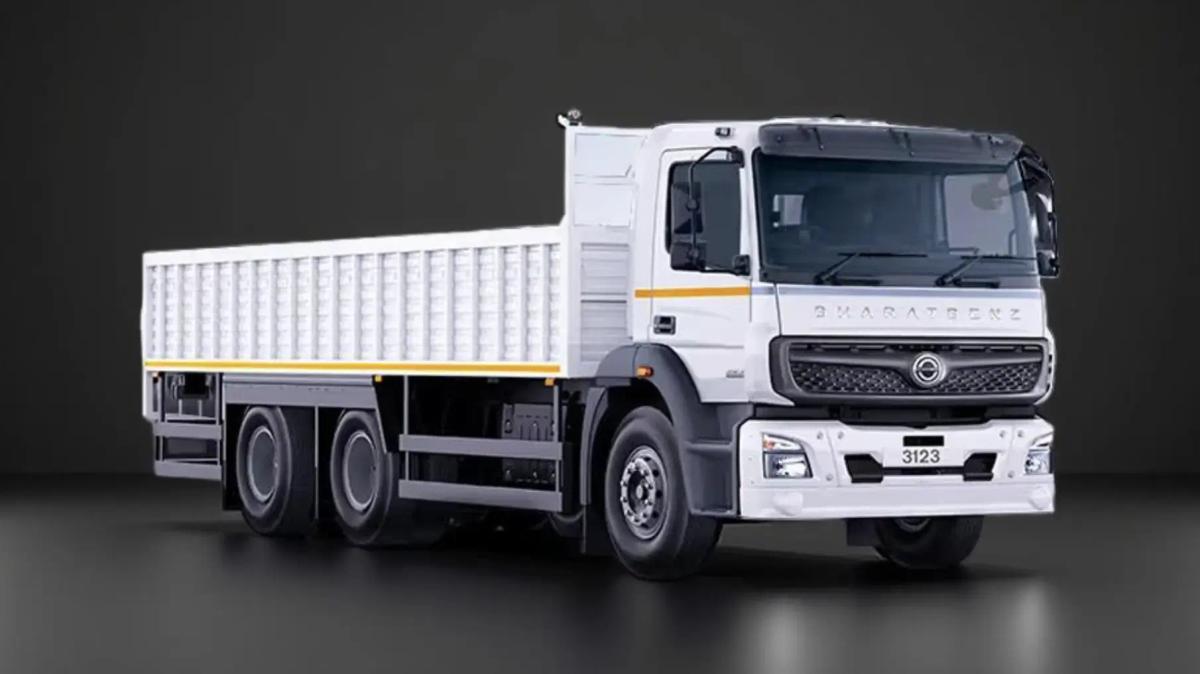

BharatBenz 3123R images
