BharatBenz 3523R

Key Features of BharatBenz 3523R

• Engine

  OM926
• Power

  240
• GVW

  35000 KG
• Payload Capacity

  26300 KG

Specifications of BharatBenz 3523R

• Performance
  • Engine
    OM926
  • Engine Cylinders
    6
  • Mileage
    3.5-4.5 KMPL
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6 Phase 2
  • Payload Capacity
    26300 KG
  • GVW
    35000 KG
  • Fuel Tank
    380 Ltrs.
  • Power
    240
  • Max Torque
    850 Nm
  • Gradeability
    18.5 (%)

• Dimensions
  • Width
    2490 MM
  • Height
    2960 MM
  • Length
    11092 MM
  • Wheelbase
    6375 MM
  • Ground Clearance
    238 MM
  • Minimum Turning Radius
    11850 MM

• Brakes Suspension
  • Abs
    Yes
  • Brakes
    Pneumatic foot operated dual line brakes
  • Parking Brakes
    Yes
  • Front Axle
    IF 7.0
  • Rear Axle
    RA 1 IR440-11
  • Front Suspension
    Parabolic type leaf spring with 2 hydraulic shock absorbers
  • Rear Suspension
    Balancer type semi-elliptical leaf spring

• Clutch Transmission
  • Clutch
    Single dry plate hydraulic control
  • Gearbox
    6 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Cabin Type
    Day and Sleeper Cabin

• Tyre
  • Tubeless Tyre
    Yes
  • Front Tyre
    295/80R22.5
  • Rear Tyre
    295/80R22.5

• Others
  • Battery
    24
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Air Condition
    No
  • Cruise Control
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes

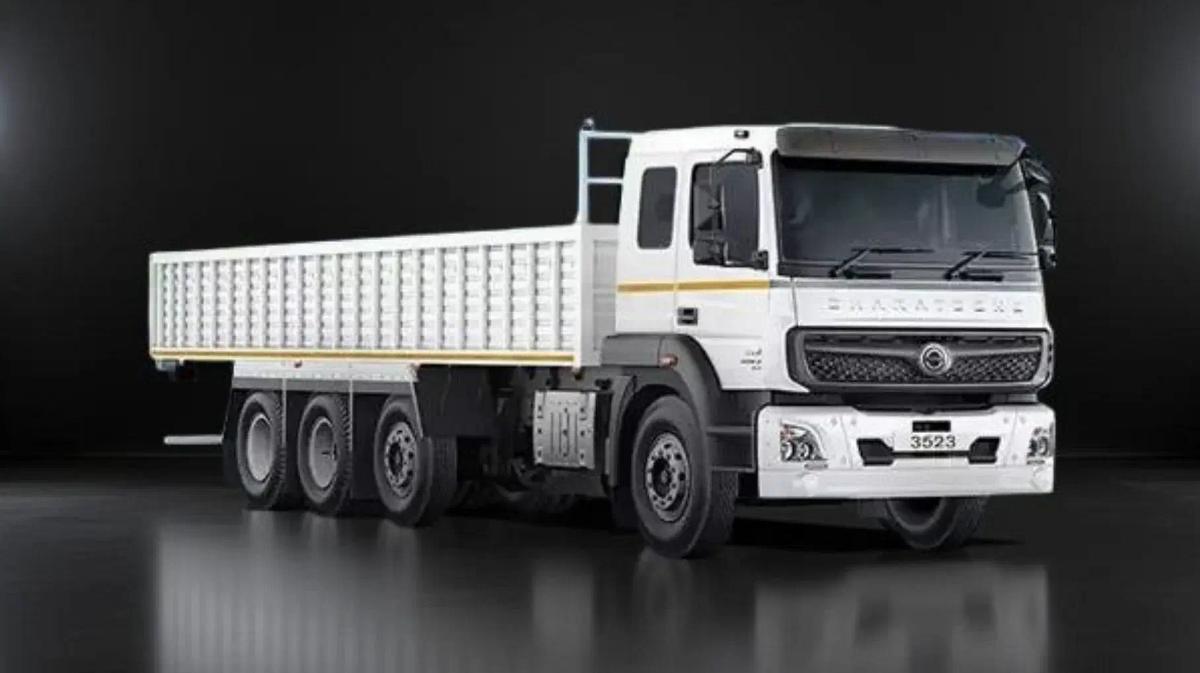

BharatBenz 3523R images
