BharatBenz 3528C

Key Features of BharatBenz 3528C

• Engine

  OM926
• Power

  280
• GVW

  35000 KG
• Payload Capacity

  20600 KG

Specifications of BharatBenz 3528C

• Performance
  • Engine
    OM926
  • Engine Cylinders
    6
  • Max Speed
    60 KMPH
  • Fuel Tank
    215 Ltrs.
  • Engine Norm
    BS-6 Phase 2
  • Gradeability
    45.2 (%)
  • Payload Capacity
    20600 KG
  • GVW
    35000 KG
  • Max Torque
    1100 Nm
  • Power
    280

• Dimensions
  • Width
    2490 MM
  • Ground Clearance
    290 MM
  • Wheelbase
    5175 MM
  • Minimum Turning Radius
    9700 MM
  • Length
    8385 MM
  • Height
    2983 MM

• Brakes Suspension
  • Brakes
    Pneumatic foot operated dual line brakes
  • Parking Brakes
    Yes
  • Front Axle
    IF 7.0
  • Front Suspension
    Parabolic type leaf spring with 2 hydraulic shock absorbers
  • Abs
    Yes
  • Rear Axle
    RA 1 IRT390-10
  • Rear Suspension
    Bogie Suspension

• Clutch Transmission
  • Power Steering
    Yes
  • Clutch
    Single dry plate hydraulic control
  • Steering
    Power Steering
  • Transmission
    Manual
  • Gearbox
    9 Forward + 1 Reverse

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Seating Capacity
    Driver +1 Passenger
  • Arm Rest
    No

• Tyre
  • Front Tyre
    11x20
  • Rear Tyre
    11x20
  • Tubeless Tyre
    No

• Others
  • Telematics
    No
  • Air Condition
    No
  • Cruise Control
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Battery
    24
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No

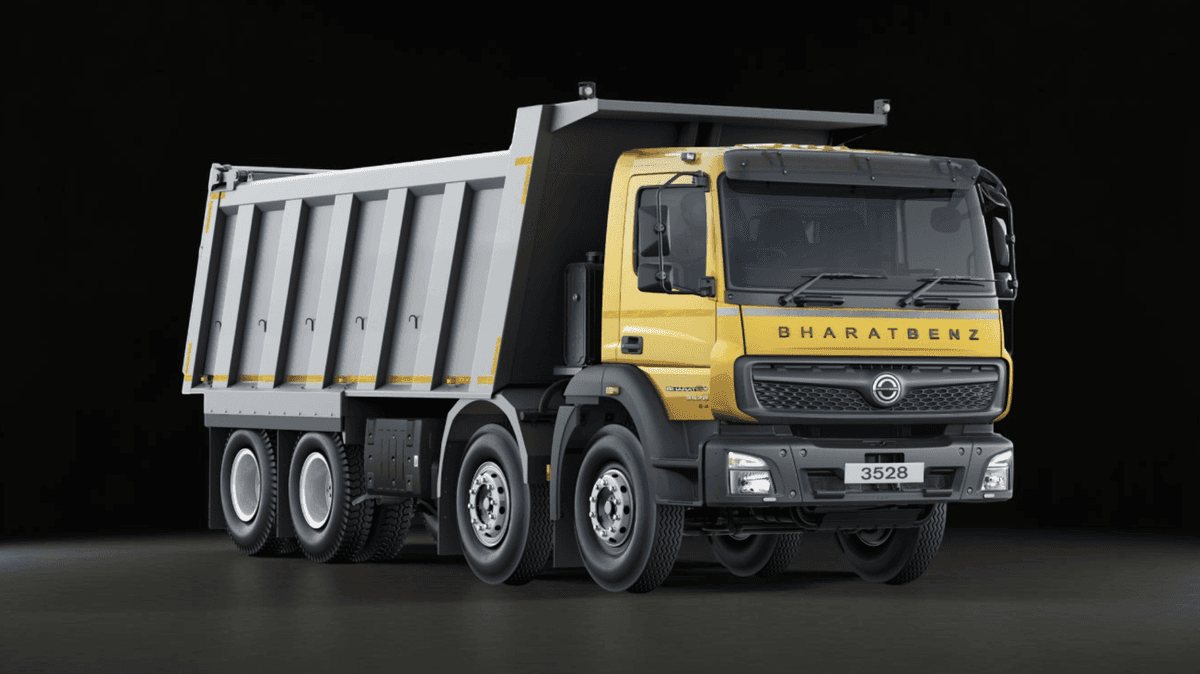

BharatBenz 3528C images
