Eicher Pro 3015XP

Key Features of Eicher Pro 3015XP

• Engine

  E494 4 Cyl 4 V CRS BS6
• Power

  180
• GVW

  17500 KG
• Payload Capacity

  11500 KG

Specifications of Eicher Pro 3015XP

• Performance
  • Power
    180
  • Max Torque
    600 Nm
  • GVW
    17500 KG
  • Payload Capacity
    11500 KG
  • Engine
    E494 4 Cyl 4 V CRS BS6
  • Max Speed
    80 KMPH
  • Engine Cylinders
    4
  • Engine Norm
    BS-6
  • Gradeability
    24 (%)
  • Fuel Tank
    425 Ltrs.

• Dimensions
  • Load Body Size
    24ft
  • Length
    7364 MM
  • Wheelbase
    5490 MM
  • Width
    2338 MM
  • Ground Clearance
    241 MM
  • Minimum Turning Radius
    21600 MM

• Brakes Suspension
  • Front Suspension
    Parabolic with shock absorber
  • Rear Suspension
    Semi elliptical laminated leaves with helper spring
  • Brakes
    Full Air brake divided line with auto slack adjuster at all wheel ends and APDA
  • Parking Brakes
    Yes

• Clutch Transmission
  • Gearbox
    Hybrid Gear Shift 7 speed
  • Clutch
    362 mm
  • Steering
    Tilt and telescopic
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Cabin Type
    2.1m Cockpit Design Sleeper cabin
  • Seating Capacity
    Driver + 2 Passenger
  • Body Option
    Box body
  • Tiltable Cabin
    Yes

• Tyre
  • Front Tyre
    295/90 R 20
  • Rear Tyre
    295/90 R 20
  • Tubeless Tyre
    Optional

• Others
  • Seat Type
    4 Way Adjustable Seat
  • Battery
    24 V - 100 Ah
  • Driver Info Display
    Yes
  • Seat Belts
    Yes

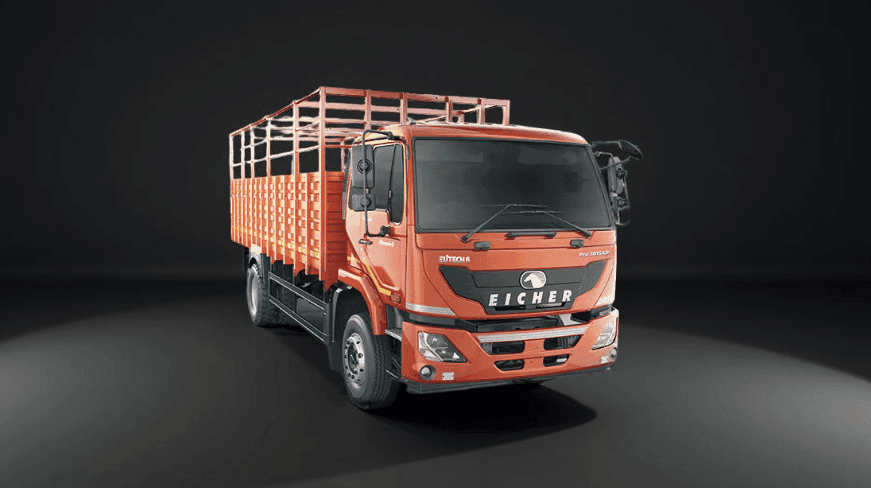

Eicher Pro 3015XP images
