Tata 1009g LPT

Key Features of Tata 1009g LPT

• Engine

  3.8 SGI BS6 Engine
• Power

  85
• GVW

  9900 KG
• Payload Capacity

  5000 KG

Specifications of Tata 1009g LPT

• Performance
  • GVW
    9900 KG
  • Max Speed
    80 KMPH
  • Engine Cylinders
    4
  • Mileage
    8 KMPL
  • Gradeability
    23 (%)
  • Max Torque
    285 Nm
  • Power
    85
  • Engine Norm
    BS-6
  • Payload Capacity
    5000 KG
  • Engine
    3.8 SGI BS6 Engine
  • Fuel Tank
    300 & 430 Ltrs.

• Dimensions
  • Wheelbase
    3800 MM
  • Minimum Turning Radius
    13500 MM
  • Width
    2117 MM
  • Height
    1822 MM
  • Ground Clearance
    217 MM
  • Length
    5217 MM

• Brakes Suspension
  • Front Suspension
    Semi elliptical leaf spring with hydraulic double acting telescopic shock absorbers
  • Front Axle
    Heavy Duty Forged I Beam reverse Elliot Type
  • Abs
    No
  • Parking Brakes
    Yes
  • Rear Suspension
    Semi-elliptical Leaf spring
  • Brakes
    Dual Circuit Full Air S Cam Brakes With Auto Slack Adjuster (Drum - Drum)
  • Rear Axle
    TATA RA1055HD Fully Floating Benjo Axle (RAR - 4.571)

• Clutch Transmission
  • Clutch
    Single plate dry friction type - 280 dia
  • Transmission
    Manual
  • Power Steering
    Yes
  • Gearbox
    GB 27 Gear Box , 5 Forward + 1 Reverse
  • Steering
    Tilt & Telescope Power Steering (Dia - 420mm)

• Body Cabin
  • Tiltable Steering
    Yes
  • Tiltable Cabin
    Yes
  • Body Option
    Customizable body
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Arm Rest
    No

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    8.25X16 - 16
  • Rear Tyre
    8.25X16 - 16

• Others
  • Seat Type
    Melba Fabric
  • Cruise Control
    No
  • Battery
    12 V - 100 Ah
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Hill Hold
    No
  • Fog Lights
    No

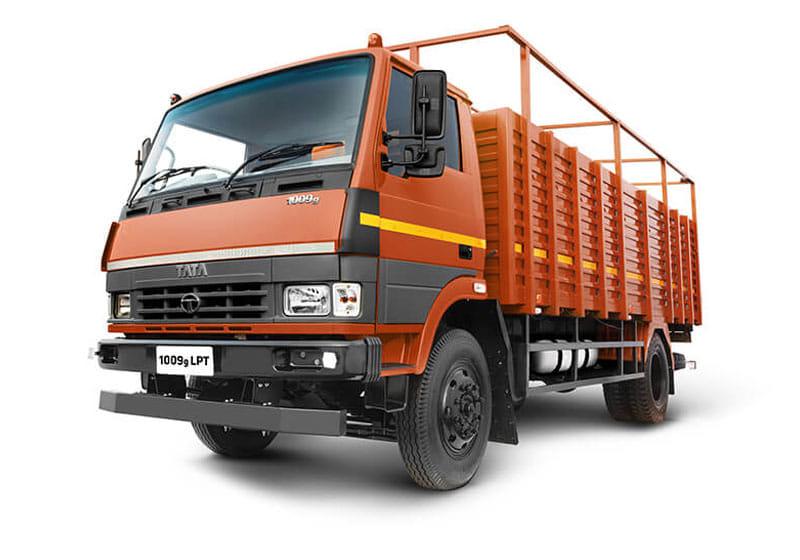

Tata 1009g LPT images
