Tata 1109g LPT

Tata 1109g LPT

No reviews yet

Write a Review

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of Tata 1109g LPT

Engine
3.8 SGI NA BS6, Spark Ignition
Power
114
GVW
11250 KG
Payload Capacity
6500 KG

Specifications of Tata 1109g LPT

Performance
- Engine
  3.8 SGI NA BS6, Spark Ignition
- Engine Norm
  BS-6 Phase 2
- Gradeability
  21 (%)
- Power
  114
- Engine Cylinders
  4
- Max Torque
  285 Nm
- Max Speed
  80 KMPH
- Fuel Tank
  300L & 430L water capacity Ltrs.
- GVW
  11250 KG
- Payload Capacity
  6500 KG
- Mileage
  7.5 KMPL
Dimensions
- Length
  6167 MM
- Width
  2117 MM
- Height
  1822 MM
- Wheelbase
  4920 MM
- Ground Clearance
  217 MM
- Minimum Turning Radius
  8750 MM
Brakes Suspension
- Brakes
  Dual Circuit Full Air S Cam Brakes With Auto Slack Adjuster (Drum - Drum) and ABS
- Parking Brakes
  Yes
- Rear Axle
  TATA RA1068 Fully Floating Benjo Axle (RAR - 4.857)
- Front Suspension
  Semi elliptical leaf spring with hydraulic double acting telescopic shock absorbers
- Rear Suspension
  Semi-elliptical Leaf spring
- Abs
  No
Clutch Transmission
- Clutch
  Single plate dry friction type - 280 dia
- Gearbox
  GB 27 Gear Box 5 Forward + 1 Reverse
- Steering
  Tilt & Telescope Power Steering (Dia - 420mm)
- Transmission
  Manual
- Power Steering
  Yes
Body Cabin
- Body Option
  Box body
- Chassis Type
  Chassis with Cabin
- Seating Capacity
  Driver +1 Passenger
- Cabin Type
  Day Cabin
- Tiltable Steering
  Yes
- Arm Rest
  No
Tyre
- Front Tyre
  8.25x16 - 16(Bias)
- Rear Tyre
  8.25x16 - 16(Bias)
- Tubeless Tyre
  No
Others
- Air Condition
  No
- Seat Belts
  Yes
- Seat Type
  Standard
- Hill Hold
  No
- Fog Lights
  No
- Driver Info Display
  Yes
- Battery
  12 V - 100 Ah
- Adjustable Driver Seat
  Yes
- Navigation System
  No
- Telematics
  No
- Cruise Control
  No

Tata 1109g LPT Brochure

Download the brochure in just one click to view Tata 1109g LPT price, specs and features of all the variants.

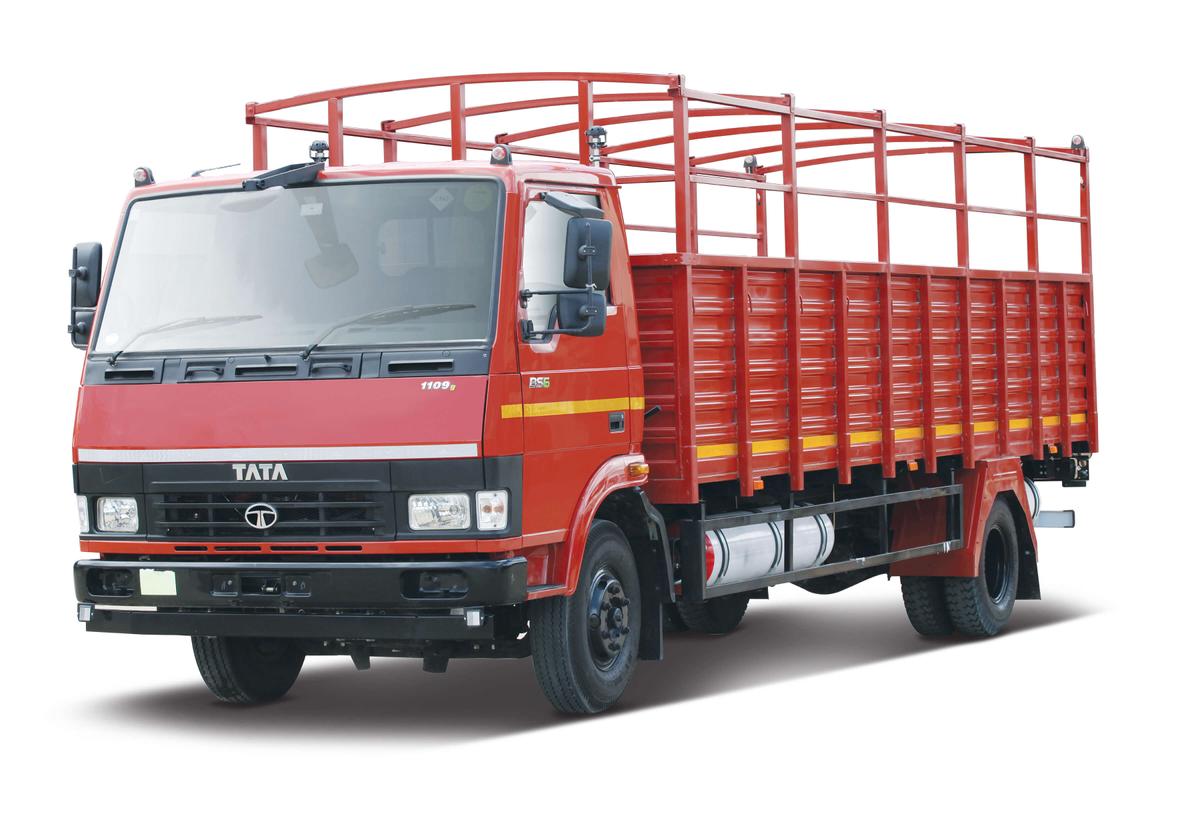

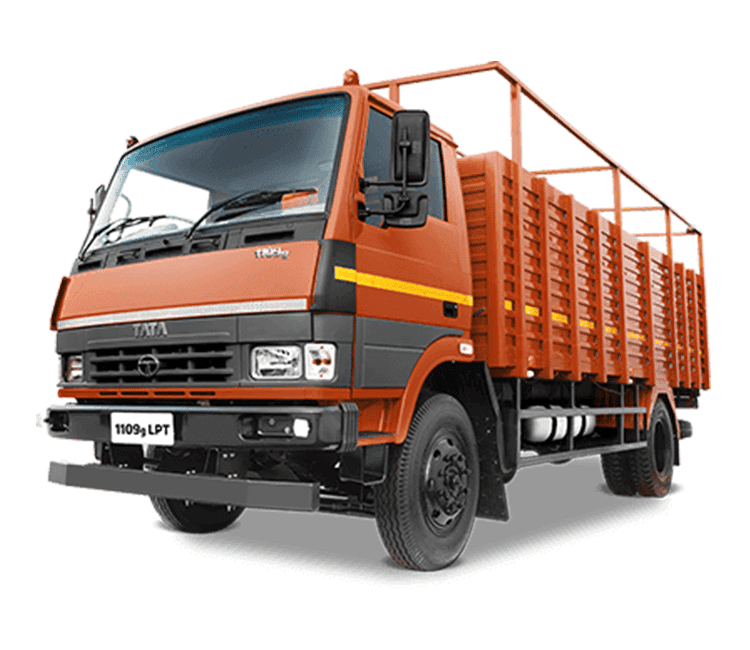

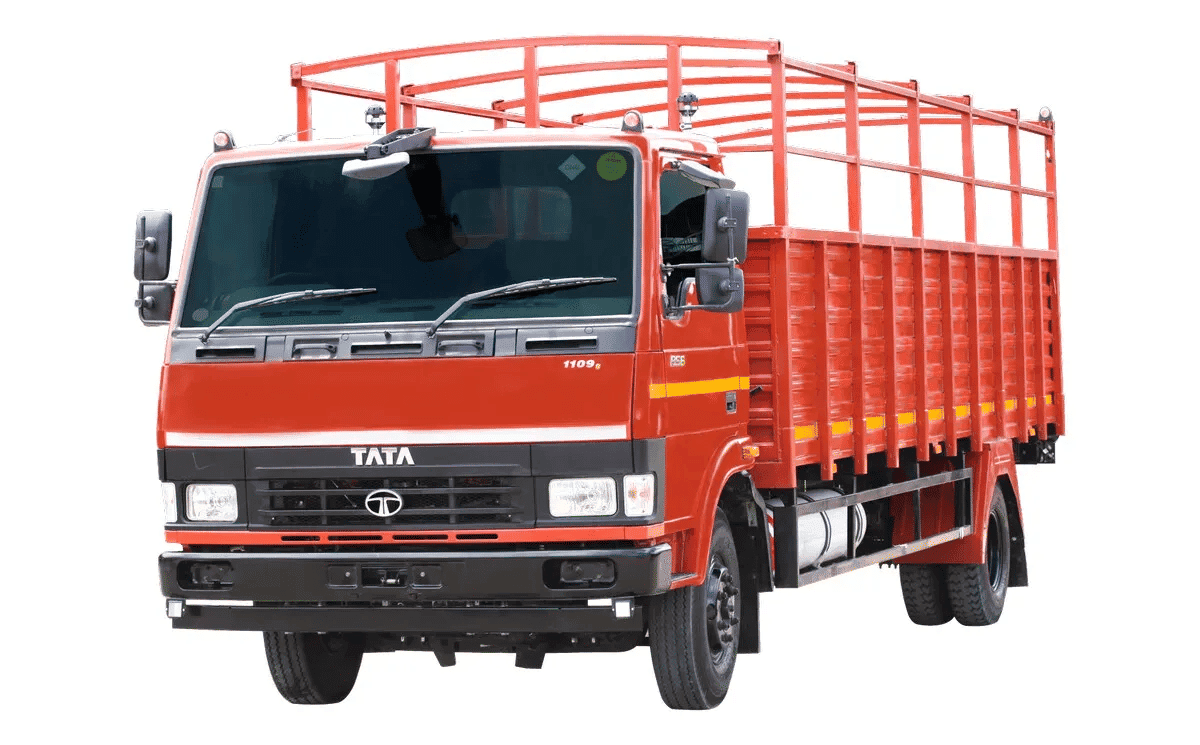

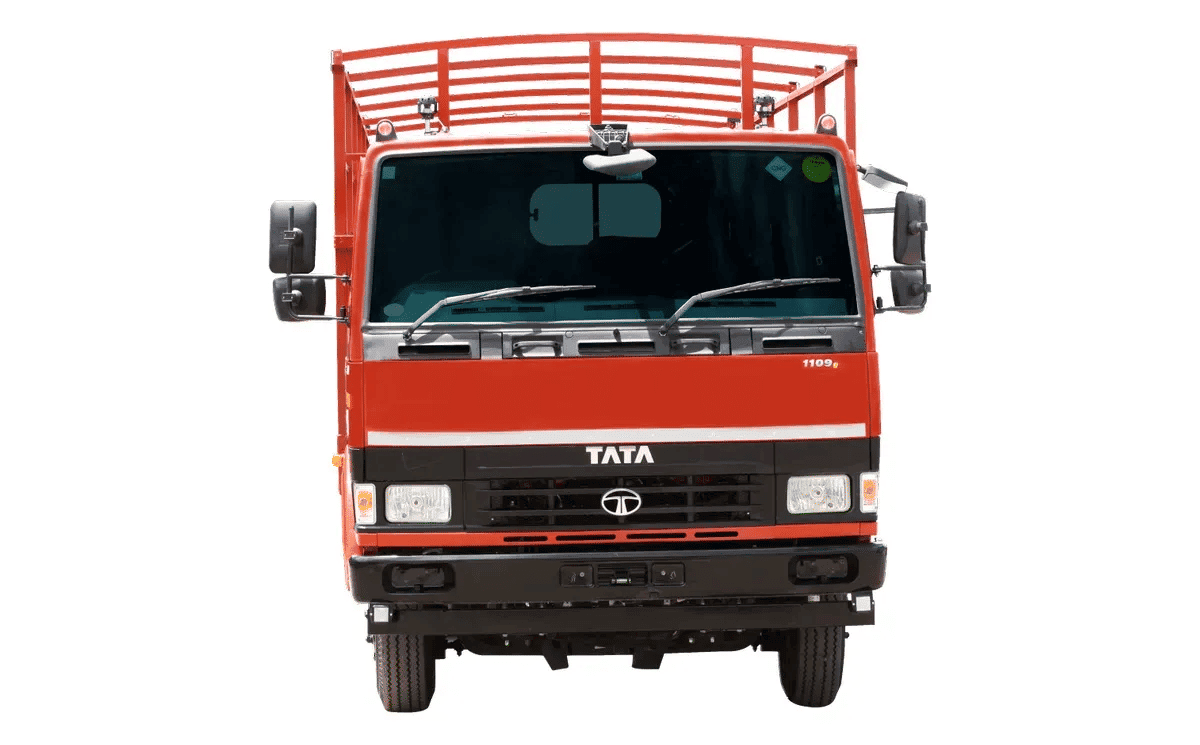

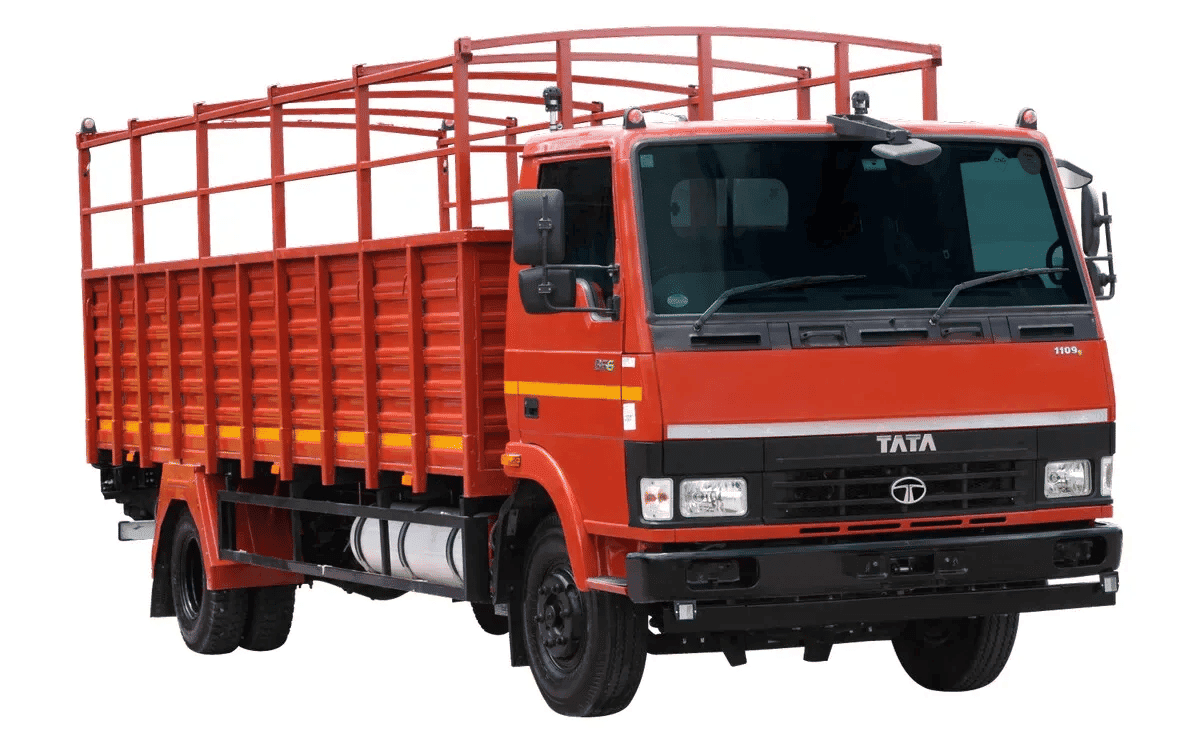

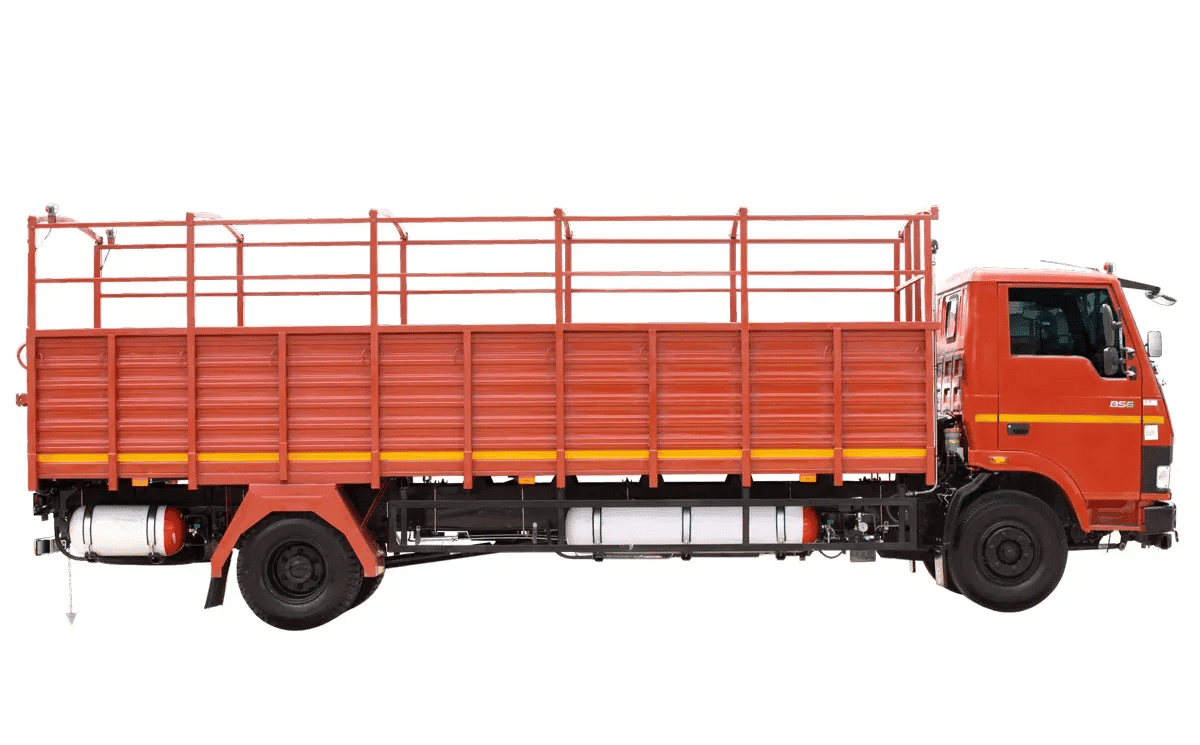

Tata 1109g LPT images

Tata 1109g LPT

Tata 1109g LPT

Tata 1109g LPT

Tata 1109g LPT

Tata 1109g LPT

Tata 1109g LPT

Tata 1109g LPT User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

How many variants does the Tata 1109g LPT come in?
The Tata 1109g LPT is available in 4 variant(s). Variants differ in features, electronics, and pricing.
What is the ground clearance of the Tata 1109g LPT?
The ground clearance of the Tata 1109g LPT stands at 217 MM . This generous clearance helps navigate speed breakers and uneven road terrains without scratching the underbelly.
What is the maximum torque generated by the Tata 1109g LPT?
The Tata 1109g LPT produces a peak torque of 285 Nm , which ensures excellent low-end and mid-range pull, making overtaking effortless in both city and highway conditions.
