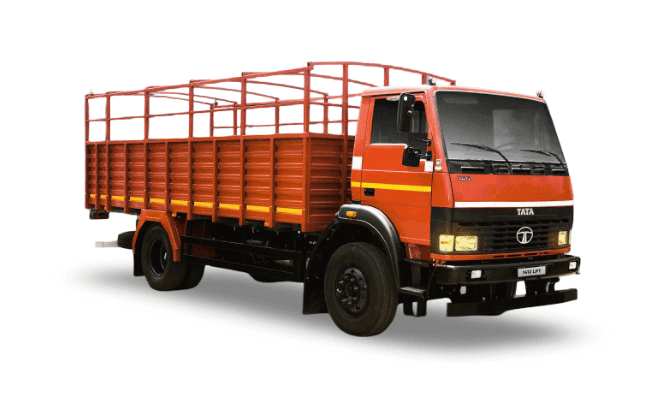

Tata 1412 LPT

Key Features of Tata 1412 LPT

• Engine

  3.3L NG In line water cooled direct Injection diesel engine with intercooler
• Power

  168
• GVW

  14250 KG
• Payload Capacity

  9500 KG

Specifications of Tata 1412 LPT

• Performance
  • Gradeability
    25 (%)
  • Max Speed
    80 KMPH
  • GVW
    14250 KG
  • Engine Norm
    BS-6 Phase 2
  • Fuel Tank
    160 Ltrs.
  • Engine Cylinders
    4
  • Max Torque
    390 Nm
  • Engine
    3.3L NG In line water cooled direct Injection diesel engine with intercooler
  • Power
    168
  • Payload Capacity
    9500 KG
  • Mileage
    6-7 KMPL

• Dimensions
  • Ground Clearance
    225 MM
  • Wheelbase
    3600 MM
  • Width
    2175 MM
  • Height
    1835 MM
  • Minimum Turning Radius
    7400 MM
  • Length
    5182 MM

• Brakes Suspension
  • Abs
    No
  • Brakes
    Air Brakes
  • Rear Suspension
    Semi elliptical Leaf spring
  • Front Axle
    Forged I beam reverse Elliot type
  • Rear Axle
    TATA RA 1009R Fully floating benjo axle
  • Parking Brakes
    Yes
  • Front Suspension
    Parabolic leaf spring, hydraulic double acting shock absorbers

• Clutch Transmission
  • Gearbox
    5 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    Single plate dry friction type - 310 mm dia

• Body Cabin
  • Tiltable Steering
    Yes
  • Body Option
    Box body
  • Tiltable Cabin
    Yes
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Arm Rest
    No

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    8.25R20 -16
  • Rear Tyre
    8.25R20 -16

• Others
  • Battery
    12 V - 100 Ah
  • Cruise Control
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Hill Hold
    No
  • Fog Lights
    No
  • Seat Type
    Melba Fabric
