Tata 609g SFC

Key Features of Tata 609g SFC

• Engine

  In 3.8 SGI
• Power

  85
• GVW

  5950 KG
• Payload Capacity

  2960 KG

Specifications of Tata 609g SFC

• Performance
  • Engine
    In 3.8 SGI
  • Engine Norm
    BS-6 Phase 2
  • Gradeability
    23 (%)
  • Power
    85
  • Engine Cylinders
    4
  • Max Torque
    285 Nm
  • Max Speed
    80 KMPH
  • Fuel Tank
    180 Ltrs.
  • GVW
    5950 KG
  • Payload Capacity
    2960 KG
  • Mileage
    9 KMPL

• Dimensions
  • Length
    5412 MM
  • Width
    2100 MM
  • Height
    2380 MM
  • Wheelbase
    3305 MM
  • Ground Clearance
    249 MM
  • Minimum Turning Radius
    6550 MM

• Brakes Suspension
  • Brakes
    Vaccum assisted- H2LS auto slack adjuster
  • Parking Brakes
    Yes
  • Rear Axle
    Banjo Type
  • Front Suspension
    Parabolic springs and 2 no hydraulic double acting telescopic type shock absorbers with antiroll bar
  • Rear Suspension
    Semi elliptical leaf spring and 2 no hydraulic double acting telescopic type shock absorber
  • Abs
    No

• Clutch Transmission
  • Clutch
    Single plate dry friction type - 280 dia
  • Gearbox
    5 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Body Option
    Deck Body
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 2 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No

• Tyre
  • Front Tyre
    8.25-16 16
  • Rear Tyre
    8.25-16 16
  • Tubeless Tyre
    No

• Others
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

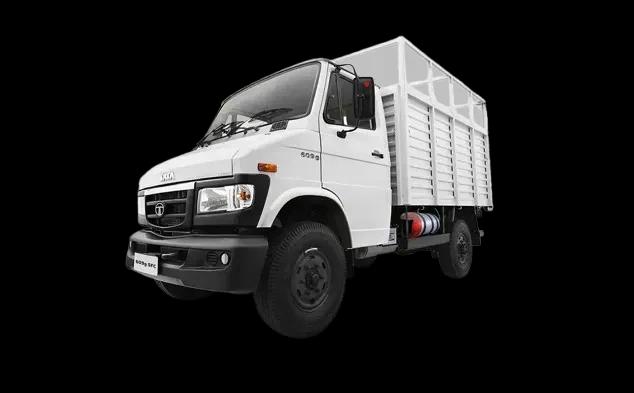

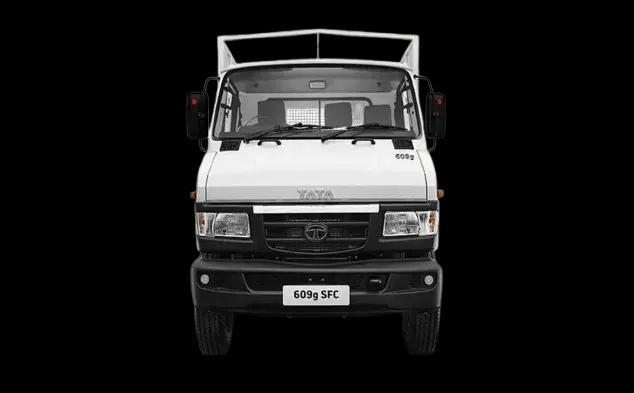

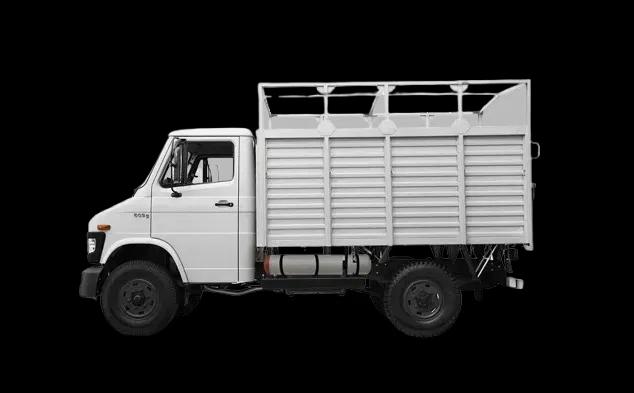

Tata 609g SFC images
