Tata 610 SFC

Key Features of Tata 610 SFC

• Engine

  4SPCR BS6
• Power

  100
• GVW

  5950 KG
• Payload Capacity

  3300 KG

Specifications of Tata 610 SFC

• Performance
  • GVW
    5950 KG
  • Payload Capacity
    3300 KG
  • Kerb Weight
    2380 KG
  • Max Torque
    300 Nm
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6 Phase 2
  • Mileage
    10 KMPL
  • Engine Cylinders
    4
  • Engine
    4SPCR BS6
  • Gradeability
    30 (%)
  • Fuel Tank
    60 Ltrs.
  • Power
    100

• Dimensions
  • Minimum Turning Radius
    6550 MM
  • Height
    2330 MM
  • Width
    2100 MM
  • Ground Clearance
    249 MM
  • Wheelbase
    3305 MM
  • Length
    5415 MM

• Brakes Suspension
  • Brakes
    Vaccum assisted- H2LS Auto Slack Adjuster brakes
  • Front Suspension
    Parabolic spring with rubber bush, 2 no hydraulic double acting shock absorbers with antiiroll bar
  • Parking Brakes
    Yes
  • Abs
    No
  • Rear Suspension
    Semi elliptical leaf spring, 2 no Hydraulic Double acting Shock Absorbers

• Clutch Transmission
  • Gearbox
    G400, 5 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    Single plate dry friction type - 280 dia

• Body Cabin
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Body Option
    Deck Body

• Tyre
  • Rear Tyre
    8.25 - 16 16
  • Front Tyre
    8.25 - 16 16
  • Tubeless Tyre
    No

• Others
  • Battery
    12V, 75 ah
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

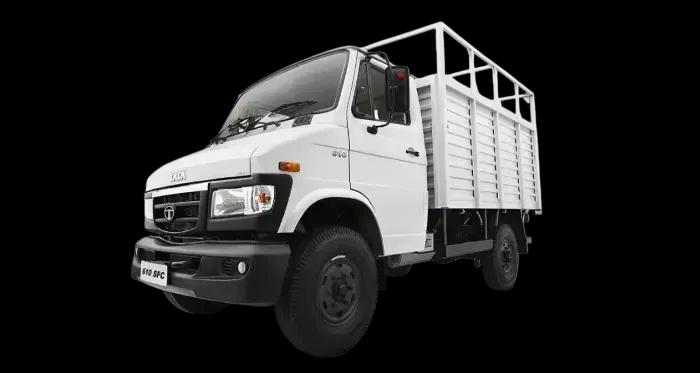

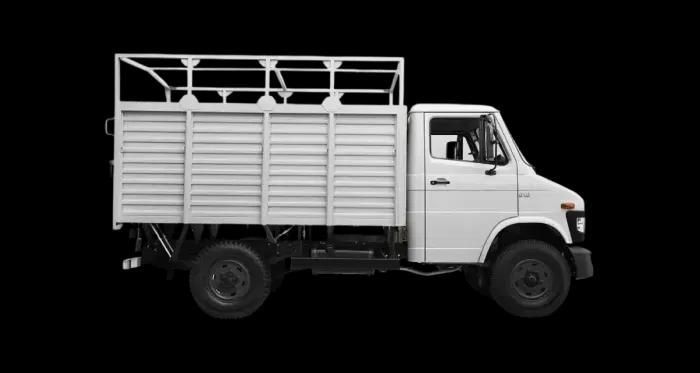

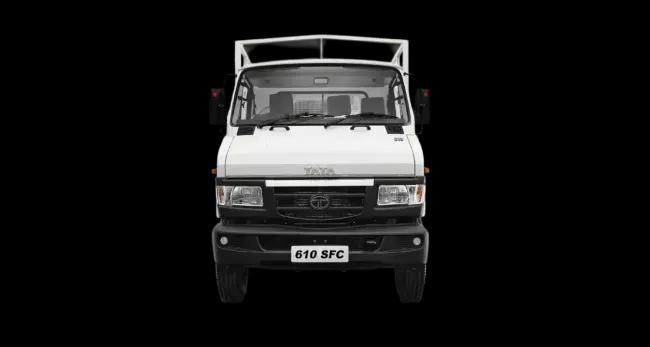

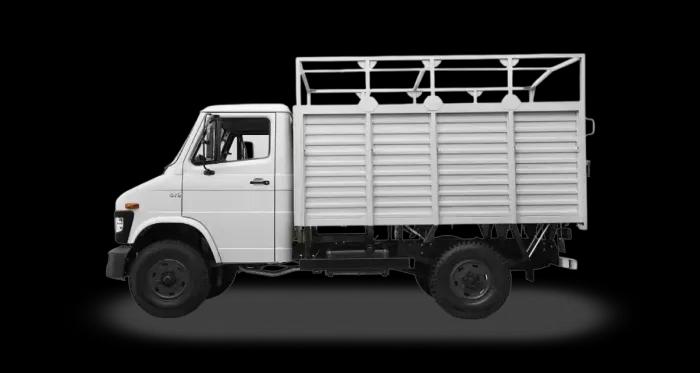

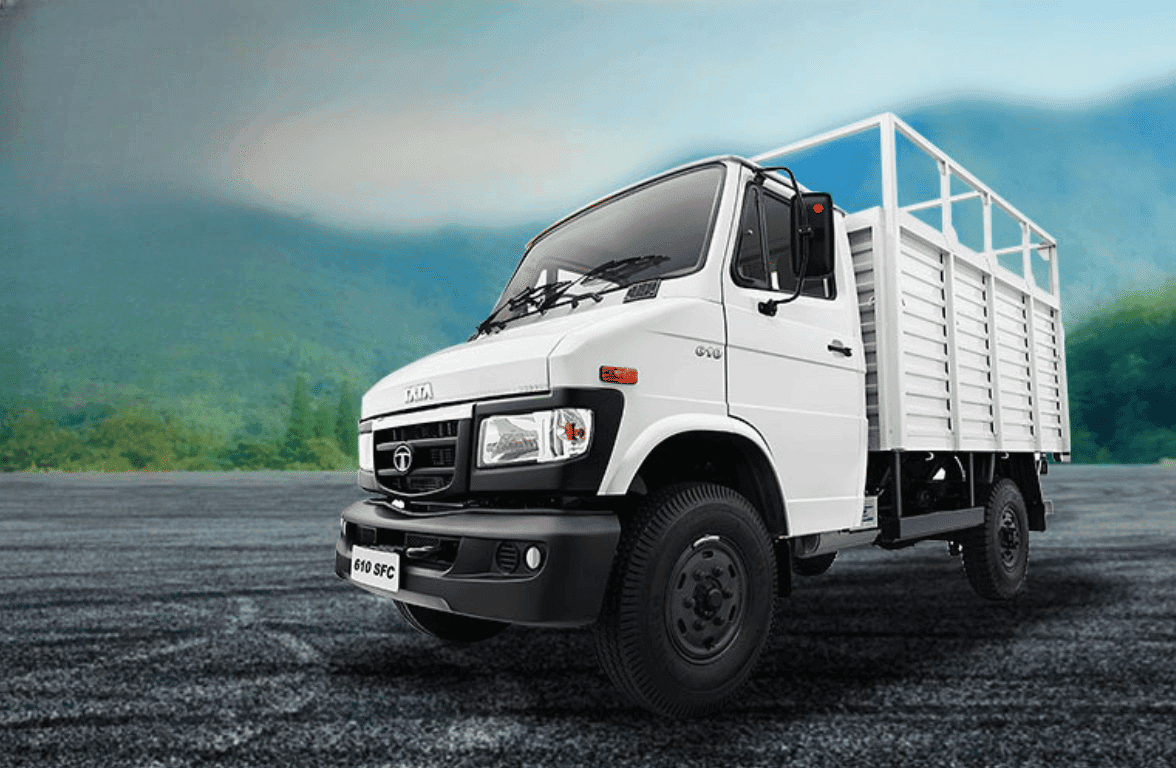

Tata 610 SFC images
