Tata 709g LPT

Tata 709g LPT

No reviews yet

Write a Review

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of Tata 709g LPT

Engine
3.8 SGI BS6 CNG
Power
85
GVW
7490 KG
Payload Capacity
4500 KG

Specifications of Tata 709g LPT

Performance
- Engine
  3.8 SGI BS6 CNG
- Engine Norm
  BS-6 Phase 2
- Gradeability
  25 (%)
- Power
  85
- Engine Cylinders
  4
- Max Torque
  285 Nm
- Max Speed
  80 KMPH
- Fuel Tank
  240 / 318 Ltrs.
- GVW
  7490 KG
- Payload Capacity
  4500 KG
- Mileage
  9 KMPL
- Kerb Weight
  3120 KG
Dimensions
- Length
  8120 MM
- Width
  2255 MM
- Height
  2940 MM
- Wheelbase
  3900 MM
- Ground Clearance
  216 MM
- Minimum Turning Radius
  6750 MM
Brakes Suspension
- Brakes
  Full S-cam air Brakes
- Parking Brakes
  Graduated valve controlled spring brake chamber integral with rear brake
- Rear Axle
  Banjo Type
- Front Suspension
  Semi elliptical leaf spring and 2 no hydraulic double acting telescopic type shock absorber
- Rear Suspension
  Semi elliptical Leaf spring
- Abs
  No
Clutch Transmission
- Clutch
  Single plate dry friction type- 280 Mm dia.
- Gearbox
  GBS27 5 Speed Manual Synchromesh Gearbox (5F, 1R), PTOP
- Steering
  Tilt and Telescopic Power Steering
- Transmission
  Manual
- Power Steering
  Yes
Body Cabin
- Body Option
  Customizable body
- Chassis Type
  Chassis with Cabin
- Seating Capacity
  Driver +1 Passenger
- Cabin Type
  Day Cabin
- Tiltable Steering
  Yes
- Arm Rest
  No
Tyre
- Front Tyre
  8.25-16 16
- Rear Tyre
  8.25-16 16
- Tubeless Tyre
  No
Others
- Air Condition
  Yes
- Seat Belts
  Yes
- Seat Type
  Standard
- Hill Hold
  No
- Fog Lights
  No
- Driver Info Display
  Yes
- Battery
  24 V - 100 Ah
- Adjustable Driver Seat
  Yes
- Navigation System
  No
- Telematics
  No
- Cruise Control
  No

Tata 709g LPT Brochure

Download the brochure in just one click to view Tata 709g LPT price, specs and features of all the variants.

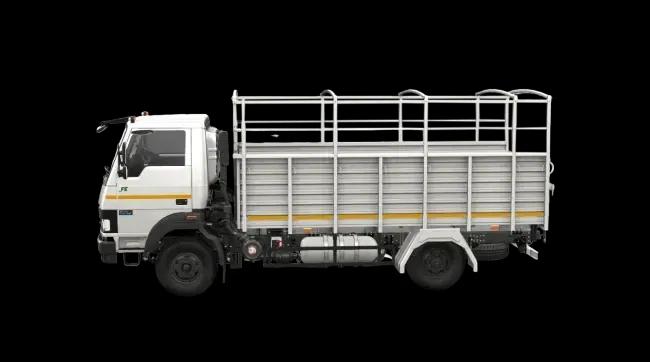

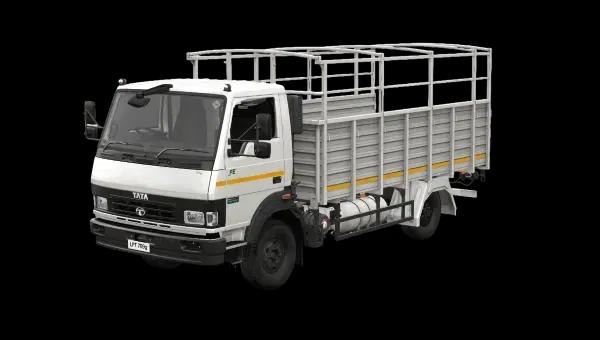

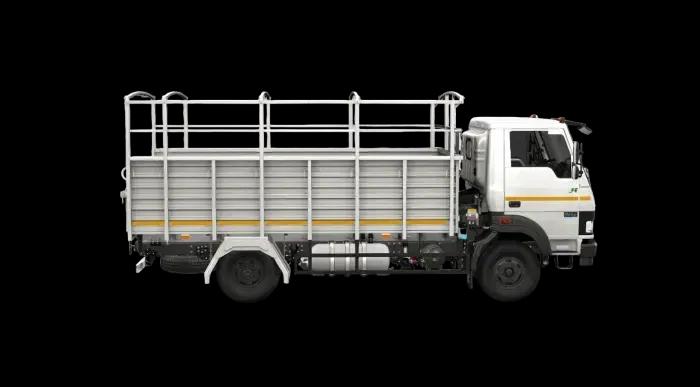

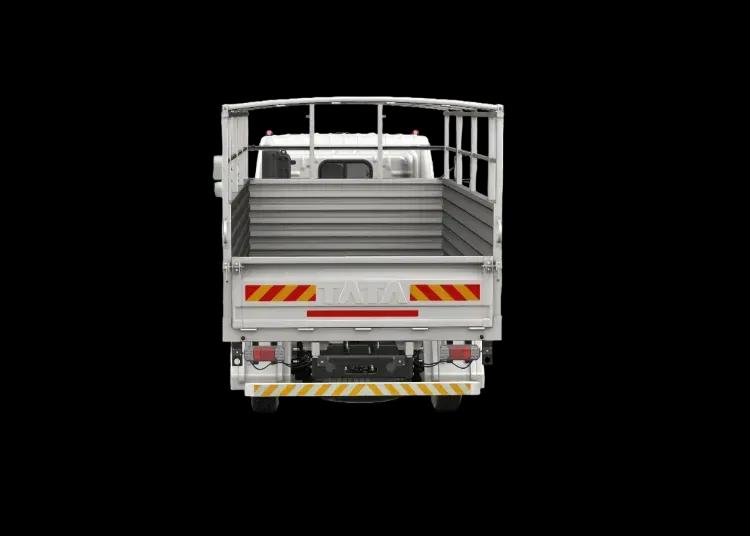

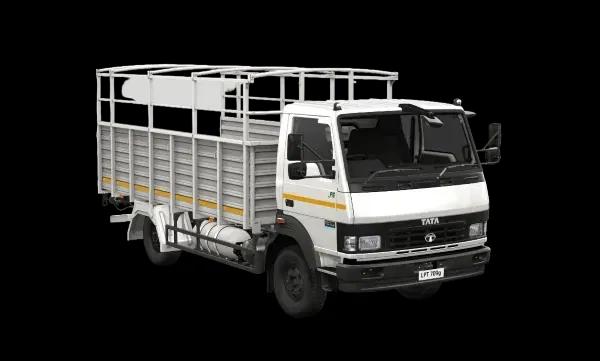

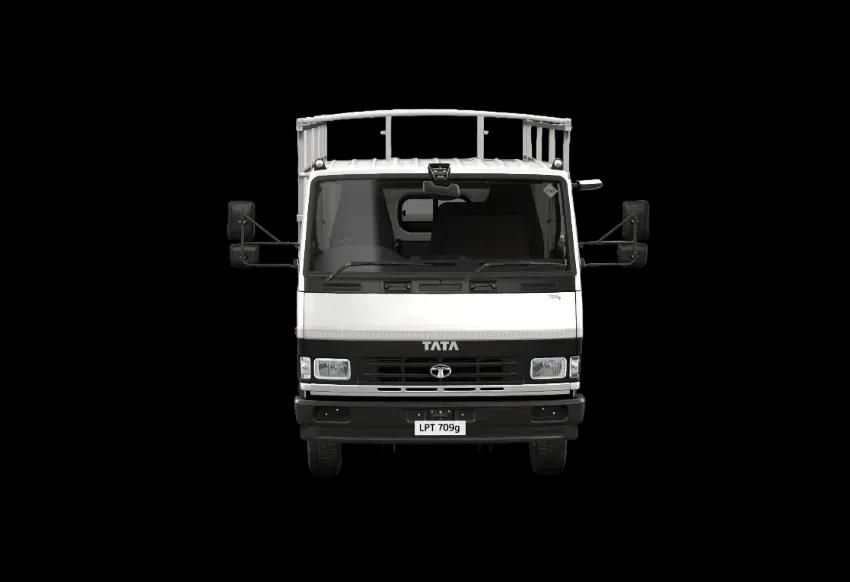

Tata 709g LPT images

Tata 709g LPT

Tata 709g LPT

Tata 709g LPT

Tata 709g LPT

Tata 709g LPT

Tata 709g LPT

Tata 709g LPT User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

How many variants does the Tata 709g LPT come in?
The Tata 709g LPT is available in 4 variant(s). Variants differ in features, electronics, and pricing.
What is the ground clearance of the Tata 709g LPT?
The ground clearance of the Tata 709g LPT stands at 216 MM . This generous clearance helps navigate speed breakers and uneven road terrains without scratching the underbelly.
What is the kerb weight of the Tata 709g LPT?
The kerb weight of the Tata 709g LPT is 3120 KG . The well-optimized weight distribution helps maintain nimble handling, stability at high speeds, and better maneuverability in heavy traffic.
What is the maximum torque generated by the Tata 709g LPT?
The Tata 709g LPT produces a peak torque of 285 Nm , which ensures excellent low-end and mid-range pull, making overtaking effortless in both city and highway conditions.
