Tata Ace Gold

Tata Ace Gold

No reviews yet

Write a Review

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of Tata Ace Gold

Engine
Tata 275 Gasoline MPFI, 4 stroke water cooled
Power
30
GVW
1615 KG
Payload Capacity
750 KG

Specifications of Tata Ace Gold

Performance
- Engine
  Tata 275 Gasoline MPFI, 4 stroke water cooled
- Engine Norm
  BS-6
- Gradeability
  30 (%)
- Power
  30
- Engine Cylinders
  2
- Max Torque
  55 Nm
- Max Speed
  70 KMPH
- Fuel Tank
  26 Ltrs.
- GVW
  1615 KG
- Payload Capacity
  750 KG
- Mileage
  21-22 KMPL
- Kerb Weight
  865 KG
Dimensions
- Length
  3800 MM
- Width
  1500 MM
- Height
  1840 MM
- Wheelbase
  2100 MM
- Ground Clearance
  160 MM
- Minimum Turning Radius
  4300 MM
Brakes Suspension
- Brakes
  Disc brakes (C51 Caliper), Drum brakes 200mm dia. x 30mm
- Parking Brakes
  Yes
- Front Suspension
  Parabolic leaf spring
- Rear Suspension
  Semi elliptical Leaf spring
- Abs
  No
Clutch Transmission
- Clutch
  Single plate dry friction diaphragm type
- Gearbox
  GBS 65, 5 Forward + 1 Reverse
- Steering
  Mechanical, variable ratio (23.1 to 28.9:1) Variable, 380 mm dia
- Transmission
  Manual
- Power Steering
  No
Body Cabin
- Body Option
  Deck Body
- Chassis Type
  Chassis with Cabin
- Seating Capacity
  Driver + 1 Passenger
- Cabin Type
  Day Cabin
- Tiltable Steering
  No
- Arm Rest
  No
Tyre
- Front Tyre
  145R12 LT 8 RADIAL
- Rear Tyre
  145R12 LT 8 RADIAL
- Tubeless Tyre
  No
Others
- Air Condition
  No
- Seat Belts
  Yes
- Seat Type
  Standard
- Hill Hold
  No
- Fog Lights
  No
- Driver Info Display
  Yes
- Adjustable Driver Seat
  Yes
- Navigation System
  No
- Telematics
  No
- Cruise Control
  No

Tata Ace Gold Brochure

Download the brochure in just one click to view Tata Ace Gold price, specs and features of all the variants.

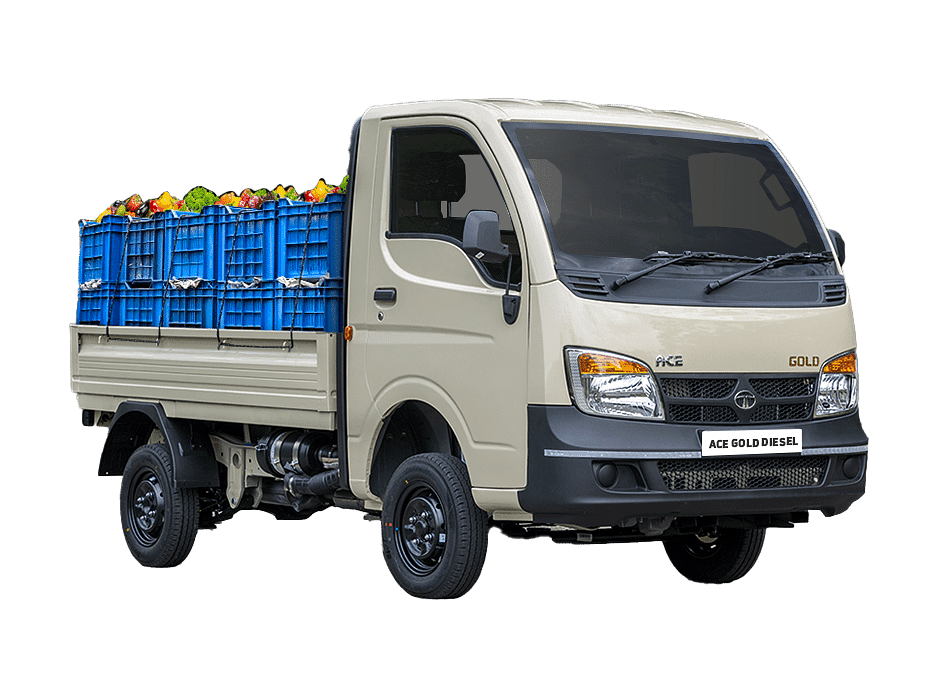

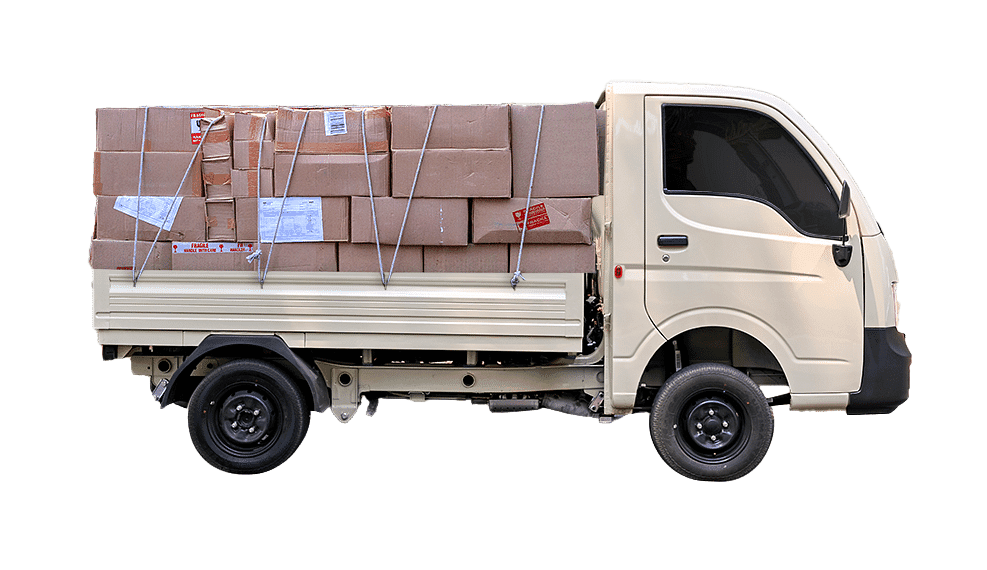

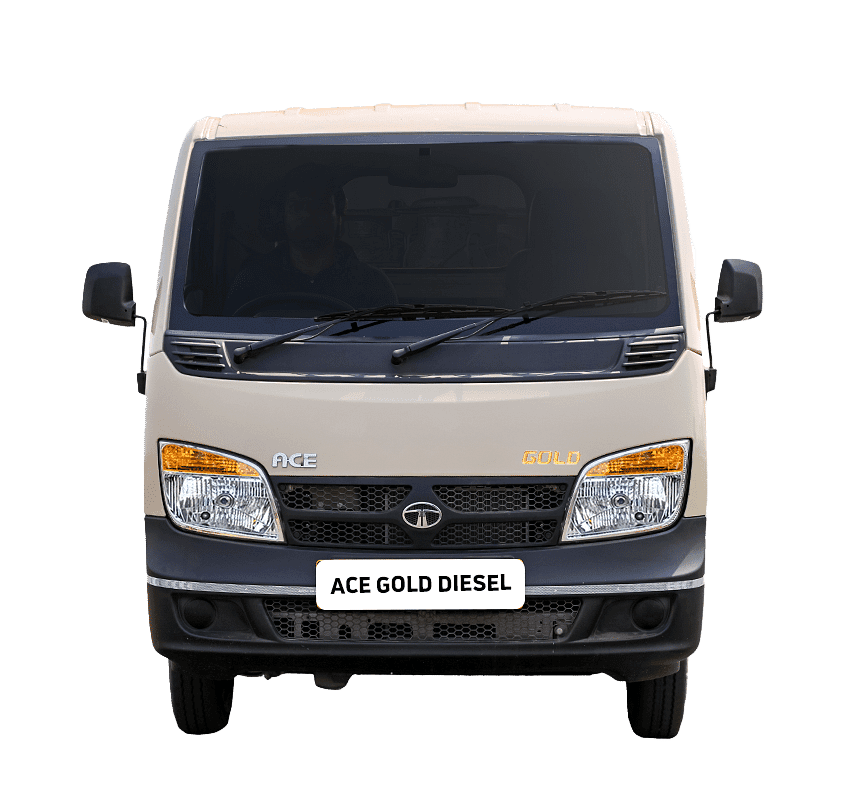

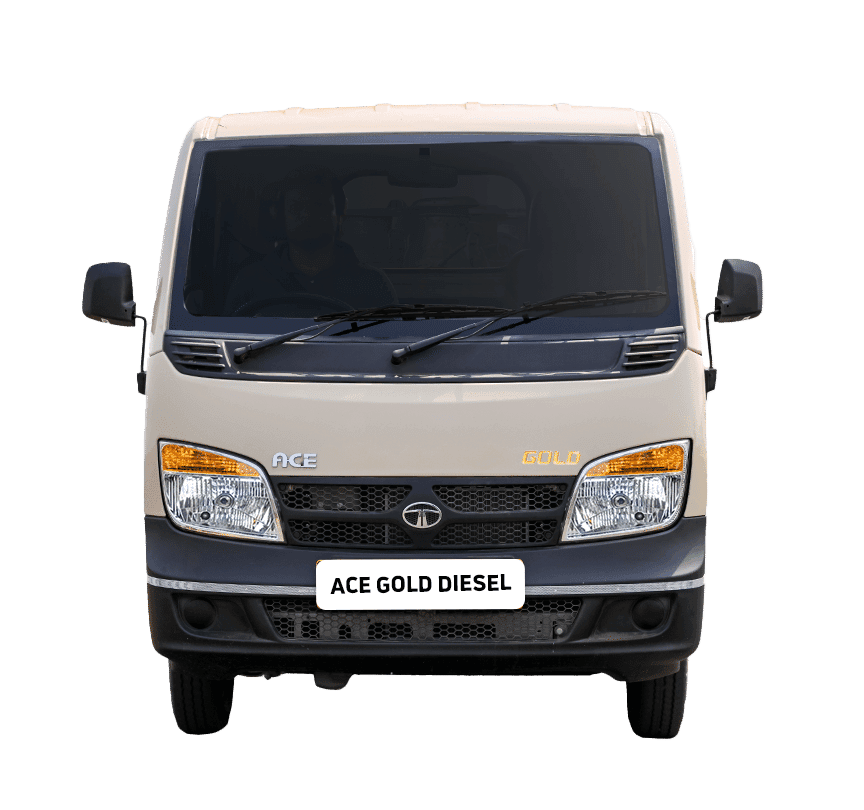

Tata Ace Gold images

Tata Ace Gold

Tata Ace Gold

Tata Ace Gold

Tata Ace Gold

Tata Ace Gold User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

How many variants does the Tata Ace Gold come in?
The Tata Ace Gold is available in 1 variant(s). Variants differ in features, electronics, and pricing.
What is the ground clearance of the Tata Ace Gold?
The ground clearance of the Tata Ace Gold stands at 160 MM . This generous clearance helps navigate speed breakers and uneven road terrains without scratching the underbelly.
What is the kerb weight of the Tata Ace Gold?
The kerb weight of the Tata Ace Gold is 865 KG . The well-optimized weight distribution helps maintain nimble handling, stability at high speeds, and better maneuverability in heavy traffic.
What is the maximum torque generated by the Tata Ace Gold?
The Tata Ace Gold produces a peak torque of 55 Nm , which ensures excellent low-end and mid-range pull, making overtaking effortless in both city and highway conditions.
