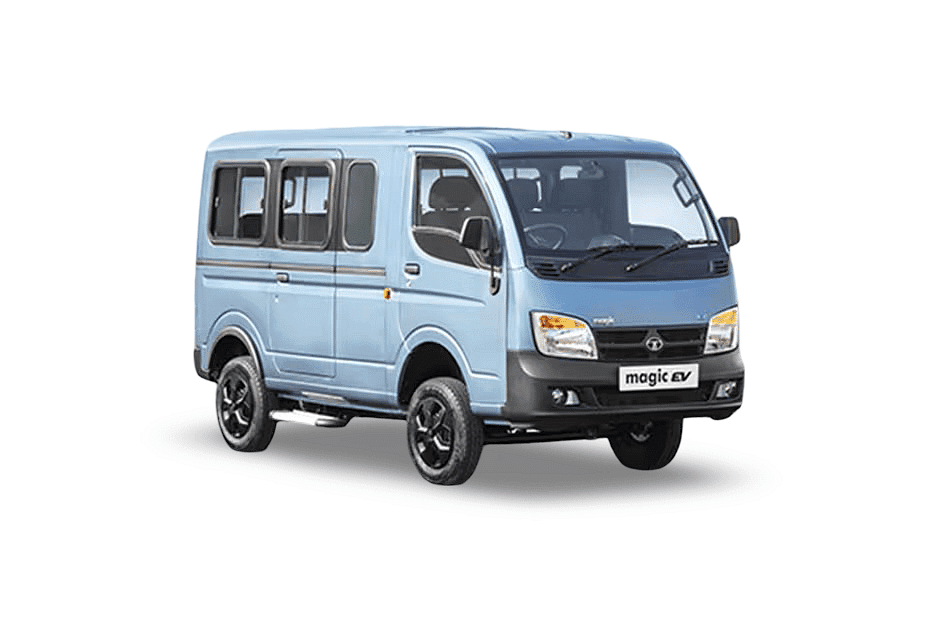

Tata Magic EV

No reviews yet

Write a Review

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of Tata Magic EV

Specifications of Tata Magic EV

Performance
- Fuel Type
  Electric
- Max Torque
  90 Nm
- Max Speed (km/h)
  80
- Turning Radius (mm)
  8600
- Battery Capacity
  14-20kWh
- Product Type
  L5M (High Speed Passenger Carrier)
- Carrier Type
  Passenger Carrier
- Max Power
  26-31 kW
- Range
  100-140
- Type of Motor
  Advanced battery cooling system for safe operations, IP 67 rated water and dust proof drive parts
Dimension
- Overall Length (mm)
  3790
- Overall Width (mm)
  1500
- Overall Height (mm)
  1890
- Ground Clearance (mm)
  160
- Wheelbase (mm)
  2100
- Axle Configuration
  4x2
Transmission & Loading Capacity
- Transmission
  Single Speed
- Payload (Kgs)
  825 Kgs
- GVW / GCW (Kgs)
  2180 kg
- Kerb Weight (Kgs)
  1355
- Gear Box
  1 Forward + 1 Reverse
- Power Steering
  Yes
Features
- Steering
  Power Steering
- A/C
  No
- Cruise Control
  No
- Navigation System
  No
- Telematics
  No
- Arm-rest
  No
- Seat Type
  Standard
- Driver Information Display
  Yes
- Adjustable Driver Seat
  No
- Seating Capacity
  D+10
- Tubeless Tyres
  Yes
- Seat Belts
  Yes
- Hill Hold
  No
Brakes & Suspension
- Brakes
  Hydraulic drum brake
- Front Suspension
  Semi elliptical leaf spring at front and rear
- Rear Suspension
  Semi elliptical leaf spring at front and rear
- ABS
  Yes
- Parking Brakes
  Reverse camera
- Front Axle
  leaf spring suspension
Body Option & Cabin Type
- Chassis Type
  Chassis with Cabin
- Body Option
  Fully Built
- Cabin Type
  Day Cabin
- Tiltable Cabin
  No
Tyres
- Number of Tyre
  4
- Rear Tyre
  155 R 13 LT
- Front Tyre
  155 R 13 LT
Others
- Chassis
  Yes
- Battery(Volts)
  48 V
- Fog Lights
  Yes
- Loading Platform Area(Sq.ft)
  50
Charging
- Charging Time
  1.1 - 1.7hr

Tata Magic EV Brochure

Download the brochure in just one click to view Tata Magic EV price, specs and features of all the variants.

Tata Magic EV images

Tata Magic EV User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

How much time does the Tata Magic EV take to charge?
The Tata Magic EV takes approximately 1.1 - 1.7hr to charge. Fast charging options, if supported, can significantly reduce charging duration.
What is the battery capacity of the Tata Magic EV?
The Tata Magic EV is equipped with a 14-20kWh lithium-ion battery pack, designed to provide consistent power delivery and optimal thermal management.
What is the maximum power of the Tata Magic EV?
The electric motor of the Tata Magic EV delivers a maximum power output of 26-31 kW , enabling quick acceleration and smooth power delivery.
What is the maximum torque generated by the Tata Magic EV?
The Tata Magic EV generates a peak torque of 90 Nm available instantly from standstill, providing excellent initial pickup and effortless overtaking capabilities.
