Tata Prima 3530.K

Key Features of Tata Prima 3530.K

• Engine

  Cummins ISBe 6.7 Litre
• Power

  300
• GVW

  35000 KG

Specifications of Tata Prima 3530.K

• Performance
  • Engine
    Cummins ISBe 6.7 Litre
  • Engine Norm
    BS-6 Phase 2
  • Gradeability
    53 (%)
  • Power
    300
  • Engine Cylinders
    6
  • Max Torque
    1100 Nm
  • Max Speed
    80 KMPH
  • Fuel Tank
    300 Ltrs.
  • GVW
    35000 KG
  • Mileage
    2.25-3.25 KMPL

• Dimensions
  • Wheelbase
    5250 MM

• Brakes Suspension
  • Brakes
    Air Brakes
  • Parking Brakes
    Yes
  • Front Axle
    Forged I beam reverse Elliot type
  • Rear Axle
    Hub reduction, axle with interaxle and interwheel differential lock & with ABS
  • Front Suspension
    Parabolic leaf spring
  • Rear Suspension
    Heavy Duty 37T Bogie Suspension
  • Abs
    Yes

• Clutch Transmission
  • Clutch
    430 Dia , Single plate, Dry friction type, Pull type
  • Gearbox
    9 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Body Option
    Box body
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 2 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    Yes
  • Arm Rest
    No
  • Tiltable Cabin
    Yes

• Tyre
  • Front Tyre
    11 X 20
  • Rear Tyre
    11 X 20
  • Tubeless Tyre
    No

• Others
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Battery
    12 V,100 Ah
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

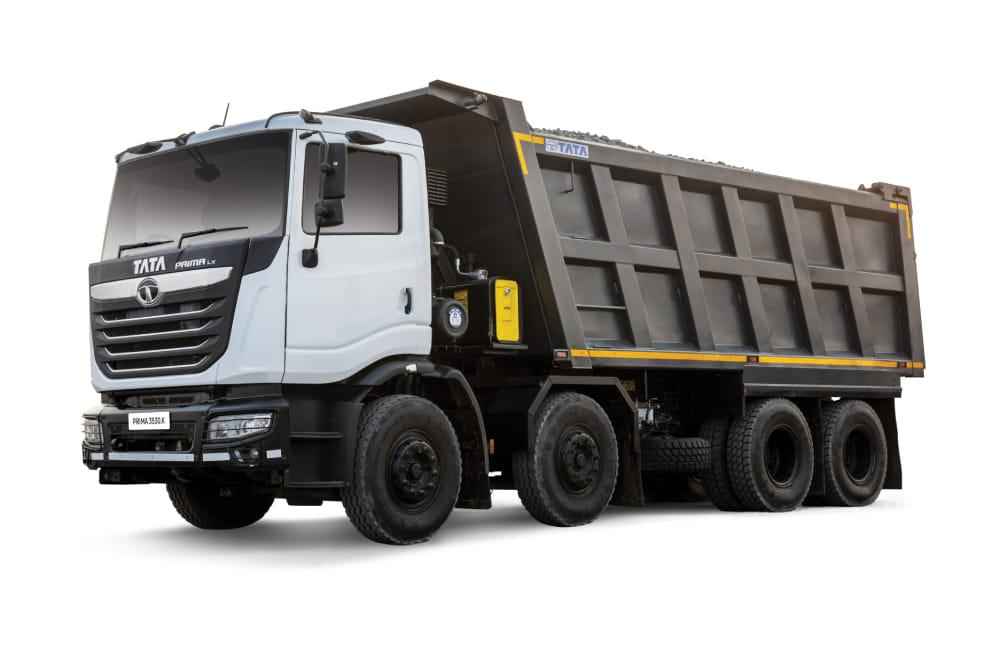

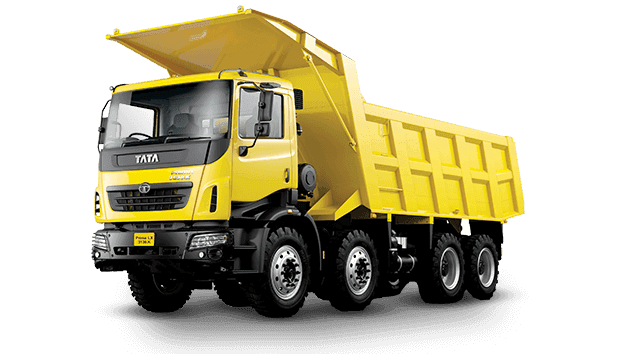

Tata Prima 3530.K images
