Tata Signa 1923.K

Key Features of Tata Signa 1923.K

• Engine

  Cummins ISBe 5.6L CRDI TCIC
• Power

  219
• GVW

  18500 KG
• Payload Capacity

  10000 KG

Specifications of Tata Signa 1923.K

• Performance
  • Engine Norm
    BS-6
  • Engine Cylinders
    6
  • GVW
    18500 KG
  • Payload Capacity
    10000 KG
  • Mileage
    3.5-4.5 KMPL
  • Engine
    Cummins ISBe 5.6L CRDI TCIC
  • Gradeability
    52 (%)
  • Max Speed
    80 KMPH
  • Power
    219
  • Max Torque
    925 Nm
  • Fuel Tank
    300,280,192 Ltrs.

• Dimensions
  • Ground Clearance
    248 MM
  • Wheelbase
    3580/4200 MM
  • Load Body Size
    10.5 Box

• Brakes Suspension
  • Parking Brakes
    Yes
  • Brakes
    New iCGT Brakes
  • Front Axle
    Heavy Duty Forged I Beam reverse Elliot Type
  • Rear Axle
    Single reduction, heavy duty
  • Front Suspension
    Leaf springs
  • Abs
    No
  • Rear Suspension
    Semi elliptical leaf springs with helper springs

• Clutch Transmission
  • Gearbox
    6 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    380 mm dia single plate dry friction

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Cabin Type
    Day Cabin
  • Arm Rest
    No
  • Seating Capacity
    Driver + 2 Passenger
  • Tiltable Steering
    Yes

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    295/95 D20
  • Rear Tyre
    295/95 D20

• Others
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

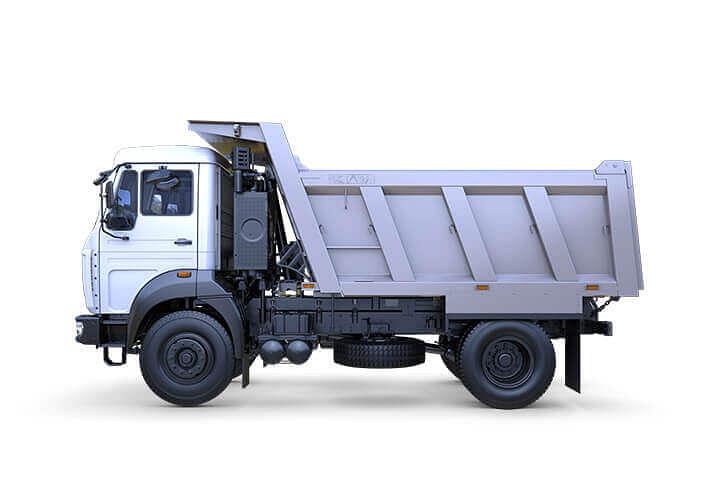

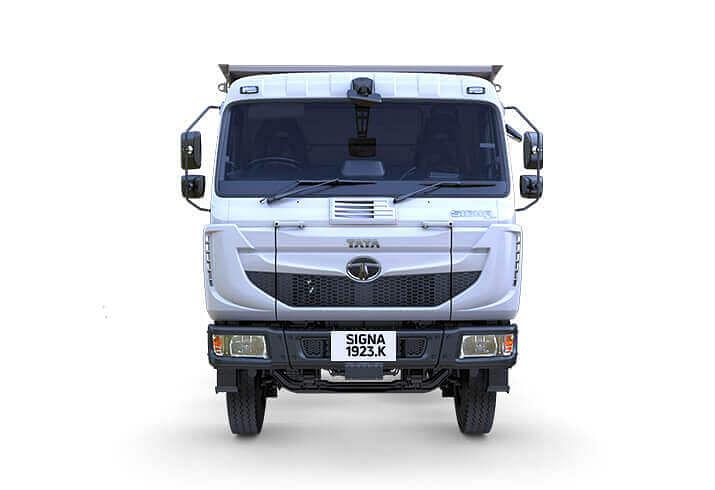

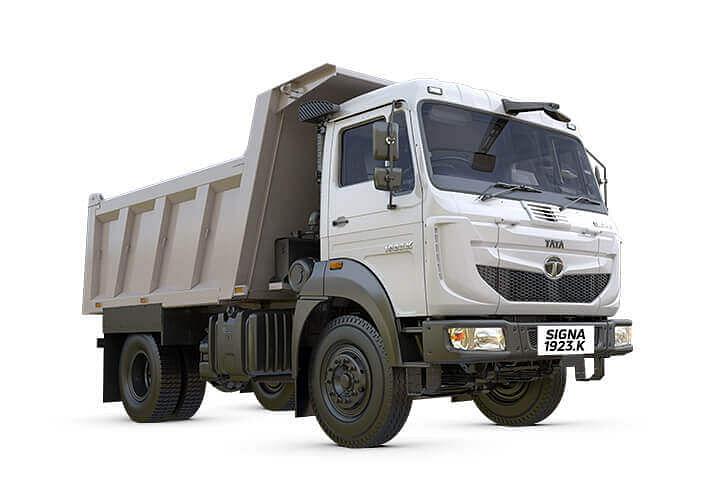

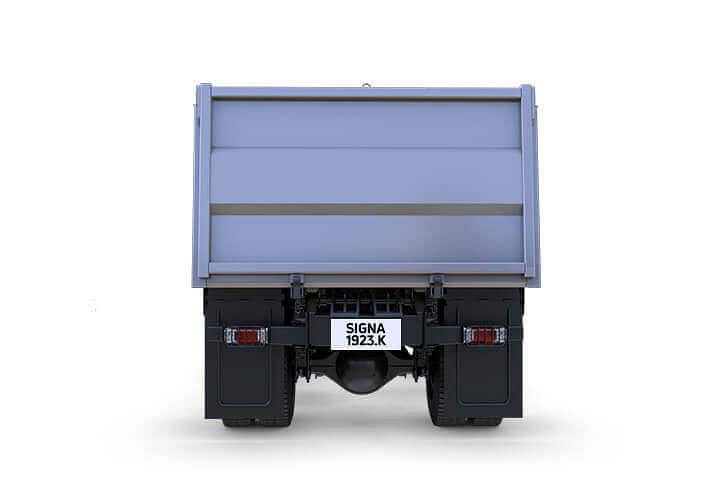

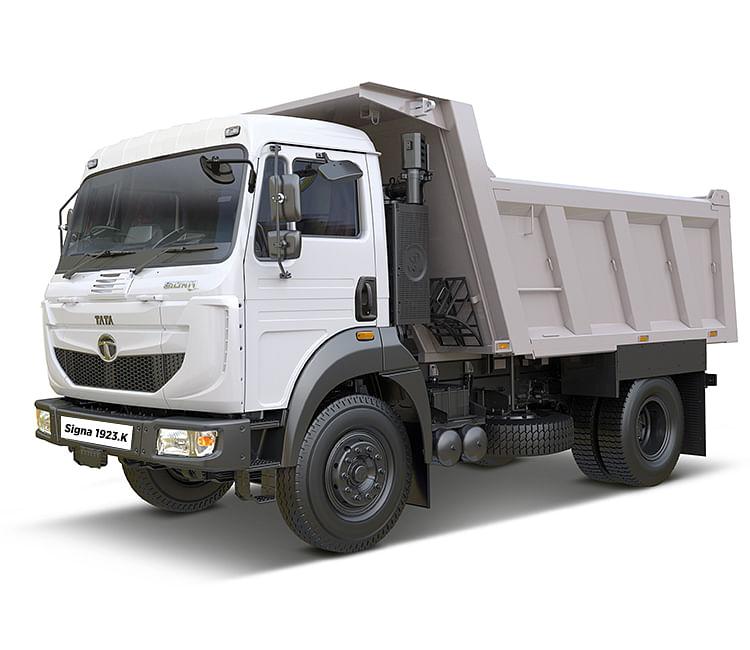

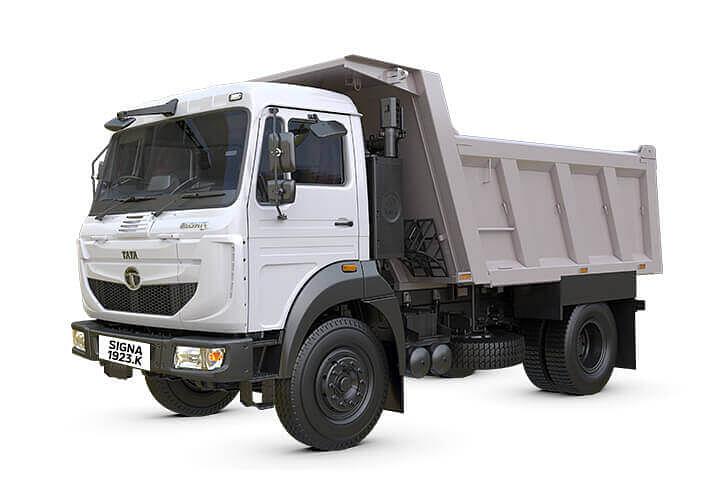

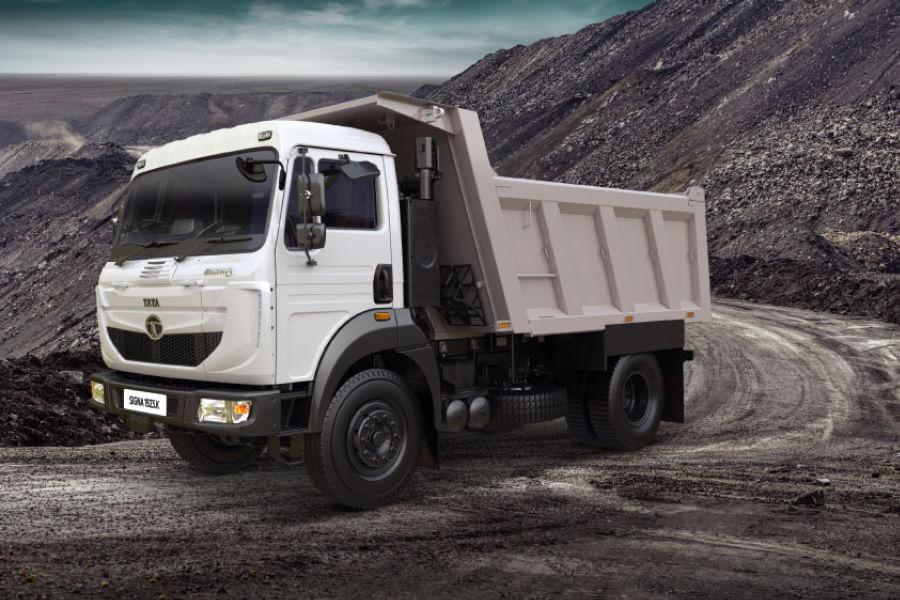

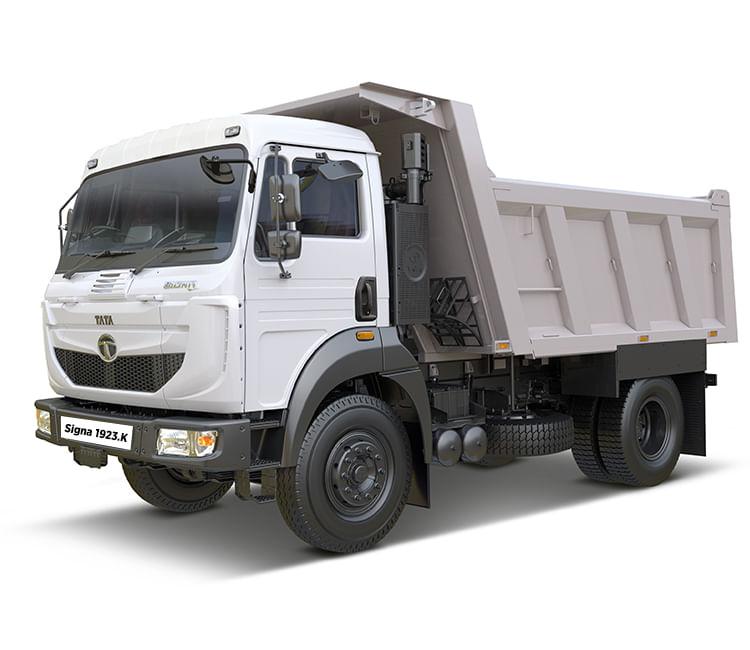

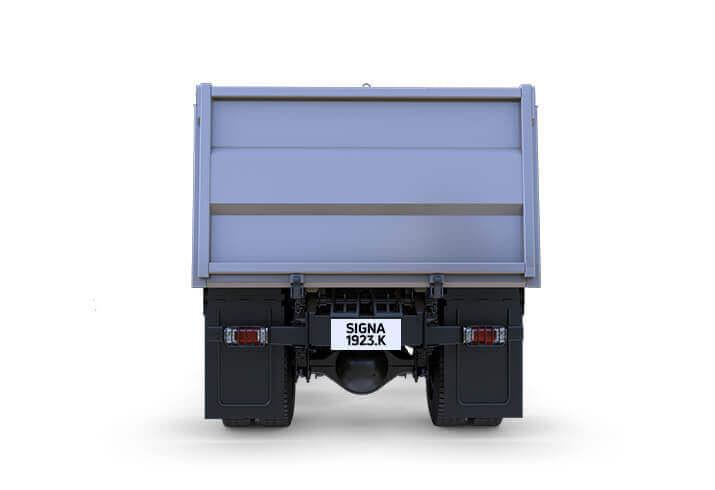

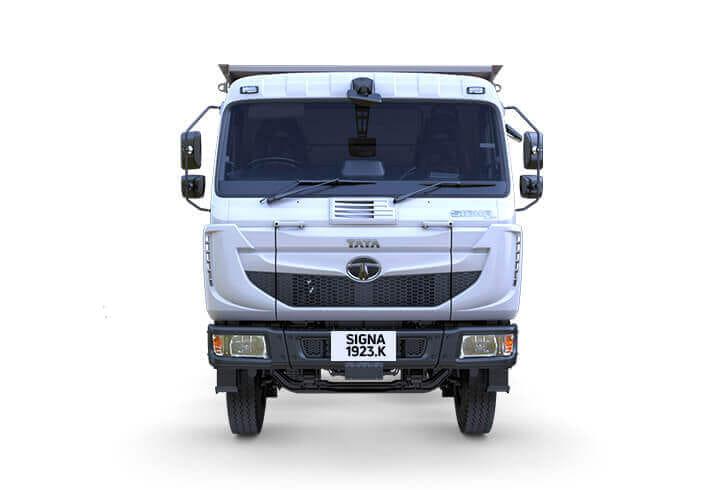

Tata Signa 1923.K images
