Tata Signa 3523.TK

Key Features of Tata Signa 3523.TK

• Engine

  Cummins ISBe 5.6L CRDI TCIC
• Power

  220
• GVW

  35000 KG
• Payload Capacity

  26000 KG

Specifications of Tata Signa 3523.TK

• Performance
  • Engine
    Cummins ISBe 5.6L CRDI TCIC
  • Engine Norm
    BS-6
  • Power
    220
  • Engine Cylinders
    6
  • Max Torque
    850 Nm
  • Fuel Tank
    300 Ltrs.
  • GVW
    35000 KG
  • Payload Capacity
    26000 KG
  • Mileage
    2.5-3.5 KMPL

• Dimensions
  • Wheelbase
    5580 MM

• Brakes Suspension
  • Parking Brakes
    Yes
  • Front Axle
    Forged I beam reverse elliot type - drop beam
  • Rear Axle
    Single reduction, extra heavy duty, hypoid gears, fully floating axle shafts with differential lock
  • Front Suspension
    Parabolic leaf spring
  • Rear Suspension
    Semi elliptical Leaf spring
  • Abs
    No

• Clutch Transmission
  • Clutch
    380 Dia Push type Single Plate Dry Friction Organic Lining
  • Gearbox
    9-Speed
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    Yes
  • Arm Rest
    No

• Tyre
  • Front Tyre
    295/90 R20
  • Rear Tyre
    295/90 R20
  • Tubeless Tyre
    No

• Others
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

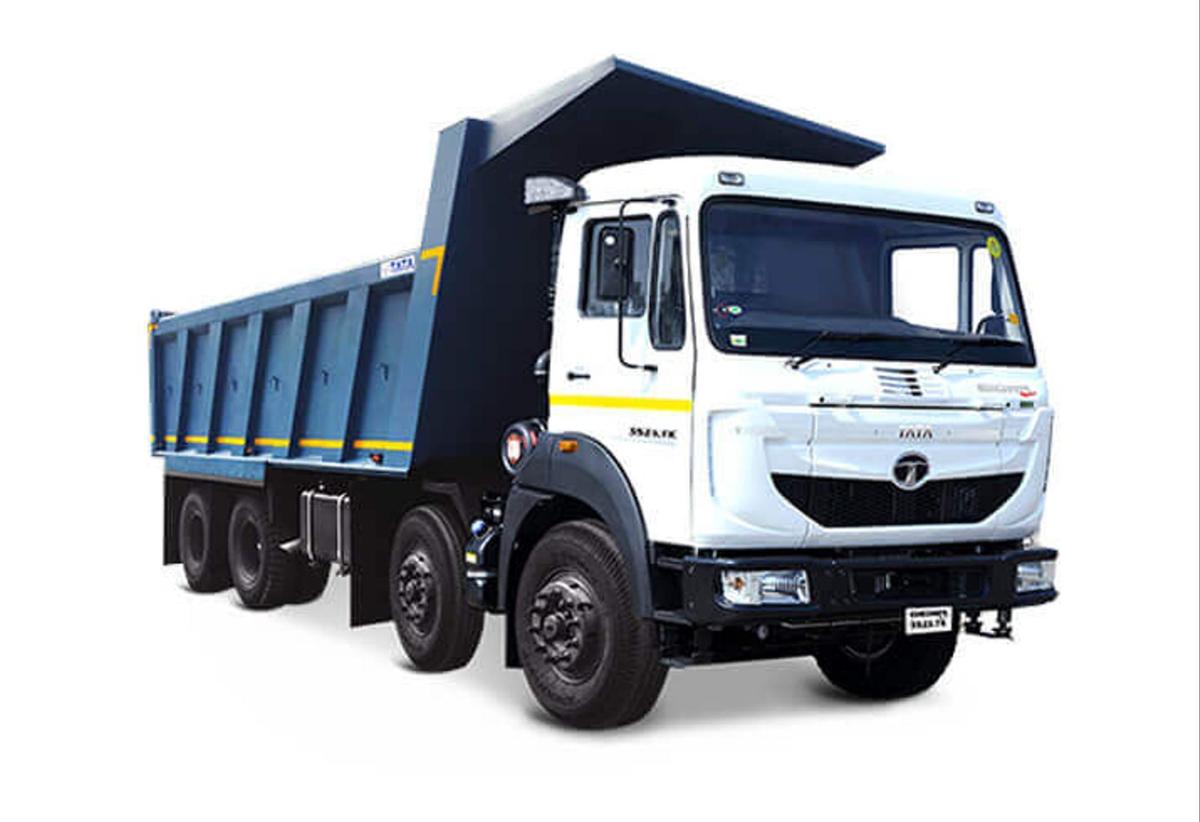

Tata Signa 3523.TK images
