Tata T.9 Ultra

Key Features of Tata T.9 Ultra

• Engine

  4SPCR
• Power

  100
• GVW

  9150 KG
• Payload Capacity

  5890 KG

Specifications of Tata T.9 Ultra

• Performance
  • Engine
    4SPCR
  • Engine Norm
    BS-6 Phase 2
  • Gradeability
    26.8 (%)
  • Power
    100
  • Engine Cylinders
    4
  • Max Torque
    300 Nm
  • Max Speed
    80 KMPH
  • Fuel Tank
    90 Ltrs.
  • GVW
    9150 KG
  • Payload Capacity
    5890 KG
  • Mileage
    9 KMPL

• Dimensions
  • Length
    8205 MM
  • Width
    1905 MM
  • Height
    2450 MM
  • Wheelbase
    4530 MM
  • Ground Clearance
    183 MM
  • Minimum Turning Radius
    9000 MM

• Brakes Suspension
  • Brakes
    Air Brakes
  • Parking Brakes
    Yes
  • Rear Axle
    Banjo Type
  • Front Suspension
    Parabolic leaf spring, hydraulic double acting shock absorbers
  • Rear Suspension
    Semi elliptical leaf spring, hydraulic double acting shock absorbers
  • Abs
    No

• Clutch Transmission
  • Clutch
    Single plate dry friction type - 280 dia
  • Gearbox
    5 Forward + 1 Reverse
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes

• Body Cabin
  • Body Option
    Customizable body
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 2 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    Yes
  • Arm Rest
    No

• Tyre
  • Front Tyre
    225/75 R 17.5, 14
  • Rear Tyre
    225/75 R 17.5, 14
  • Tubeless Tyre
    Yes

• Others
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Battery
    12 V - 100 Ah
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No

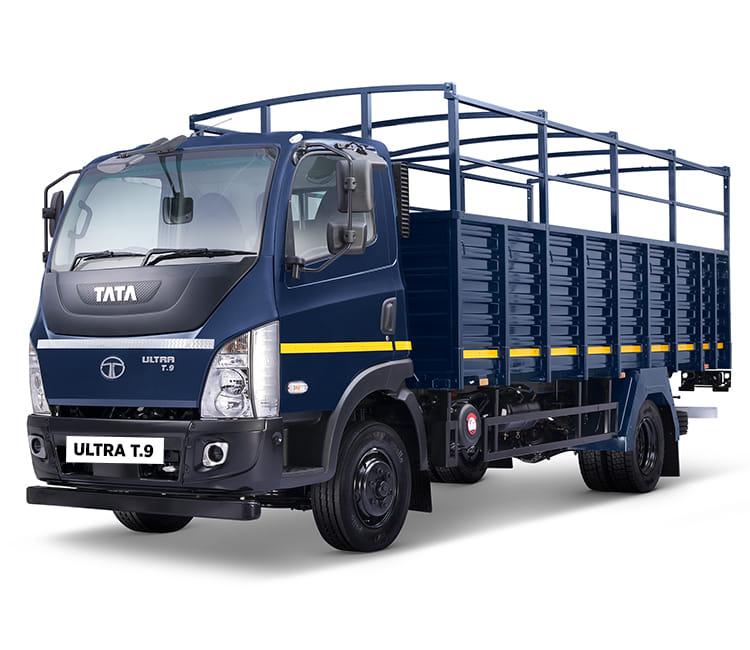

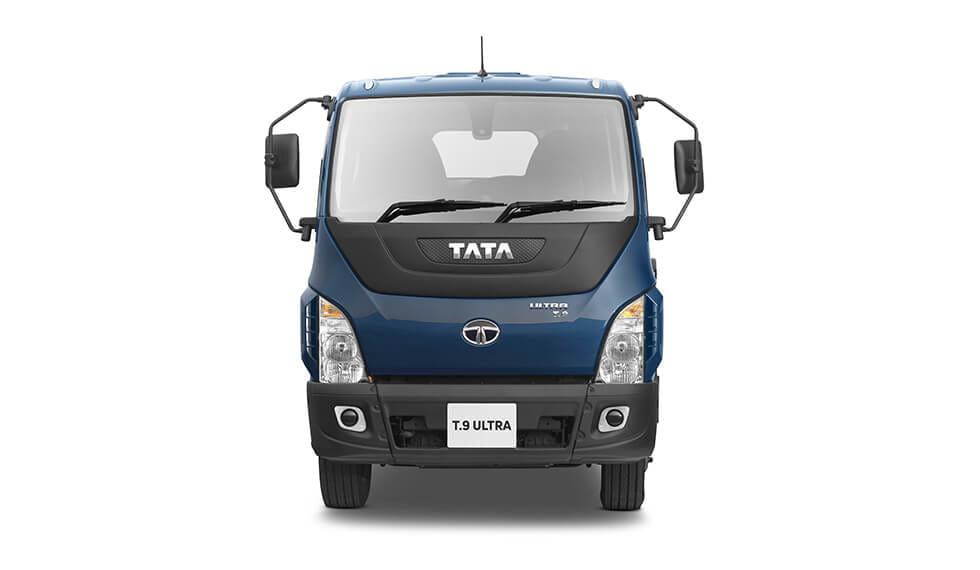

Tata T.9 Ultra images
