Tata Winger Cargo

Key Features of Tata Winger Cargo

• Engine

  Tata 2.2L
• Power

  100
• GVW

  3490 KG
• Payload Capacity

  1680 KG

Specifications of Tata Winger Cargo

• Performance
  • Fuel Tank
    60 Ltrs.
  • Engine
    Tata 2.2L
  • Payload Capacity
    1680 KG
  • GVW
    3490 KG
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6 Phase 2
  • Power
    100
  • Engine Cylinders
    4
  • Max Torque
    200 Nm
  • Kerb Weight
    1810 KG

• Dimensions
  • Ground Clearance
    185 MM
  • Width
    1905 MM
  • Minimum Turning Radius
    6750 MM
  • Length
    5458 MM
  • Height
    2460 MM
  • Wheelbase
    3488 MM

• Brakes Suspension
  • Abs
    No
  • Front Suspension
    McPherson Strut with coil spring
  • Front Axle
    Independent
  • Parking Brakes
    Yes
  • Brakes
    Vaccum assisted Hydraulic, Disc brake & Drum brake with LSPV
  • Rear Suspension
    Parabolic leaf spring with hydraulic telescopic shock absorbers

• Clutch Transmission
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    Single plate dry friction - 215 dia
  • Gearbox
    TA 70 5 Forward + 1 Reverse

• Body Cabin
  • Seating Capacity
    Driver + 2 Passenger
  • Tiltable Cabin
    No
  • Chassis Type
    Chassis with Cabin
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Body Option
    Full Built

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    195 R 15 LT
  • Rear Tyre
    195 R 15 LT

• Others
  • Telematics
    No
  • Cruise Control
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No

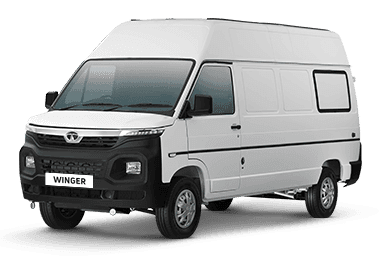

Tata Winger Cargo images
