CASE 770 FX

No reviews yet

Write a Review

The CASE 770 FX is a top-tier backhoe loader in India, celebrated for its exceptional reliability and low maintenance. Powered by a robust 74 HP engine delivering 325 NM of torque, it ensures high productivity across diverse applications. With a 0 Cum bucket capacity, 7600 Kg operating weight, and 3515 lifting capacity, this machine is built for heavy-duty tasks. Its hydraulic system with a 107 Ltr capacity enhances efficiency and reduces breakdown risks. The CASE 770 FX sports durable tyres and offers a substantial fuel tank capacity of 129 Ltr, minimizing downtime. Priced between ₹33-38 Lakh, it combines performance with value, making it an ideal choice for construction needs.

₹33 - ₹38 Lakh^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of CASE 770 FX

Specifications of CASE 770 FX

General
- Sub Category
  Backhoe Loader
Engine
- Air Intake Type
  Turbocharged Intercooled
- Gross Power
  74 Hp
- Maximum Torque
  325 NM
- Compliant
  Tier 4B
- Model
  F5HFL463A*W
- Displacement
  3400 cc
Hydraulic System
- System Relief Pressure
  195 Bar
- System Type
  Open Centre
- Pump type
  Gear
- Pump Flow
  123 lpm
Power train
- Transmission make and model
  CARRARO 2WD/4WD TLB1
- Powertrain Type
  Power Shuttle with TC
Steering
- Type
  Power Steering
- System Pressure
  140 Bar
- Unit Displacement
  125 CC
- Turning Circle Diameter Otside Bucket
  9.2 mm
- Turning circle Diameter Outside Bucket Not Braked
  11.1 mm
Loader General Dimension
- Load Over Height
  3300 mm
- Hinge Pin Height
  3600 mm
- Hinge Pin Forward Reach
  240 mm
- Bucket Capacity Std
  1.1 Cum
- Reach At Ground
  1980 mm
- Rollback At Ground
  33 Degree
- Dump Angle
  45 °
- Dump Height
  2730 mm
Backhoe Loader Dimension
- Maxd Dig Depth
  4400 mm
- Reach Ground level to rear wheel center
  6950 mm
- Max Working Height
  5500 mm
- Max Load Over Height
  3800 mm
- Dipper Configuration
  14 Feet
- Reach ground level to Swing Center
  5620 mm
- Reach at full height to slew center
  2100 mm
- Bucket Rotation
  204 Degree
Overall Dimension & Weight
- Max Operating Weight
  7600 Kg
- Wheelbase
  2180 mm
- Minimum Ground Clearance
  380 mm
- Transport Length
  5880 mm
- Width Over Stabilizer
  2270 MM
- Track Width Rear
  1700 MM
- Width Over Bucket
  2300 MM
- Track Width Front
  1880 MM (2WD), 1900 MM (4WD)
Service Capacities
- Fuel Tank
  129 Ltr
- Engine Oil
  9.1 Ltr
- Rear Axle
  17.1 Ltr.
- transmission Oil Capacitysystem
  18 Ltr (2WD), 20 Ltr (4WD)
- Coolant
  20 Ltr.
- Hydraulic oil - System
  107 Ltr
- Hydraulic Oil Replacement
  170/2000 Ltr.Hrs
Axle
- Rear
  CARRARO 28.32M
- Front
  CARRARO 28.32M (2WD)/ CNH PS1300 (4WD)
- front axle Oscillation
  ±21 (2WD), ±16 (4WD)
Brakes
- Brakes service
  Wet Multi Discs, 4 Discs
- Brakes Parking
  Manual with Lever
Tyre
- HD tyre rear optional
  14.0 x 25 – 20 PR
- Standard tyre front
  9.0 x 16 – 16 PR
- standard tyre rear
  16.9 x 28 – 12 PR
Electrical System
- Battery
  12 V, 110 Ah
Travel System
- Forward
  5.7/9.1/19.5/34.9
- Reverse
  7.0/11.2/23.8/NR

CASE 770 FX Brochure

Download the brochure in just one click to view CASE 770 FX price, specs and features of all the variants.

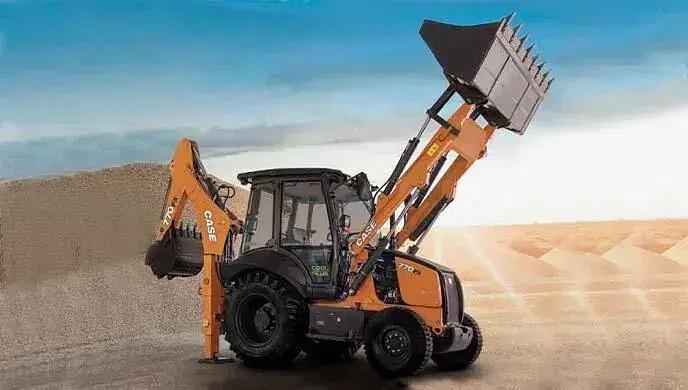

CASE 770 FX images

CASE 770 FX User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

What is the engine power of the CASE 770 FX?
The CASE 770 FX is powered by a 74 HP engine.
What is the lifting capacity of the CASE 770 FX?
The lifting capacity of the CASE 770 FX is 3515 Kg.
How much fuel can the CASE 770 FX hold?
The fuel tank capacity of the CASE 770 FX is 129 Ltr.
What is the price range of the CASE 770 FX in India?
The CASE 770 FX is priced between ₹33 Lakh and ₹38 Lakh in India.
What is the operating weight of the CASE 770 FX?
The operating weight of the CASE 770 FX is 7600 Kg.
What type of tyres does the CASE 770 FX use?
The CASE 770 FX uses 9.0 x 16 – 16 PR front tyres and 16.9 x 28 – 12 PR rear tyres.
What is the hydraulic oil capacity of the CASE 770 FX?
The hydraulic oil capacity of the CASE 770 FX is 107 Ltr.
What is the maximum reach at full height for the CASE 770 FX?
The maximum reach at full height for the CASE 770 FX is 1190 MM.
