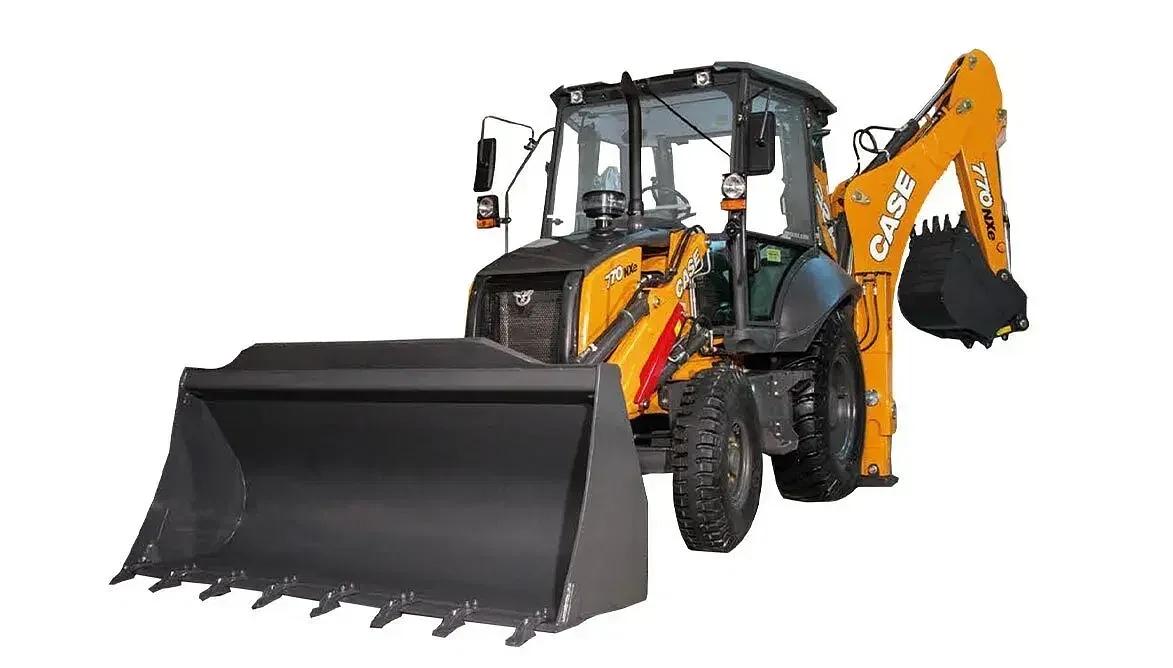

CASE 770NXe

No reviews yet

Write a Review

Discover the CASE 770NXe, a leading backhoe loader in India, renowned for its reliability and low maintenance. It features a powerful 49.5 HP engine with 252.2 NM torque, ensuring superior work output. Its robust design includes a 7610 kg operating weight and a 3425 kg lifting capacity, making it perfect for heavy-duty tasks. With a 129-liter fuel tank and a hydraulic system capacity of 100 liters, the 770NXe promises efficiency and reduced downtime. Priced between ₹28 lakh and ₹30 lakh, this machine is equipped with durable 9x16 front and 16.9x28 rear tires, ensuring stability and safety across challenging terrains.

₹28 - ₹30 Lakh^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of CASE 770NXe

Specifications of CASE 770NXe

General
- Sub Category
  Backhoe Loader
Engine
- Compliant
  BS-III
- Displacement
  3900 cc
- Air Intake Type
  Water Cooled
- Model
  S8000
- Gross Power
  49.5 HP
- Maximum Torque
  252.2 NM
Hydraulic System
- System Relief Pressure
  240 Bar
- System Type
  Open Centre Load Sensing system
- Pump type
  Axial Piston with Electric Displacement Cntrol
- Pump Flow
  119 lpm
Power train
- Transmission make and model
  CARRARO 2WD TLB1
- Powertrain Type
  4F-4R Shuttle Synchromesh Transmission
Steering
- Type
  Power Steering
- System Pressure
  140 Bar
- Unit Displacement
  125 CC
- Turning Circle Diameter Otside Bucket
  4.6 mm
- Turning circle Diameter Outside Bucket Not Braked
  5.55 mm
Loader General Dimension
- Bucket Capacity Std
  1.1 Cum
- Dump Angle
  45 °
- Rollback At Ground
  33 Degree
- Load Over Height
  3300 mm
- Hinge Pin Forward Reach
  240 mm
- Reach At Ground
  1980 mm
- Hinge Pin Height
  3580 mm
- Dump Height
  2720 mm
Backhoe Loader Dimension
- Maxd Dig Depth
  4400 mm
- Bucket Rotation
  185 Degree
- Reach ground level to Swing Center
  5630 mm
- Reach Ground level to rear wheel center
  6950 mm
- Reach at full height to slew center
  2150 mm
- Dipper Configuration
  14 Feet
- Max Working Height
  5490 mm
- Max Load Over Height
  3640 mm
Overall Dimension & Weight
- Transport Length
  5880 mm
- Width Over Stabilizer
  2270 MM
- Track Width Rear
  1700 MM
- Wheelbase
  2180 mm
- Minimum Ground Clearance
  380 mm
- Max Operating Weight
  7610 Kg
- Width Over Bucket
  2280 MM
- Track Width Front
  1880 MM
Service Capacities
- Hydraulic oil - System
  100 Ltr
- Fuel Tank
  129 Ltr
- Rear Axle
  17.1 Ltr.
- Coolant
  20 Ltr.
- Engine Oil
  8.6 Ltr
- Hydraulic Oil Replacement
  48/4000 hr.
- transmission Oil Capacitysystem
  18 Ltr.
Axle
- Rear
  CARRARO 28.32M
- Front
  CNH PS1300 (2WD)
- front axle Oscillation
  ±21 Degree(2WD)
Brakes
- Brakes service
  Hydraulic foot operated, 2 disc per side
- Brakes Parking
  Mechanically actuated caliper type brake pack on rear axle input shaft
Tyre
- Standard tyre front
  9x16 -16PR
- standard tyre rear
  16.9x28 -12PR
- HD tyre rear optional
  14x25- 12PR
Electrical System
- Battery
  12 volts, 110 Ah
Travel System
- Forward
  5.0/7.9/16.9/32.4
- Reverse
  5.9/9.4/19.8/NR

CASE 770NXe Brochure

Download the brochure in just one click to view CASE 770NXe price, specs and features of all the variants.

CASE 770NXe images

CASE 770NXe User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

What is the engine power of the CASE 770NXe?
The CASE 770NXe is powered by an engine that delivers 49.5 HP and 252.2 NM of torque.
What is the operating weight of the CASE 770NXe?
The operating weight of the CASE 770NXe is 7610 kg.
What is the lifting capacity of the CASE 770NXe?
The CASE 770NXe has a lifting capacity of 3425 kg.
How much fuel can the CASE 770NXe tank hold?
The fuel tank of the CASE 770NXe has a capacity of 129 liters.
What type of tires does the CASE 770NXe use?
The CASE 770NXe uses 9x16 -16PR front tires and 16.9x28 -12PR rear tires.
What is the price range of the CASE 770NXe in India?
The CASE 770NXe is priced between ₹28 lakh and ₹30 lakh in India.
What is the hydraulic oil capacity of the CASE 770NXe?
The hydraulic oil capacity of the CASE 770NXe is 100 liters.
What is the maximum reach of the CASE 770NXe at full height?
The CASE 770NXe can reach a maximum height of 1190 mm at full extension.
